KESSEL Staufix SWA

Concrete floor/ slab, 110 mm diameter, tileable

IPS Flow Systems Variant:

Backwater valves for with twin flap locking, for use in concrete slab/ floor or in manhole/ exposed pipe.

Jump to:
+44 (0)191 521 3111 www.ipsflowsystems.com

Application

Anti-flood valve, for installation in concrete slab/floor or in manhole/ exposed pipe.

Description

Backwater valves for with twin flap locking, for use in concrete slab/ floor or in manhole/ exposed pipe.


Features and benefits:

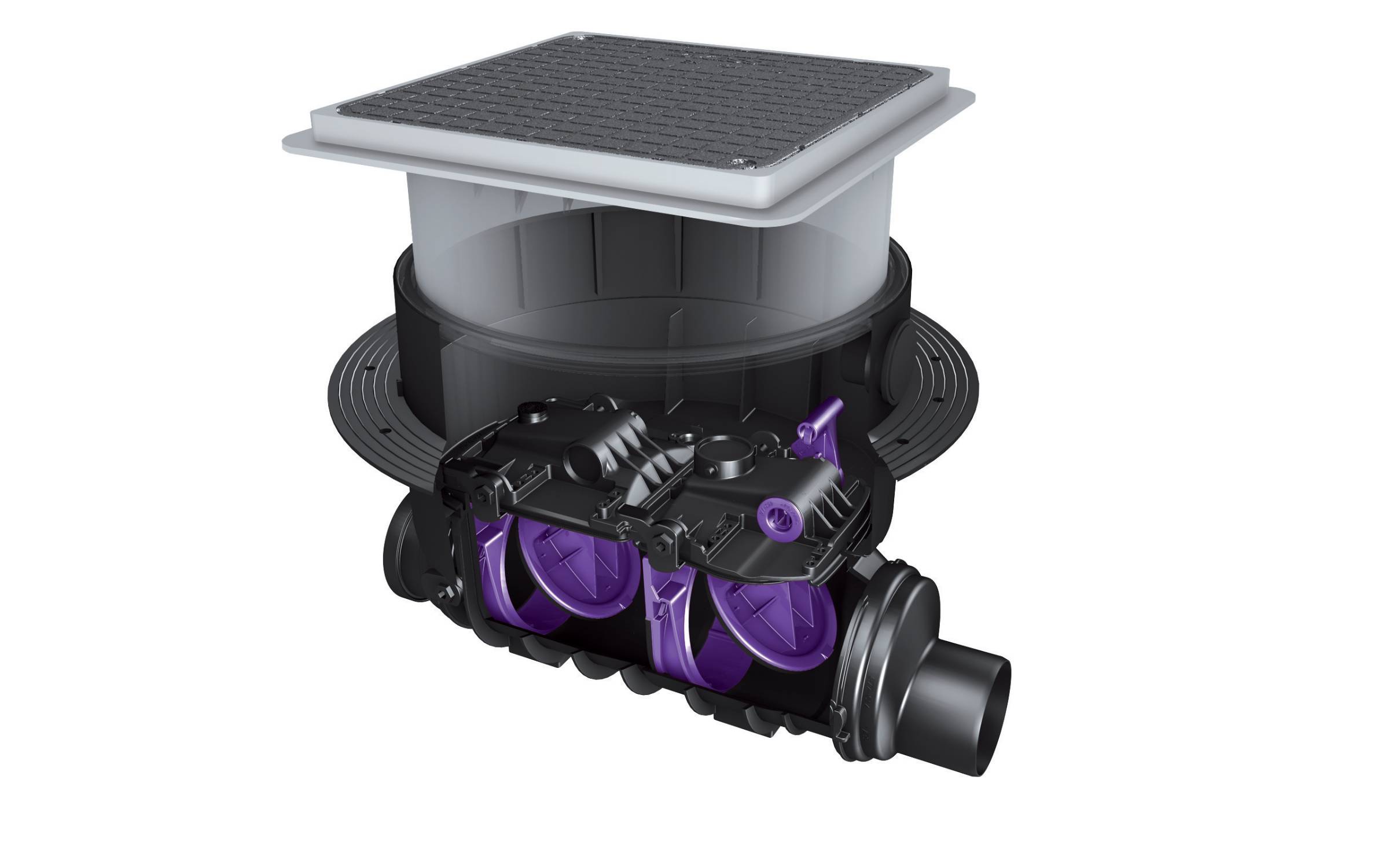

  • Concrete slab/ floor installation: Polymer construction, with surface-water-tight cover plate, class A 15.

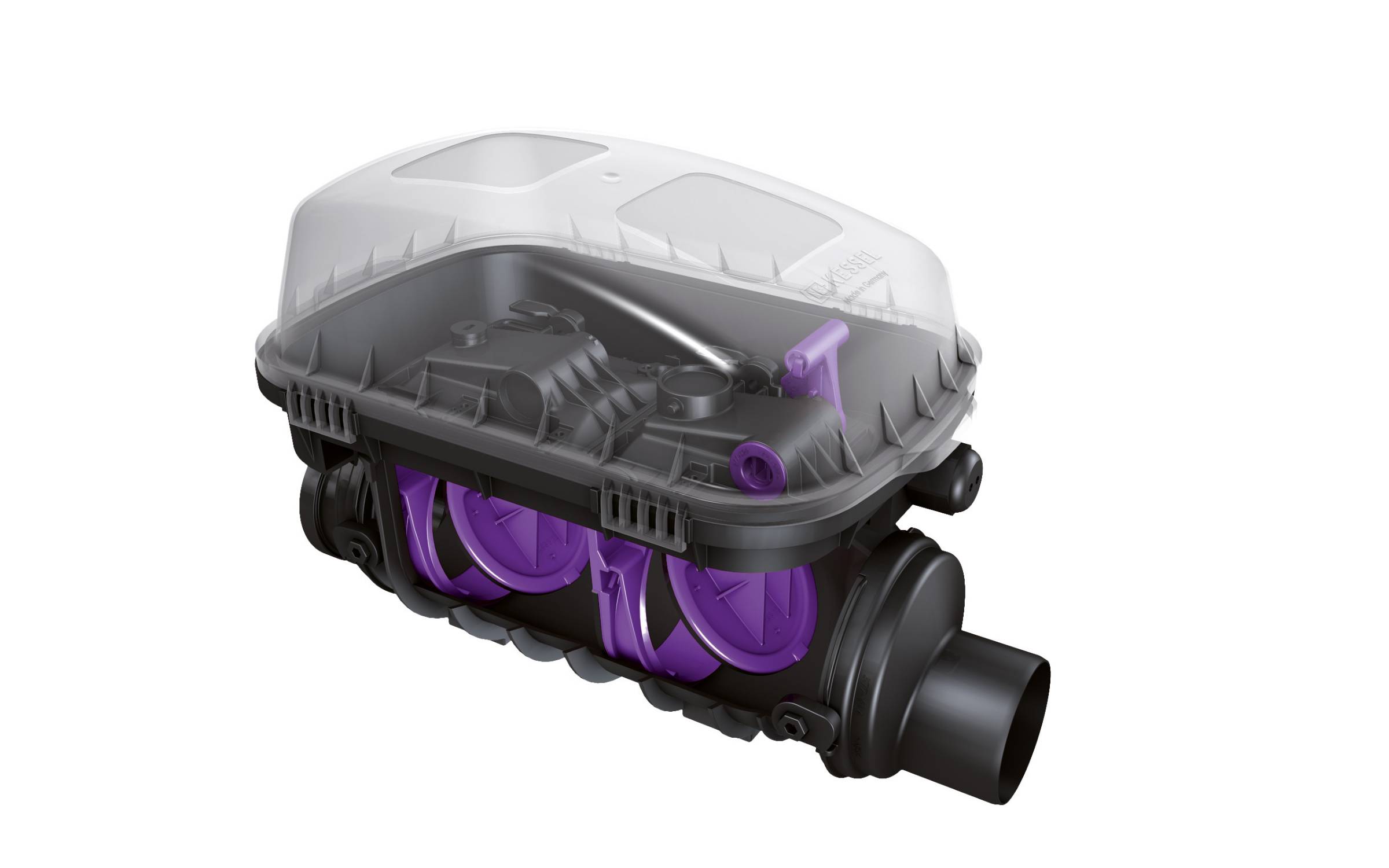

  • Exposed wastewater pipe installation: Polymer construction, with protective cover.
  • Installation kit with choice of cover.
  • Backwater valve according to EN 13564 Type 2, with two self-closing flaps, one of which can be locked by hand as an emergency closure.
  • Telescopic upper section for continuous height- and level-adjustment.
  • Outer diameter 110 or 160 mm.
  • Extension and conversion kits available.
  • Motorized model, Staufix FKA, also available (specified separately).

General information

Color

Black

Material

Polymer

Uniclass

Pr_65_54_24_04 Anti-flood valvesPrimary

CAWS

R11/11 Plastics branch pipework

R12/355 Antiflood valves

Specification data - Anti-flood valves Enhanced data

Standard

To BS EN 13564-1.

Classification

Type 2.

Form

Installation area: 750 x 750 mm.

Installation depth: 486–640 mm.

For installation into concrete slab/ floor, recessed cover for on-site tiling.

73 100.10X

Material

Polymer.

Consult manufacturer for details.

Connections

Outer diameter: 110 mm.

Integral accessories

None.

Extension section with centre flange.

For installation in waterproof concrete.

Includes temporary construction debris cover, fully assembled, gasket set (counter flange made of polymer, screwed, elastomer sealing sheet made of NK/SBR, 800 mm diameter)

Extension (maximum): 360 mm.

Extension section with flange and counter flange.

For connection to an on-site sealing sheet.

Screws included.

Extension (maximum): 140 mm.

Extension section with gasket.

Extension (maximum): 180 mm.

Cover plate with 75 mm diameter drain, for on-site tiling..

For installation in a concrete floor.

Includes gasket and Multistop odour, foam, rodent and insect stop.

Suitable for tile thicknesses of 18 mm.

Cover plate with 75 mm diameter drain, integrated grating.

For installation in a concrete floor.

Includes gasket and Multistop odour, foam, rodent and insect stop.

Cover plate, surface-water tight, for on-site tiling.

For installation in a concrete floor.

Includes gasket.

Suitable for tile thicknesses of 18 mm.

Cover plate, surface-water tight, black.

Multistop hygiene and odour stop.

Odour, foam, rodent and insect stop.

Can only be used with cover plates which the 75 mm diameter drain (see above).

Hair filter.

Can only be used with cover plates which the 75 mm diameter drain (see above).

Conversion kit.

Consult manufacturer for details.

Testing funnel (maintenance).

Includes gasket.

Spigot.

Removable inlets/ outlets, can be mounted in various dimensions.

Socket.

Removable inlets/ outlets, can be mounted in various dimensions.
