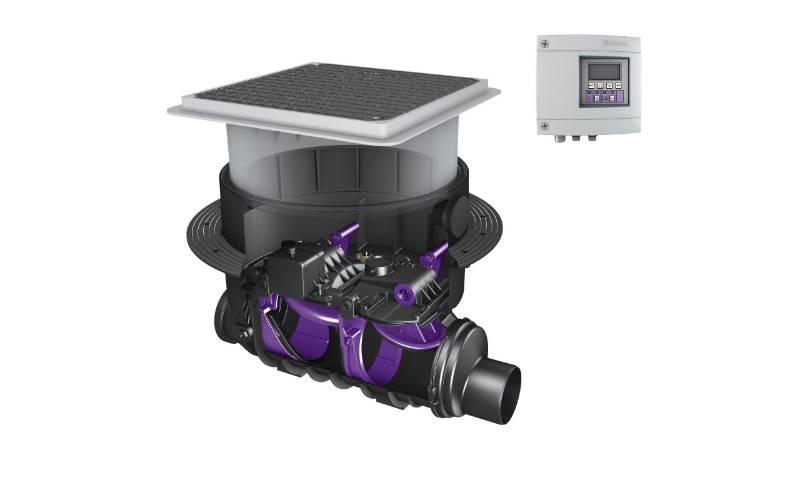

KESSEL Staufix FKA

Concrete floor/ slab, 110 mm diameter, tileable

IPS Flow Systems Variant:

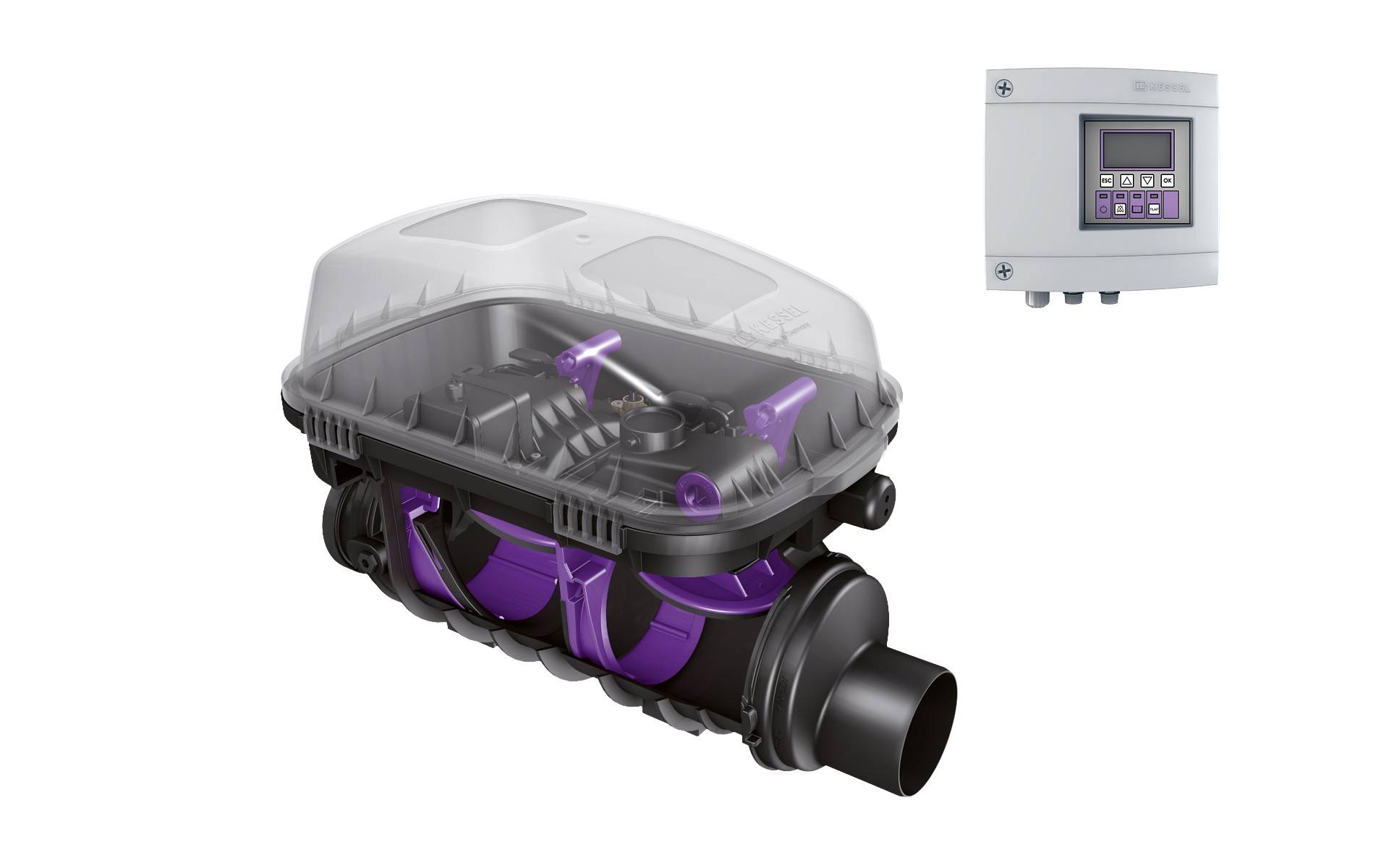

Automatic single flap backwater valves, for use in concrete slab/ floor or in manhole/ exposed pipe.

Jump to:
+44 (0)191 521 3111 www.ipsflowsystems.com

Application

Automatic anti-flood valve, for installation in concrete slab/floor or in manhole/ exposed pipe.

Description

Automatic single flap backwater valves, for use in concrete slab/ floor or in manhole/ exposed pipe.


Features and benefits:

  • Concrete slab/ floor installation: Polymer construction, with surface-water-tight cover plate, class A 15.
  • Exposed wastewater pipe installation: Polymer construction, with protective cover.
  • Installation kit with choice of cover.
  • Backwater valve according to EN 13564 Type 3 with two open flaps.
  • Telescopic upper section for continuous height- and level-adjustment.
  • Outer diameter 110 or 160 mm.
  • Plug-and-play control unit with connection option to building management system (BMS) and alarm. Protection type IP 54, with integrated self-diagnosis system (SDS), display for operating status and battery back-up. Motor is rated protection Type IP 68 (3 m, 24 h). Supply voltage/ frequency: 230 V a.c./50 Hz.
  • Extension and conversion kits available.
  • Gravity model, Staufix SWA, also available (specified separately).

General information

Color

Black

Material

Polymer

Uniclass

Pr_65_54_24_04 Anti-flood valvesPrimary

CAWS

R11/11 Plastics branch pipework

R12/355 Antiflood valves

Specification data - Anti-flood valves Enhanced data

Standard

To BS EN 13564-1.

Classification

Type 3.

Type 3 F.

Form

Installation area: 750 x 750 mm.

Installation depth: 486–640 mm.

For installation into concrete slab/ floor, recessed cover for on-site tiling.

84 100X

Material

Polymer.

Consult manufacturer for details.

Connections

Outer diameter: 110 mm.

Integral accessories

None.

Extension section with centre flange.

For installation in waterproof concrete.

Includes temporary construction debris cover, fully assembled, gasket set (counter flange made of polymer, screwed, elastomer sealing sheet made of NK/SBR, 800 mm diameter)

Extension (maximum): 360 mm.

Extension section with flange and counter flange.

For connection to an on-site sealing sheet.

Screws included.

Extension (maximum): 140 mm.

Extension section with gasket.

Extension (maximum): 180 mm.

Cable extension for motor, 10 m.

Extends standard 5 m cable to total of 15 m.

Can be specified twice for a total cable length of 25 m.

Cable extension for probe, 10 m.

Extends standard 5 m cable to total of 15 m.

Can be specified twice for a total cable length of 25 m.

Cover plate with 75 mm diameter drain, for on-site tiling..

For installation in a concrete floor.

Includes gasket and Multistop odour, foam, rodent and insect stop.

Suitable for tile thicknesses of 18 mm.

Cover plate with 75 mm diameter drain, integrated grating.

For installation in a concrete floor.

Includes gasket and Multistop odour, foam, rodent and insect stop.

Cover plate, surface-water tight, for on-site tiling.

For installation in a concrete floor.

Includes gasket.

Suitable for tile thicknesses of 18 mm.

Cover plate, surface-water tight, black.

Multistop hygiene and odour stop.

Odour, foam, rodent and insect stop.

Can only be used with cover plates which the 75 mm diameter drain (see above).

Hair filter.

Can only be used with cover plates which the 75 mm diameter drain (see above).

Conversion kit.

For motorized backwater valve. Consult manufacturer for details.

Testing funnel (maintenance).

Includes gasket.

Spigot.

Removable inlets/ outlets, can be mounted in various dimensions.

Socket.

Removable inlets/ outlets, can be mounted in various dimensions.

Audible alarm.

For all control units with SDS function, 20 m long cable.

Consult manufacturer for details.

Access code potential-free contact.

For Comfort control units beginning model year 2017.

Consult manufacturer for details.

Rat protection flap.

Compatibility: Staufix FKA from 01/2011 to 2015 (with flap in pendulum position). Consult manufacturer for details.
