KESSEL Pumpfix F Backwater Pumping Station up to 4 L/s
Compare variants

KESSEL Pumpfix F Backwater Pumping Station up to 4 L/s

Concrete floor/ slab, 110 mm diameter, tileable, with drain

IPS Flow Systems Variant:

Backwater valve with automatic single flap with over pumping that pumps back against the backwater. For use in concrete slab/ floor or in manhole/ exposed pipe.

Jump to:
+44 (0)191 521 3111 www.ipsflowsystems.com

Application

Automatic anti-flood valve, for installation in concrete slab/floor or in manhole/ exposed pipe.

Suitable for use with wastewater with or without sewage. Note: without macerator, can be used for continuous operation; consult manufacturer for details.

For applications requiring up to 20 L/s, see KESSEL Ecolift XL.

Description

Backwater valve with automatic single flap with over pumping that pumps back against the backwater. For use in concrete slab/ floor or in manhole/ exposed pipe.


In normal operation, the Pumpfix F allows the wastewater from the building to flow with gravity into the sewage pipe, making it energy-neutral. In the event of backwater, the backwater flap closes automatically and when wastewater arises this is pumped against the backwater

pressure.

The integrated cutting wheel shreds solids meaning the Pumpfix F is also suitable for use wastewater containing sewage.


Features and benefits:

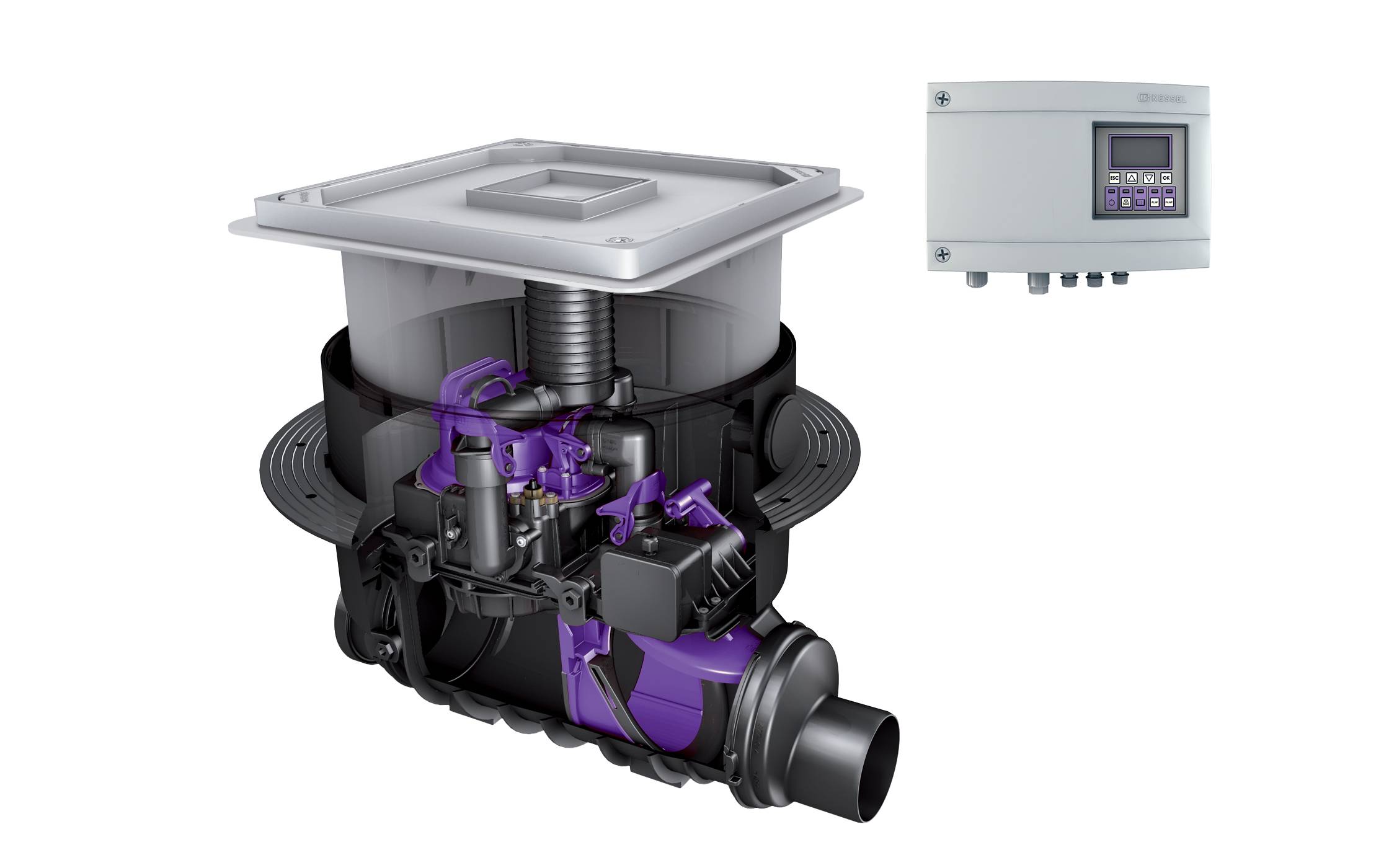

  • Concrete slab/ floor installation: Polymer construction, with surface-water-tight cover plate, class A 15; integrated floor drain.

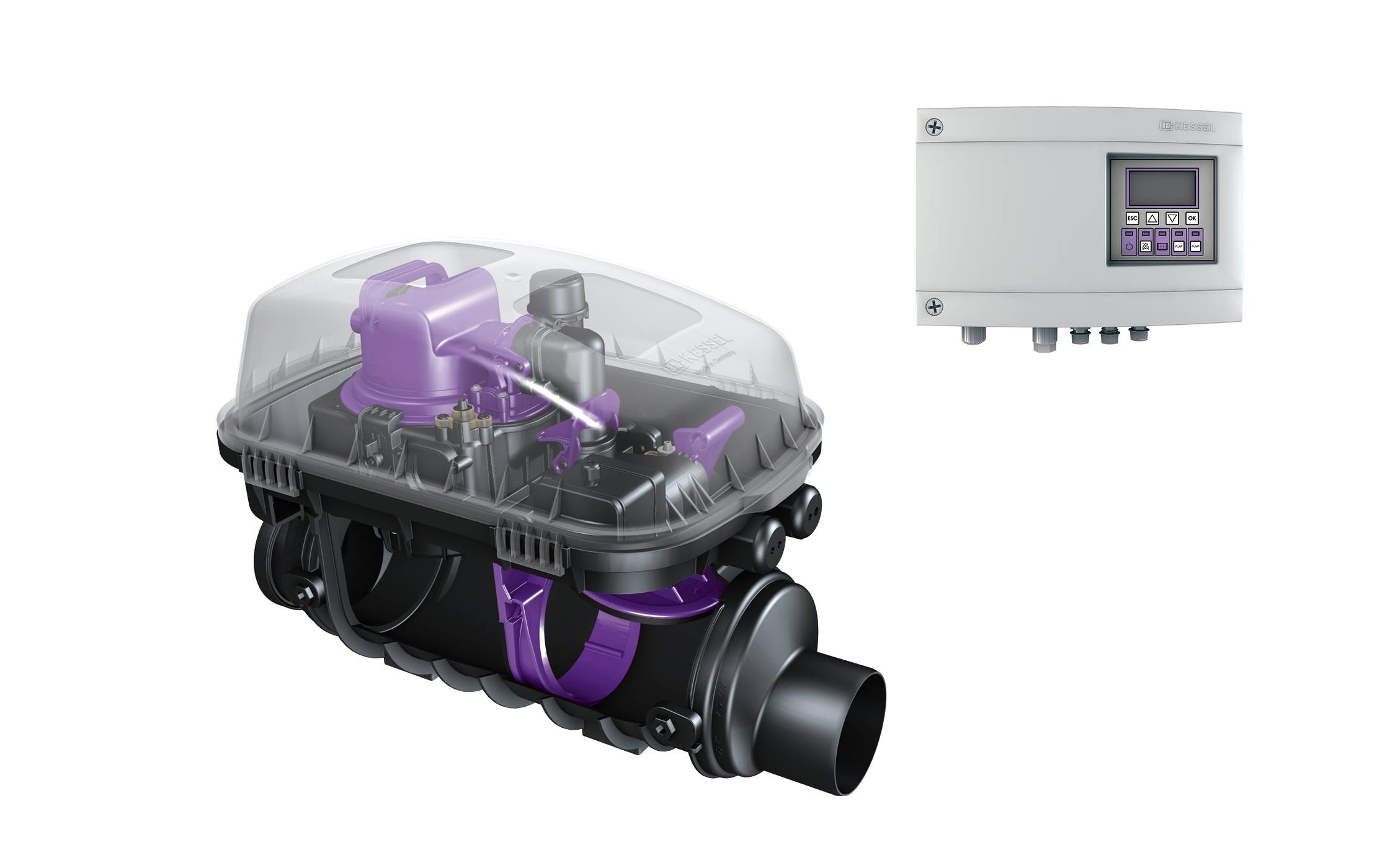

  • Exposed wastewater pipe installation: Polymer construction, with protective cover.
  • Installation kit with choice of cover.
  • Backwater valve according to EN 13564 Type 3 with pump (1 kW/ 230 V).
  • Telescopic upper section for continuous height- and level-adjustment.
  • Outer diameter 110 or 160 mm.
  • Can also drain basement staircases up to 5 m².
  • Plug-and-play control unit with connection option to building management system (BMS) and alarm. Protection type IP 54, with integrated self-diagnosis system (SDS), display for operating status and battery back-up. Motor is rated protection Type IP 68 (3 m, 24 h).
  • Extension sections available (concrete slab/ floor models only).

General information

Color

Black

Material

Polymer

Uniclass

Pr_65_54_24_04 Anti-flood valvesPrimary

CAWS

R12/355 Antiflood valves

Specification data - Anti-flood valves Enhanced data

Standard

To BS EN 13564-1.

Classification

Type 3 with pump.

Form

Installation area: 750 x 750 mm.

Installation depth: 486–640 mm.

For installation into concrete slab/ floor, recessed cover for on-site tiling.

Cover includes drain.

24 100X

Material

Polymer.

Consult manufacturer for details.

Connections

Outer diameter: 110 mm.

Integral accessories

None.

Extension section with centre flange.

For installation in waterproof concrete.

Includes temporary construction debris cover, fully assembled, gasket set (counter flange made of polymer, screwed, elastomer sealing sheet made of NK/SBR, 800 mm diameter)

Extension (maximum): 360 mm.

Extension section with flange and counter flange.

For connection to an on-site sealing sheet.

Screws included.

Extension (maximum): 140 mm.

Extension section with gasket.

Extension (maximum): 180 mm.

Cable extension for motor, 10 m.

Extends standard 5 m cable to total of 15 m.

Can be specified twice for a total cable length of 25 m.

Cable extension for probe, 10 m.

Extends standard 5 m cable to total of 15 m.

Can be specified twice for a total cable length of 25 m.

Cable extension for pump, 10 m.

Extends standard 5 m cable to total of 15 m.

Can be specified twice for a total cable length of 25 m.

Multistop hygiene and odour stop.

Odour, foam, rodent and insect stop,

Hair filter.

Conversion kit.

For motorized backwater valve. Consult manufacturer for details.

Testing funnel (maintenance).

Includes gasket.

Spigot.

Removable inlets/ outlets, can be mounted in various dimensions.

Socket.

Removable inlets/ outlets, can be mounted in various dimensions.

Audible alarm.

For all control units with SDS function, 20 m long cable.

Consult manufacturer for details.

Access code potential-free contact.

For Comfort control units beginning model year 2017.

Consult manufacturer for details.
