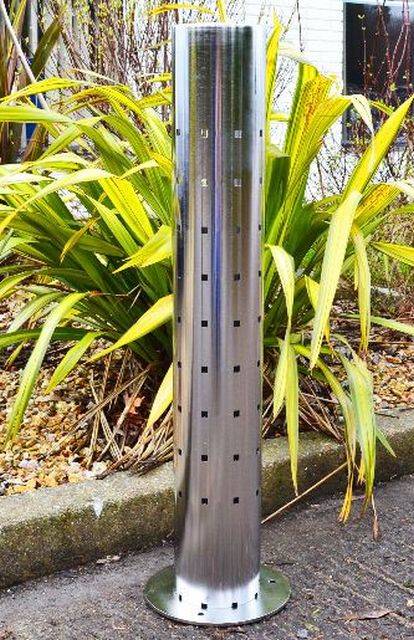

Kent Ventilated Bollard

Application

For use over underground car parks, sub stations and access covers to provide a ventilation solution.

Description

Stainless steel bollard with integrated ventilation perforations.

Features and benefits:

  • Manufactured from stainless steel, grade 316 (1.4401).
  • Offers a decorative ventilation solution with laser-cut ventilation squares, which have a large surface which air can pass through.
  • Can be customized with company logos.
  • Used as an alternative to 'goose neck' pipework.

Applications:

For use over underground car parks, sub stations and access covers to provide a ventilation solution.

General information

Finish

Bead blasted

Bright satin

Electropolished

Satin 320 grit polish

Features

Integrated logo, custom manufactured to match existing street furniture

Material

Stainless steel

Shape

Circular

Size

900 x 141 x 3 mm

Uniclass 2015

Pr_20_76_08_82 Stainless steel bollardsPrimary

CAWS

Q50/190 Bollards

Q50/196 Removable bollards

null Street furniture

Product range

Street Furniture / Bollards

Specification data - Stainless steel bollards

Product Reference

Kent Ventilated Bollard - KVB 141/3

Type

Buried flange

300 mm below ground.

Cast-in

300 mm below ground.

Fold-down

Removable flip

300 mm below ground.

Removable hidden lock socket

300 mm below ground.

Visible flange

Finish

Bead blasted

Bright satin

Electropolished

Satin 320 grit polish

Accessories/ Other requirements

Not required

Logo

Available full colour, laser cut or laser etched. Insert logo details/ drawing.

Standard product features

Material:

Stainless steel, grade 316 (1.4401).

Size:

  • Height (overall): 1200 mm; above ground level: 900 mm.
  • Diameter: 141 mm.
  • Material thickness: 3.05 mm.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit

Revit 2017

1

2.1
Download now from NBS National BIM Library
