Kent Triple Seal Water Tight
Application

Suitable for pharmaceutical factories.

Description

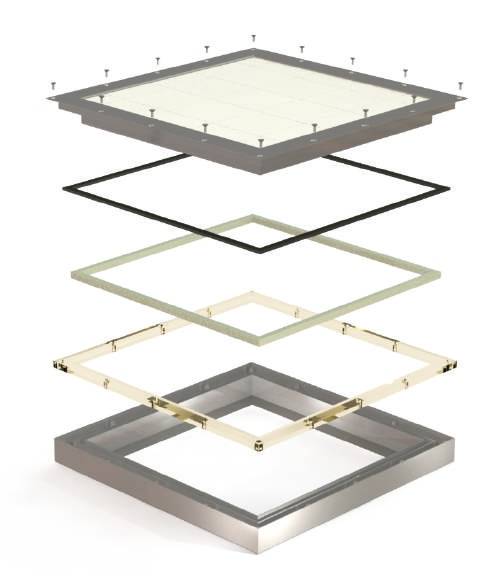

The Kent Triple Seal Water Tight Manhole is both odour and water tight. It contains three seals – a gortex seal, a neoprene seal and a silicone seal.

All three seals make a positive connection and the manhole has locking points surrounding the perimeter to retain this positive seal. The large perimeter band on the frame provides a large visible frame.

Features and benefits:

  • Manufactured from grade (304L) or (316L) stainless steel.
  • Guaranteed water tight.
  • Three standard sizes – but custom sizes are also available.
  • Standard loading: FACTA B – A/B/C/D loadings available.

Applications:

Suitable for pharmaceutical factories.

General information

Size

Bespoke

Consult manufacturer for details and insert requirements.

Manufacturer's standard

Material

304L stainless steel

316L stainless steel

Uniclass 2015

Pr_65_52_01_02 Access covers and framesPrimary

CAWS

P30/301 Access covers/ manhole tops and frames

Specification data - Access covers and frames

Product Reference

Triple Seal Water Tight Manhole

Type

KMHT(W)-300/300

KMHT(W)-450/450

KMHT(W)-600/600

KMHT(W)-750/750

KMHT(W)-900/900

Size

Bespoke

Consult manufacturer for details and insert requirements.

Manufacturer's standard

Loading

FACTA AAA

Light/ medium duty (2.5 tonnes).

FACTA B

Medium duty (5 tonnes).

FACTA C

Medium/ heavy duty (6.5 tonnes).

FACTA D

Heavy duty (11 tonnes).

Material

304L stainless steel

316L stainless steel

Accessories

None

Enclosed fire-rated insulated panel

Standard product features

Clear opening/ reduced opening:

  • KMHT(W)-300/300: 300 x 300 mm.
  • KMHT(W)-450/450: 450 x 450 mm.
  • KMHT(W)-600/600: 600 x 600 mm.
  • KMHT(W)-750/750: 750 x 750 mm.
  • KMHT(W)-900/900: 900 x 900 mm.

Internal tray depth:

80 mm.

Visible frame size (double seal):

  • KMHT(W)-300/300: 555 x 555 mm.
  • KMHT(W)-450/450: 705 x 705 mm.
  • KMHT(W)-600/600: 855 x 855 mm.
  • KMHT(W)-750/750: 1005 x 1005 mm.
  • KMHT(W)-900/900: 1155 x 1155 mm.

Product Options

Loading:

Kent Safety Test (Unfilled):

  • FACTA AAA – 5.2 tonnes.
  • FACTA B – 10.1 tonnes.
  • FACTA C – 13.2 tonnes.
  • FACTA D – 22 tonnes.
