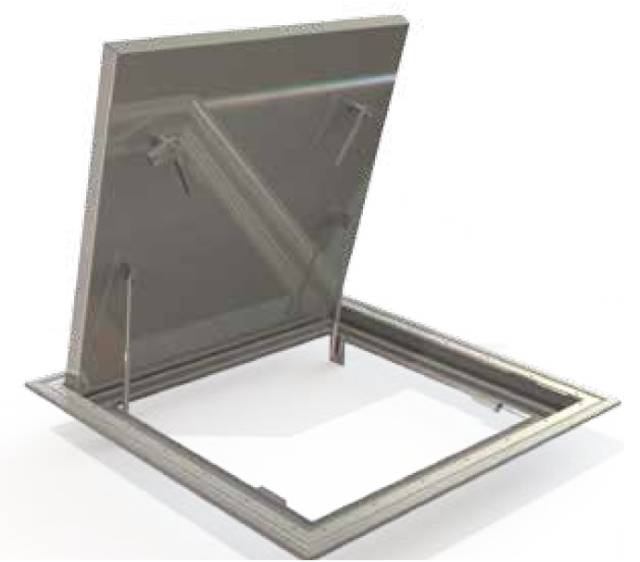

Kent Hinged Vinyl Manhole

Application

Manholes accept FACTA D loadings as standard; applications include:

  • Airports.
  • Rail stations.
  • Stadia.
  • Office blocks.
  • Areas of intense foot traffic.

Description

Internal manhole cover, available as standard in five sizes, and can be fabricated to any dimension.

Designed to be filled with material to match the surrounding floor finish e.g. vinyl, Altro or Mipolam.

Features and benefits:

  • Manufactured from grade 304L or 316L stainless steel.
  • Two lockable lifting points as standard.
  • Utilizes a vinyl clamping perimeter flange.
  • Features gas struts on the smaller sizes and Kent Lift Assist mechanical struts on larger size.
  • Can be supplied with enclosed fire-rated insulated panels on request.
  • Suitable for all areas which have pedestrian traffic, and can be modified to take loading of 20-ton forklifts.

Applications:

Manholes accept FACTA D loadings as standard; applications include:

  • Airports.
  • Rail stations.
  • Stadia.
  • Office blocks.
  • Areas of intense foot traffic.

General information

Size

Bespoke

Consult manufacturer for details and insert requirements.

Manufacturer's standard

Material

1.4307 (304L) stainless steel

Standard.

1.4404 (316L) stainless steel

Uniclass 2015

Pr_65_52_01_02 Access covers and framesPrimary

CAWS

P30/301 Access covers/ manhole tops and frames

Product range

Access Covers

Specification data - Access covers and frames

Product Reference

Kent Hinged Vinyl Manhole

Type

KMHD-300/300VHLA

KMHD-450/450VHLA

KMHD-600/600VHLA

KMHD-750/750VHLA

KMHD-900/900VHLA

Size

Bespoke

Consult manufacturer for details and insert requirements.

Manufacturer's standard

Load class

FACTA A

Pedestrian (0.6 tonnes).

FACTA AA

Very light industrial (1.5 tonnes).

FACTA AAA

Light/ medium duty (2.5 tonnes).

FACTA B

Medium duty (5 tonnes).

FACTA C

Medium/ heavy duty (6.5 tonnes).

FACTA D

Heavy duty (11 tonnes).

Material

1.4307 (304L) stainless steel

Standard.

1.4404 (316L) stainless steel

Seal

Single

Double

Standard.

Triple

Fire panels

Not required

Required

Consult manufacturer for details.

Standard product features

Hinge:

Continuous piano.

Product Options

Clear opening:

  • KMHD-300/300VHLA: 300 x 300 mm.
  • KMHD-450/450VHLA: 450 x 450 mm.
  • KMHD-600/600VHLA: 600 x 600 mm.
  • KMHD-750/750VHLA: 750 x 750 mm.
  • KMHD-900/900VHLA: 900 x 900 mm.

Tray depth:

  • KMHD-300/300VHLA: 50 mm.
  • KMHD-450/450VHLA: 75 mm.
  • KMHD-600/600VHLA: 75 mm.
  • KMHD-750/750VHLA: 75 mm.
  • KMHD-900/900VHLA: 75 mm.

Visible frame size:

- With single seal:

  • KMHD-300/300VHLA: 460 x 475 mm.
  • KMHD-450/450VHLA: 610 x 625 mm.
  • KMHD-600/600VHLA: 760 x 775 mm.
  • KMHD-750/750VHLA: 910 x 925 mm.
  • KMHD-900/900VHLA: 1060 x 1075 mm.

- With double seal:

  • KMHD-300/300VHLA: 550 x 565 mm.
  • KMHD-450/450VHLA: 700 x 715 mm.
  • KMHD-600/600VHLA: 850 x 865 mm.
  • KMHD-750/750VHLA: 1000 x 1015 mm.
  • KMHD-900/900VHLA: 1150 x 1165 mm.

- With triple seal:

  • KMHD-300/300VHLA: 643 x 658 mm.
  • KMHD-450/450VHLA: 793 x 808 mm.
  • KMHD-600/600VHLA: 943 x 958 mm.
  • KMHD-750/750VHLA: 1093 x 1108 mm.
  • KMHD-900/900VHLA: 1243 x 1258 mm.
