Kent Hinged Multi Paver KHMP

Application

Suitable for covering staircases down to tunnels, or for areas where equipment or supplies (spare parts, generators, substations) may need to be lifted in and out relatively frequently. Also suitable for covering tunnels or large underground chambers.

Description

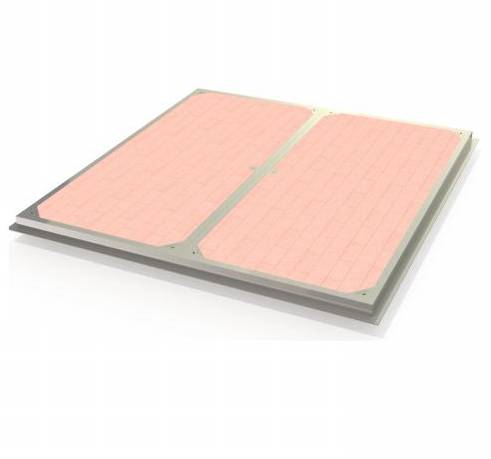

Hinged external manhole cover for block paved areas.

Features and benefits:

  • Manufactured from stainless steel (grade 304L or 316L) or galvanized steel.
  • Laser cut lettering on the lifting corners to indicate services.
  • Incorporates Kent lift-assist mechanical struts. Lift assist automatic watertight option also available.
  • Support system built into the door panels.
  • Hinged with a robust stainless steel hinge, and has a keying in mesh to allow block adhesion with epoxy mortar.
  • Opens to 90°.
  • Safety stay as standard.

Applications:

Suitable for covering staircases down to tunnels, or for areas where equipment or supplies (spare parts, generators, substations) may need to be lifted in and out relatively frequently. Also suitable for covering tunnels or large underground chambers.

General information

Size

Bespoke

Consult manufacturer for details and insert requirements.

Manufacturer's standard

As 'Type' above.

Material

1.4307 (304L) stainless steel

Standard.

1.4404 (316L) stainless steel

Recommended for coastal regions and outdoor areas where de-icing salts are common.

Galvanized carbon steel

To BS EN ISO 1461 (1999).

Uniclass 2015

Pr_65_52_01_02 Access covers and framesPrimary

CAWS

P30/301 Access covers/ manhole tops and frames

Specification data - Access covers and frames

Product Reference

Multi Hinged Paver KHMP

Type

KHMP-1200/1200

Two trays; clear opening: 1200 x 1200 mm.

KHMP-1800/1200

Three trays; clear opening: 1800 x 1200 mm.

KHMP-1800/1800, two trays

Clear opening: 1800 x 1800 mm.

KHMP-1800/1800, four trays

Clear opening: 1800 x 1800 mm.

KHMP-2400/1800

Four trays; clear opening: 2400 x 1800 mm.

KHMP-2400/2400

Four trays; clear opening: 2400 x 2400 mm.

Size

Bespoke

Consult manufacturer for details and insert requirements.

Manufacturer's standard

As 'Type' above.

Load class

BS EN 124 A15

Slow moving wheel load: 0.6 tonnes. Kent safety test (unfilled): 1.5 tonnes.

BS EN 124 B125

Slow moving wheel load: 5 tonnes. Kent safety test (unfilled): 12.5 tonnes.

BS EN 124 C250

Slow moving wheel load: 6.5 tonnes. Kent safety test (unfilled): 25 tonnes.

BS EN 124 D400

Slow moving wheel load: 11 tonnes. Kent safety test (unfilled): 40 tonnes.

FACTA A

Slow moving wheel load: 0.6 tonnes. Kent safety test (unfilled): 0.8 tonnes.

FACTA AA

Slow moving wheel load: 1.5 tonnes. Kent safety test (unfilled): 3.1 tonnes.

FACTA AAA

Slow moving wheel load: 2.5 tonnes. Kent safety test (unfilled): 5.2 tonnes.

FACTA B

Slow moving wheel load: 5 tonnes. Kent safety test (unfilled): 10.1 tonnes.

FACTA C

Slow moving wheel load: 6.5 tonnes. Kent safety test (unfilled): 13.2 tonnes.

FACTA D

Slow moving wheel load: 11 tonnes. Kent safety test (unfilled): 22 tonnes.

Material

1.4307 (304L) stainless steel

Standard.

1.4404 (316L) stainless steel

Recommended for coastal regions and outdoor areas where de-icing salts are common.

Galvanized carbon steel

To BS EN ISO 1461 (1999).

Tray depth

80 mm

Standard.

100 mm

Seal

Required (double sealed)

Not required

Lettering (lifting corners)

Required

Insert requirements.

Not required

Safety barrier

Required

Not required

Safety grid

Required

Can be automatic for larger sizes; consult manufacturer for details.

Not required

Product Options

Visible frame size (unsealed):

  • KHMP-1200/1200: 1320 x 1320 mm.
  • KHMP-1800/1200: 1920 x 1320 mm.
  • KHMP-1800/1800, two/ four: 1920 x 1920 mm.
  • KHMP-2400/1800: 2520 x 1920 mm.
  • KHMP-2400/2400: 2520 x 2520 mm.
