Kensey
Verified by manufacturer 4 months ago

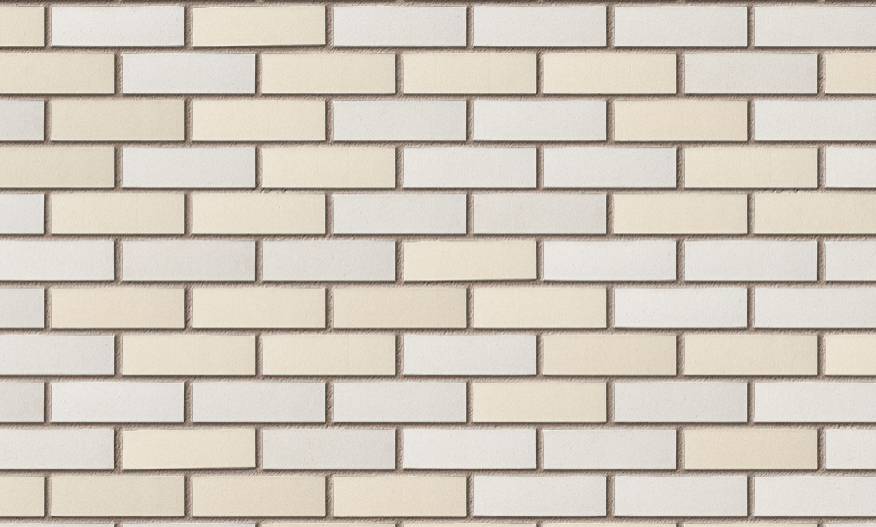

A smooth facing brick.
Description
A smooth facing brick.
Features and benefits:
- Brick pack quantity (520).
- Brick packs supplied shrink-wrapped on pallets (wood).
- Factory: Clerkenwell.
- Wirecut.
General information
Color | Grey |
Finish | Smooth |
Material | Clay |
Shape | Rectangle |
Length | 215 mm |
Width | 102 mm |
Height | 65 mm |
Uniclass | |
CAWS | F10/5 Facing brickwork F10/110 Clay facing brickwork |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Smooth facing brick. |
Work size (length x width x height) | 215 x 102 x 65 mm. |
Tolerances | |
Mean value | T2. |
Range | R2. |
Compressive strength | |
Mean compressive strength (minimum) | 40 N/mm². |
Durability designation | F2. |
Density | |
Gross dry | 1300 kg/m³. |
Net dry | 2200 kg/m³. |
Water absorption | 6%. |
Configuration | Vertically perforated. |
Thermal conductivity | 1.12 W/mk. |
Water vapour permeability | 5/15 µ.Manufacturer guidanceTo BS EN 1745. |
Bond strength | 0.15 N/mm². |
Reaction to fire | Euroclass A1. |
Weight | 2.5 kg. Manufacturer guidanceDry brick weight. |
Active soluble salts | S2. |
Colour | Grey. |
Type | Wirecut. |
Sustainability data
Country of material origin | Spain |
Country of product manufacture | Spain |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
