Kee Line® - Horizontal Lifeline

The Kee Line® horizontal lifeline system is designed to provide safe access to any area of a roof, allowing workers to be permanently attached to the line at all times and move freely around the roof surface.

Features and benefits:

• The system utilises 8 mm grade 316 stainless steel wire.
• Allows spans of up to 12 m between posts and can be utilised by up to three users at any one time.
• Incorporates an inline shock absorber that minimises loads applied to both the user and the building in the event of a fall.
• The design has been configured and tested for use on a variety of roof types, e.g. standing seam, membrane, metal profile, using either "top fix" anchors or a "through fix" anchor (Postanka®) where fixing to the main building structure is preferred. See below for details.
• Available for mounting directly to concrete, steel, brick or stonework in either horizontal or overhead applications.
• Has been tested and conforms to the requirements of EN 795:2012, CEN TS 16415:2013, ANSI Z359, and CSA Z259.
• Kee Line® Configurator software is available.

Types:

• Membrane roofs: Kee Line® provides one of the only upright posts that can be weathered with a standard tube detail.
• Metal sheet roofs: Utilising the same range of brackets as standard roof systems, Kee Line® can be installed quickly and easily on trapezoidal and standing seam roofs.
• Structural roofs: Kee Line® structural posts can be used to tie back directly to the frame of the building. These well-built, heavy-duty anchors can be welded to, wrapped around, or clamped onto underlying beam structures. They can also be mounted directly to concrete.
• Overhead: provides personal protection for up to two users. Lifeline system is mounted directly above the user for tasks including overhead crane access, vehicle loading, machine and building maintenance, cleaning and access.
• Structures: provides the horizontal lifeline components to allow mounting directly to concrete, steel, brick or stonework either in the horizontal or overhead application.

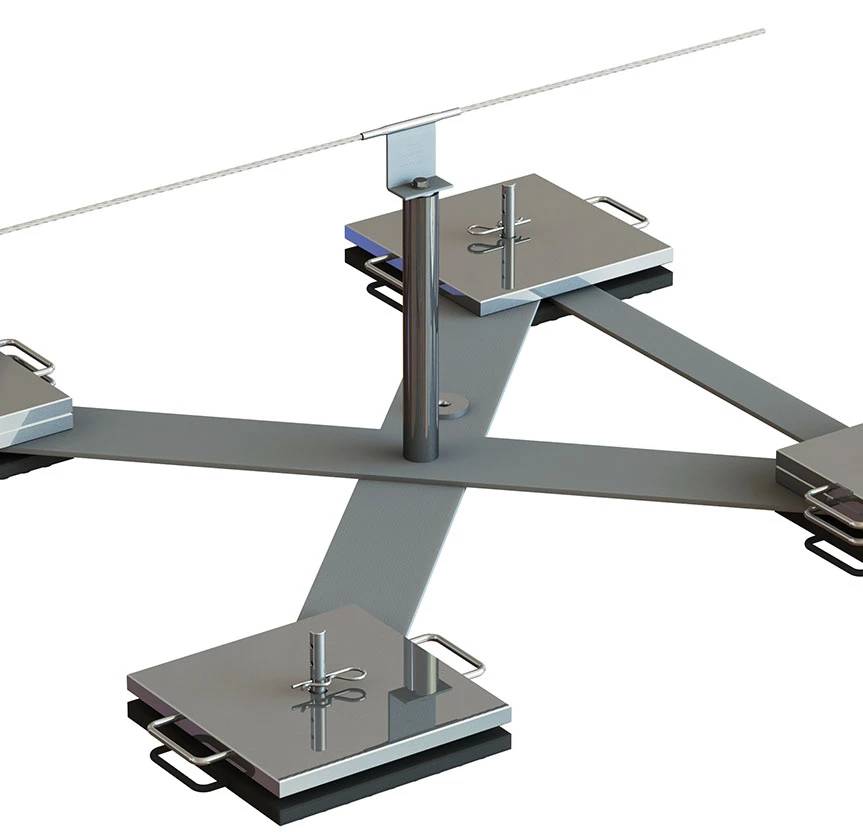

• Non-penetrating (Wireanka): Kee Line® can create a permanent lifeline on a rooftop without the need to penetrate the roof structure. Each of the wire posts is connected to a weighted structure that keeps the user secure in the event of a fall.
