Kee Klamp® Access range
Kee Klamp® Key Clamp Fittings offer a versatile solution for the construction of structures such as handrails, safety barriers and guardrails. Kee Klamp® Key Clamp Fittings, also known as tube clamps,
Primarily used for constructing metal safety barriers, guardrails, and handrails, Kee Klamp components are recognised for their exceptional versatility and modularity. In addition to these core safety applications, Kee Klamp fittings can also be utilised to build a wide range of bespoke structures tailored to specific project requirements.
These include, but are not limited to:
The modular design enables straightforward assembly without the need for welding, allowing rapid installation and flexibility to adapt or extend structures as site conditions or operational needs change. Kee Klamp systems are widely used in industrial, commercial, and public environments where durability, compliance with safety standards, and ease of maintenance are essential.

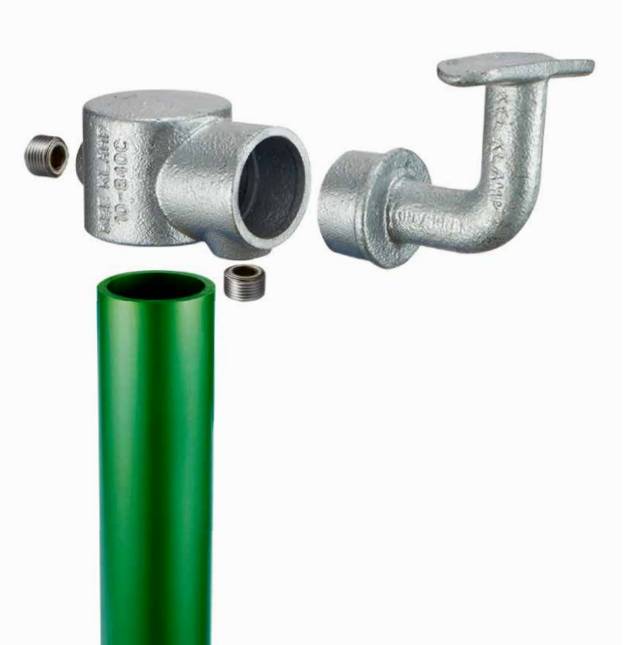

Kee Klamp® is modular, so it can be easily configured and installed precisely to your needs. The guardrail can accommodate toeboards, in-fill panels, or safety gates, while exceeding world-class safety standards, including BS, EN and OSHA compliance. There are no special tools or labour needed to install Kee Klamp® railings. All components are secured with just a hex set-screw. Because of its modular design, the railing can easily be modified by simply cutting it to size. It’s also easy to repair a damaged section by simply removing and replacing it.
Extensive range of steel pipe connections, many of which are available in Kee Lite® aluminium versions.
Kee Klamp® Access is a range of Equalities Act-compliant products that allow for the addition of handrails etc.
Color | Silver Other |
Finish | Galvanized Powder-coated |
Material | Steel Aluminium |
Shape | Other |
Warranty description | One year |
Uniclass | |
CAWS | L30/55 Proprietary balustrades Q41/130 Protective barriers Q41/110 Pedestrian restraint systems in metal Q41/240 Handrail systems L30/70 Proprietary handrails L30/580 Proprietary handrails Q41/135 Proprietary protective barriers L35/170 Guarding system |
Classification data | |
System manufacturer | Kee Safety Ltd. |
Tubes | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. Manufacturer guidanceKee Klamp® uses standard steel tube sizes – ISO 65 and BS EN 10255. Note: tubes are not part of the Kee Klamp® range but are readily available from the manufacturer. |
Joints | Guidance for specification option: Consult manufacturer's literature for options and insert requirements. Many are available in Kee Lite® aluminium versions. Include drawing or schedule reference as required. |
Handrails | Guidance for specification option: Consult manufacturer's literature for options and insert requirements. Include drawing or schedule reference as required. |
Site applied finishes | Not required. Required. Guidance for specification option: Insert requirements. |
Colour/ Finish | Manufacturer's standard. Guidance for specification option: Cast iron to BS EN 1562 /1563 Hot-dip galvanized steel to BS EN 1461. Aluminium: consult manufacturer for details. Powder-coated, colour. Guidance for specification option: Insert colour requirements. Other. Guidance for specification option: Antibacterial coating available; consult manufacturer for details. |
Accessories | Guidance for specification option: Consult manufacturer's literature for options and insert requirements. Options include Kee Gate, toeboards, packer plates, clips, decorative balls, plugs, spigots etc. |
Material | Steel Aluminium |
