Kee Guard® - Roof Top Guardrail Portfolio
Verified by manufacturer 1 day ago
Kee Guard® (standard)
Kee Guard® (standard)
A portfolio of rooftop guardrails providing collective fall protection.
Application
The system is available for different roof types, either for use where a restraining wall, such as a parapet, is in place or where the rooftop is completely open around the perimeter.
Can be used for new constructions as well as for retrofitting older buildings.
Description
A portfolio of rooftop guardrails providing collective fall protection.

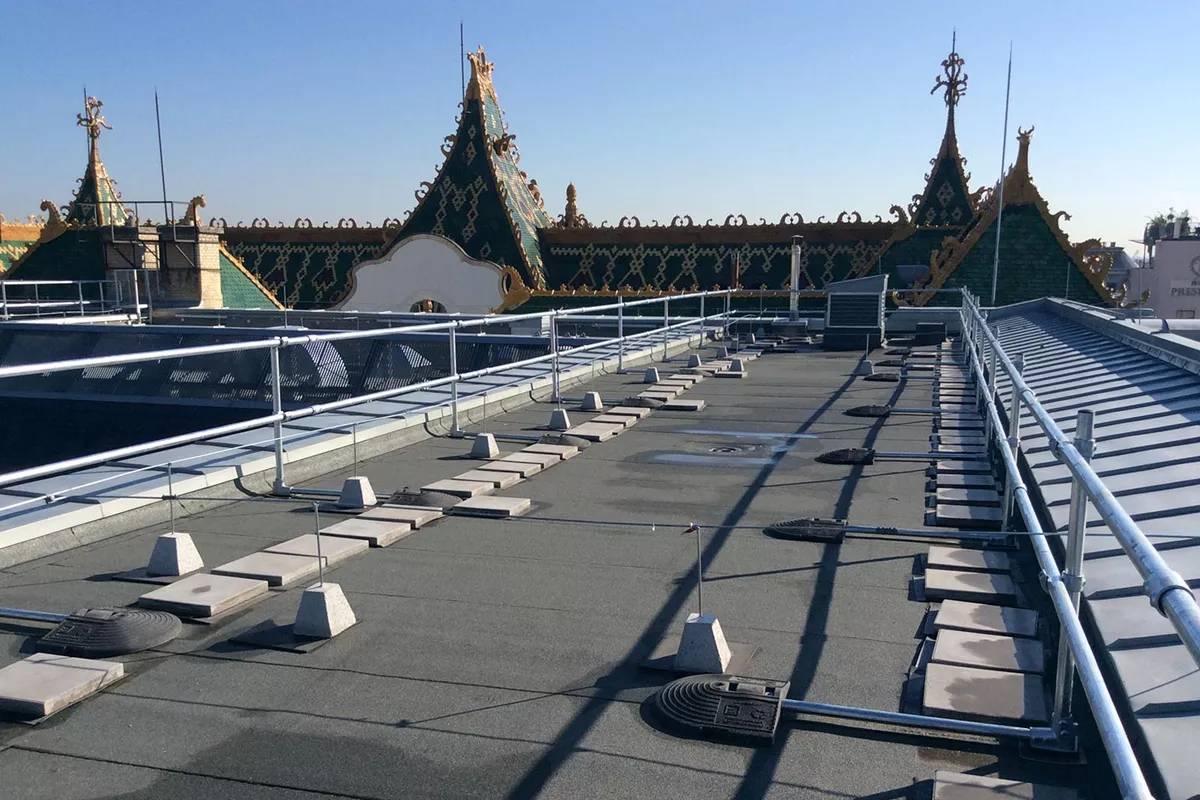

Kee Guard is a rooftop railing system. It has been designed to provide permanent roof edge protection for areas where regular access for maintenance and inspection is required. It is a BS and EN compliant, permanent, and dependable safety barrier for a roof edge, helping you to keep your workforce safe.
Available in multiple formats:
- Kee Guard standard (galvanised steel);
- Kee Guard Foldshield (galvanised steel; foldable);
- Kee Guard Ladder Kit (designed to be used next to ladders);
- Kee Guard Lite (aluminium);
- Kee Guard Lite Topfix (aluminium; for fixing to profiled roofs);
- Kee Guard Topfix (galvanised steel; for fixing to profiled roofs);
- Kee Guard Premium (galvanised steel; does not use counterweights).
General information
Finish | Galvanized Powder-coated |
Material | Aluminium PVC Cast iron Steel |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | 1100 mm |
Warranty description | One year |
Uniclass | |
CAWS | L35/170 Guarding system |
Specification data - Metal pedestrian parapet systems
Classification data | |
System manufacturer | Kee Safety Ltd. |
Preparatory work | To system manufacturer’s recommendations. |
Posts | Guidance for specification option: Consult manufacturer's literature for options and insert requirements, including upright, angled (raked) and radiused assemblies. See also Configuration for drawing/ schedule references etc. |
Post foundations | Not applicable - freestanding with counterweights. |
Base boards | Not required. Toeboards. Guidance for specification option: Consult manufacturer's literature for options and insert requirements; refer to drawing or schedule as required. |
Rails | Guidance for specification option: Consult manufacturer's literature for options and insert requirements; refer to drawing or schedule as required. |
Site applied finishes | Not required. Required. Guidance for specification option: Insert requirements. |
System accessories | None. European gate; galvanized. European gate; powder-coated, yellow. Guidance for specification option: Powder-coated finish to EN 13438. |
Base | PVC-U counterweights with cantilever tubes. Guidance for specification option: Number and placement of counterweights will vary; consult manufacturer's literature and specify details under Configuration below. |
Configuration | Guidance for specification option: Insert requirements; refer to drawing or schedule as required. Consult manufacturer for maximum bay span details, freestanding end requirements etc. |
Rail height | 1100 mm. |
Fixings | To roof surface: not applicable. |
Sustainability data
Contains Red List materials | No |
Material | Aluminium PVC Cast iron Steel |
A1–A3 ('Production stage') | Embodied carbon as defined in BS EN 15804 |
Normalized unit | 1.81 kg CO₂ eq/kg |
Declared unit | 1.81 kg CO₂ eq/kg Self-declared Lower emissions |
Recyclability | 71 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 29 % |
Expected Life | 20 year |
