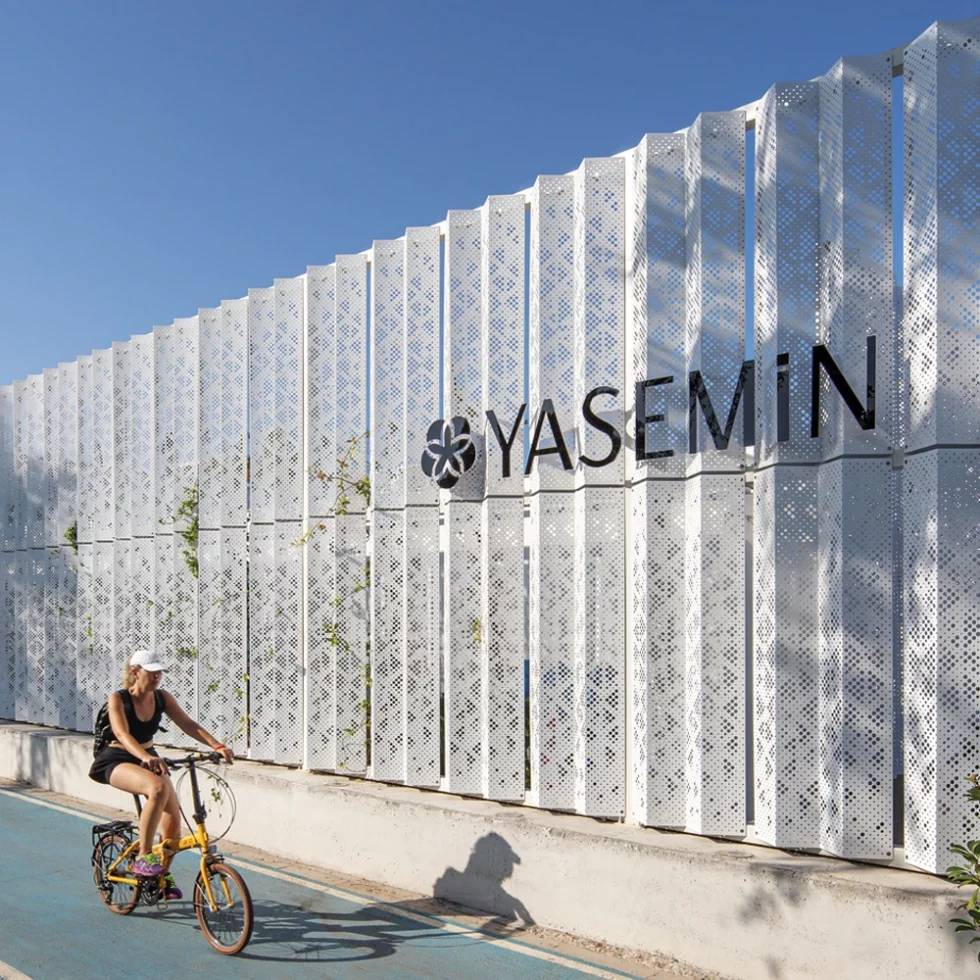

KASSO® Architectural Metal Facades

Verified by manufacturer 2 days ago

Perforated metal

D Facades Variant:

High end, beautifully engineered metal facades.

Jump to:
Request BIM
00447535431977 Website

Application

Architectural metal facades/ cladding.

Description

High end, beautifully engineered metal facades in a range of styles:

  • Perforated metal: customizable options like material choice, thickness, hole diameter, shape, and pitch distance, perforated metal facades can be tailored to create a distinctive look that suits any project. Available in both sheets and coils.
  • Pattern cut metal: Available by the sheet or as a ready to install product solution for interior and exterior applications as architectural metal screens, walls, mashrabiyas, columns, ceiling, railings, dividers. Standard patterns available and any custom pattern or size can be produced to suit project design requirements.
  • 3D Surfaces: Available for aluminium, stainless steel, steel, copper, bronze, brass, and titanium alloys. Dual depth pattern metal surfaces are preferred for high-end finishes and customized designs. Patented forming method offers various kinds of pattern options for bespoke and project-based designs.

Kasso panels are available in a large variety of finishes and materials, which provides designers and architects the freedom to create a diverse range of patterns and designs.

  • Preferences of material choices and surface finishes are mainly based on the visual expectation and the site conditions to determine the final appearance and increase the lifespan and performance of a building.
  • Wide range of material is offered including aluminium, stainless steel, Cor-ten steel, copper to titanium zinc, composite aluminium and can be supplied in many surface options such as powder coating, anodizing, satin, galvanization, pre-aging to fulfil project’s requirement.

General information

Color

Beige

Black

Blue

Bronze

Brown

Show more

Finish

Powder-coated

Anodized

Satin

Galvanized

Varnished

Show more

Material

Aluminium

Brass

Carbon steel

Copper

Cor-Ten

Show more

Shape

Square

Rectangle

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_50_45_22 Decorative screen systemsPrimary
Ss_25_50_45_45 Louvre screen systems

CAWS

L10/54 Louvres

L10/650 Metal louvres

H31/120 Metal profiled sheet self-supporting cladding/ roof covering

Specification data - Decorative screen systems

Classification data

System performance

Guidance for specification option:

Insert requirements.

Cladding units

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Secondary support structure

Q Vent Rainscreen Framing Systems.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Available to specify separately if required.

Primary fasteners

Manufacturer's standard.

Pattern

Standard perforations YC3.0_10.4_10.4.
Standard perforations YC5.0_17.0_10.0.
Standard perforations YC010_26.0_15.0.
Standard perforations YC010_26.0_26.0.
Standard perforations YC010_22.5_13.0.
Embossed YCK030_78.0_37.3.
Embossed YK030.
Embossed K100-100.
Embossed/ perforated YC3.0_10.4_10.4.
Embossed/ perforated YC5.0_17.0_10.0.
Embossed/ perforated YC8.0_20.5_11.9.
Perforated coil RYC3.0_08.7_05.0.
Perforated coil RYC3.0_08.7_08.6.
Perforated coil RYC5.0_13.8_08.0.
Perforated coil RYD5.0_08.5_07.9.
Perforated coil RYD5.0_17.0_17.0.
Perforated coil RYD5.0_13.8_13.8.
Multi-perforated metal (custom).

Guidance for specification option:

Multi-perforated Metal provides a one-of-a kind patterns and appearance. Unique patterns can be created with Multi-perforated Metal Technique - any image can be transferred to the project.

Consult manufacturer for options and insert requirements.

Manufacturer guidance

Consult manufacturer's literature for details.

Profile

Guidance for specification option:

KASSO Panels are available as flat, bended or framed as per project’s requirement. Panelling and structural details can be customized and supplied as ready to install with patented framing systems.

Consult manufacturer for options and insert requirements.

Materials and finishes

Guidance for specification option:

Available in a range of metals and finishes; consult manufacturer for options and insert requirements.

Panel size

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Sustainability data

Material

Aluminium
Brass
Carbon steel
Copper
Cor-Ten
Stainless steel
Steel
Zinc

Literature

KASSO® Expanded Mesh Technical Details - Brochure

KASSO® Expanded Mesh Technical Details - Brochure

KASSO® Perforated Panel - Brochure

KASSO® Perforated Panel - Brochure

KASSO® Architecture & Metal - Brochure (Vol 2)

KASSO® Architecture & Metal - Brochure (Vol 2)

KASSO® Expanded Mesh - Brochure

KASSO® Expanded Mesh - Brochure

KASSO® Architecture & Metal - Brochure (Vol 1)

KASSO® Architecture & Metal - Brochure (Vol 1)

KASSO® Architecture & Metal - Brochure (Vol 3)

KASSO® Architecture & Metal - Brochure (Vol 3)

KASSO® Perforated Technical Details - Brochure

KASSO® Perforated Technical Details - Brochure

KASSO® Architecture & Metal - Brochure (Vol 4)

KASSO® Architecture & Metal - Brochure (Vol 4)
