The Kassel Kerb system has been specifically designed to allow bus drivers to near the kerb without tyre damage to enable the safe and easy boarding of all passengers - particularly the disabled.
Used in over 1,200 cities and towns across the UK and the Continent, Kassel Kerb is, today, Europe’s number one bus docking system and comes in two heights which enable it to cater for non-hydraulic or hydraulic platform buses where the boarding platform can be lowered to ease access. Specifically for use at bus stops and in bus stations to help bus drivers dock close to, and parallel with, the kerb and to aid boarding and alighting for all passengers, particularly the disabled.

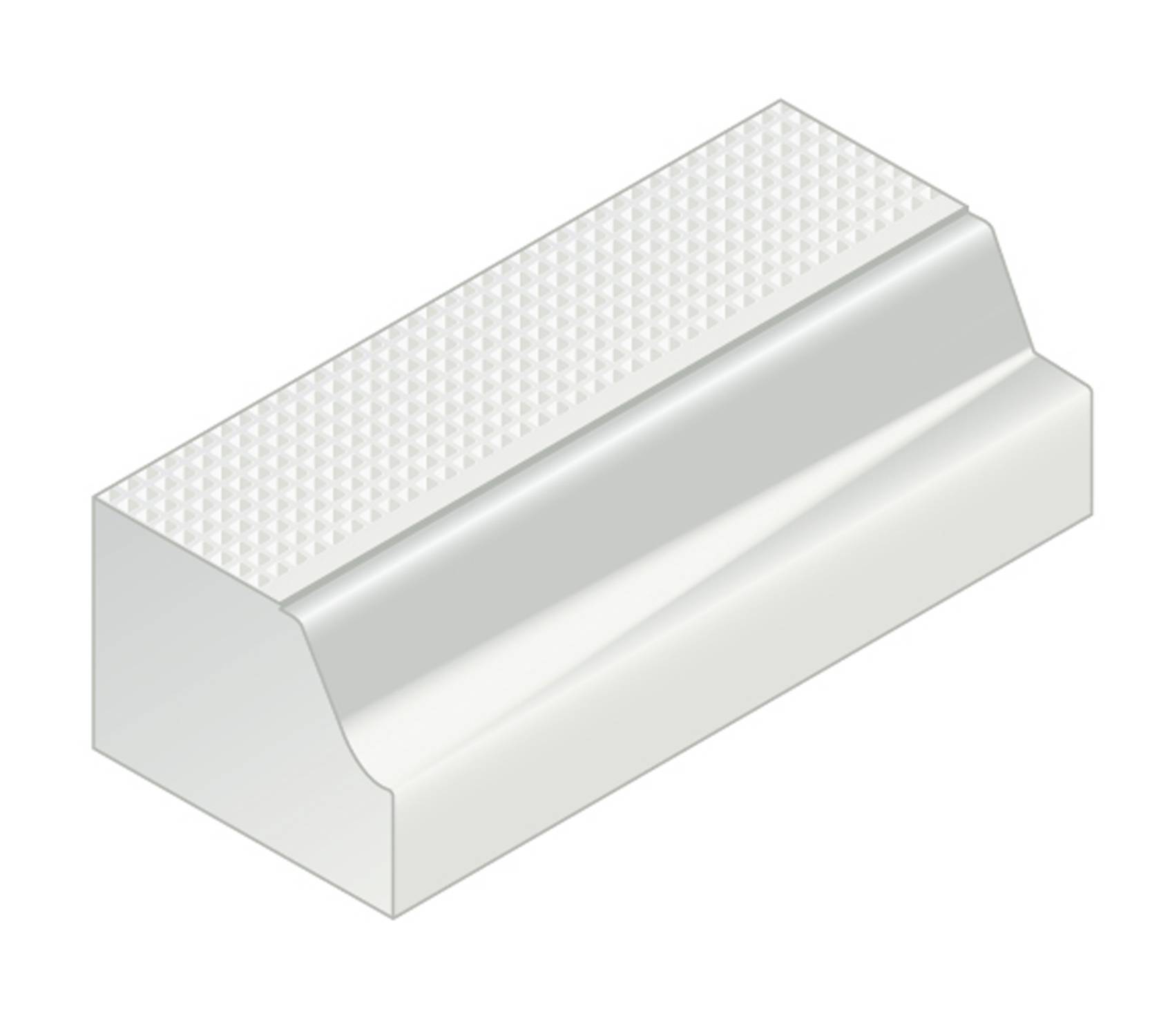

The Kassel Kerb's patented design combines a smooth 75˚ face flowing into a bottom end radius to provide a smooth, curved profile. This serves to produce a self-steering effect allowing the bus to dock with the tyre very close to, or touching, the kerb – but without causing unnecessary tyre wear. This unique design therefore reduces the horizontal gap between kerb and bus platform.
The Kassel Kerb is available in 160 mm and 180 mm versions to work with all types of bus designs and enabling them to reduce the vertical step onto the bus.
The ability to design out the horizontal and vertical gaps between bus platform and pavement is key to enabling quicker, safer access for all users of public transport.
Kassel Kerbs are manufactured in accordance with BS EN 1340: 2003 and have also been judged to conform to DIN 18024-1 'The certification scheme for barrier free designs, building and products'.
The kerb's design ensures that it will not be displaced in service and the extra wide, patterned top surface is an important indicator to users that this is not a standard kerb. CE marked.
Standards:
Brett Landscaping operate a number of independently audited management systems:
Color | Natural |
Features | Permits a maximum 50 mm gap between kerb and bus |
Material | Concrete |
Size | 435 x 314 x 995 mm |
WarrantyDescription | Statutory Rights - Technical Support |
Uniclass 2015 | |
CAWS | Q10/10 Precast concrete Q10/110 Proprietary precast concrete |
Product Reference | Kassel Kerb |
Type | Mechanical lift required for installation |
Sizes | - |
KK160 Profile | KK601000 - 435 mm wide x 314 mm high x 1000 mm longKK60500 - Half length unit, 500 mm longKK60TRH - Right hand transition, 1000 mm longKK60TLH - Left hand transition, 1000 mm longKK60RL1 - Left hand ramp kerb 1, 1000 mm longKK60RL2 - Left hand ramp kerb 2, 1000 mm longKK60RL3 - Left hand ramp kerb 3, 1000 mm longKK60RR1 - Right hand ramp kerb 1, 1000 mm longKK60RR2 - Right hand ramp kerb 2, 1000 mm longKK60RR3 - Right hand ramp kerb 3, 1000 mm longKK60Q45E - 45° External quadrantKK60Q90I - 90° Internal quadrantKK60Q90E - 90° External quadrantKK603ER - 3 m External radiusKK603IR - 3 m Internal radiusKK606ER - 6 m External radiusKK606IR - 6 m Internal radius |
KK180 Profile | KK801000 - 435 mm wide x 334 mm high x 1000 mm longKK80500 - Half length unit, 500 mm longKK80R - Right hand transition, 1000 mm longKK80L - Left hand transition, 1000 mm longKK80RL1 - Left hand ramp kerb 1, 1000 mm longKK80RL2 - Left hand ramp kerb 2, 1000 mm longKK80RL3 - Left hand ramp kerb 3, 1000 mm longKK80RR1 - Right hand ramp kerb 1, 1000 mm longKK80RR2 - Right hand ramp kerb 2, 1000 mm longKK80RR3 - Right hand ramp kerb 3, 1000 mm longKK80Q45E - 45° External quadrantKK80Q90I - 90° Internal quadrantKK80Q90E - 90° External quadrantKK803ER - 3 m External radiusKK803IR - 3 m Internal radiusKK806ER - 6 m External radiusKK806IR - 6 m Internal radiusKKFB - Flat block, 1000 mm long |
Colour | Silver grey granite for architecturally sensitive areasSmooth pre-cast natural grey concrete |
Standard product features | Finish: Smooth finish. |
Platform | Compatible | Version | Certified to |
---|---|---|---|
![]() | IFC2X3 | 5 | 1.3 |
![]() | IFC2X3 | 5 | 1.3 |
![]() | Revit 2016 | 6 | 2.0 |
