Kassel® Slimline Standard Kerb - 180 mm

Kassel® Slimline Standard Kerb - 180 mm

Brett Landscaping

The Slimline Kassel Kerbs are ideally suited for retro-fit applications where the kerb line requires minimum excavation prior to installation. Enables safe and easy boarding of the disabled.

Jump to:
+44 (0)345 6080577 www.brettpaving.co.uk
Description

Used in over 1,200 cities and towns across the UK and the Continent, Kassel Kerb is, today, Europe’s number one bus docking system and comes in two heights which enable it to cater for non-hydraulic or hydraulic platform buses where the boarding platform can be lowered to ease access. Specifically for use at bus stops and in bus stations to help bus drivers dock close to, and parallel with, the kerb and to aid boarding and alighting for all passengers, particularly the disabled.

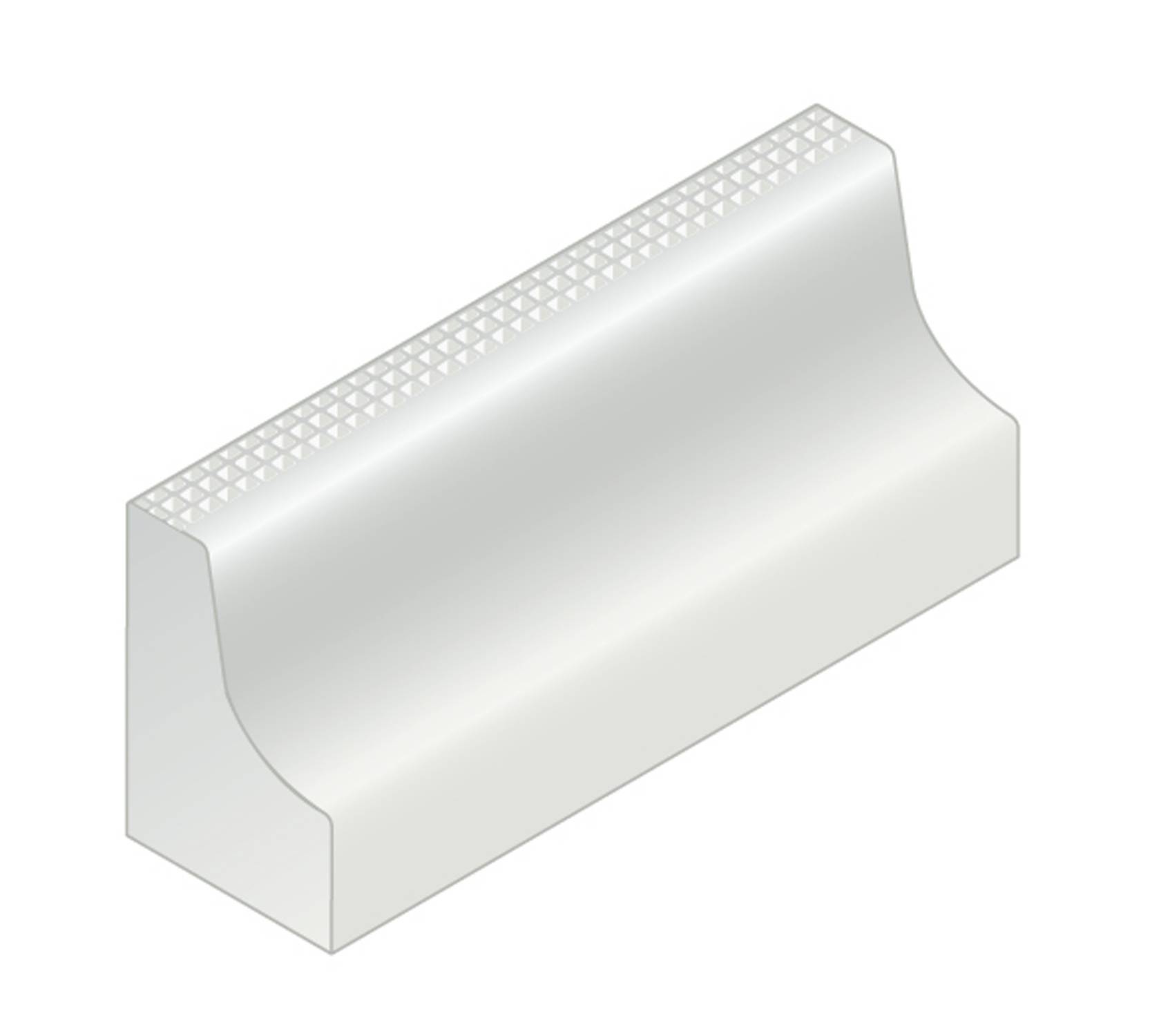

The Slimline Kassel Kerb's patented design combines a smooth 75˚ face flowing into a bottom end radius to provide a smooth, curved profile. This serves to produce a self-steering effect allowing the bus to dock with the tyre very close to, or touching, the kerb – but without causing unnecessary tyre wear. This unique design therefore reduces the horizontal gap between kerb and bus platform.

The Slimline Kassel Kerb is available in 160 mm and 180 mm versions to work with all types of bus designs and enabling them to reduce the vertical step onto the bus.

The ability to design out the horizontal and vertical gaps between bus platform and pavement is key to enabling quicker, safer access for all users of public transport.

Slimline Kassel Kerbs are manufactured in accordance with BS EN 1340: 2003 (CE marked) and have also been judged to conform to DIN 18024-1 'The certification scheme for barrier free designs, building and products'.

The Slimline Kassel Kerb's design ensures that it will not be displaced in service whilst the patterned top surface is an important indicator to users that this is not a standard kerb. This Diamond finish can be extended, if required, using the Brett Diamond Paving which is available in 400 x 200 x 50 mm.

Standards:

Brett Landscaping operate a number of independently audited management systems:

  • BS EN ISO 9001: 2008 Quality Management System
  • BS EN ISO 14001: 2004 Environmental Management System
  • OHSAS 18001: 2007 Health and Safety Management System
  • BES 6001 Responsible Sourcing of Construction Products

General information

Color

Natural

Features

Permits a maximum 50 mm gap between kerb and bus

Material

Concrete

Shape

Rectangular

WarrantyDescription

Statutory Rights - Technical Support

Uniclass 2015

Pr_25_93_45_18 Concrete kerbsPrimary

CAWS

Q10/112 Precast concrete

Specification data - Concrete kerbs

Product Reference

Slimline Kassel Kerb

Type

Mechanical lift required for installation

Size

-

KK160 Profile

KKSL601000 - 235 mm wide x 291 mm high x 1000 mm long

KKSL60TRH - Right hand transition; 1000 mm long

KKSL60TLH - Left hand transition; 1000 mm long

KK180 Profile

KKSL801000 - 241 mm wide x 311 mm high x 1000 mm long

KKSL80TRH - Right hand transition; 1000 mm long

KKSL80TLH - Left hand transition; 1000 mm long

Diamond Paving

400 x 200 x 50 mm

Colour

Silver Grey Granite for architecturally sensitive areas

Smooth pre-cast natural grey concrete

Standard product features

Finish:

Smooth finish.

Digital objects
Platform Compatible Version Certified to
Revit

Revit 2016

6

2.0
IFC

IFC2X3

5

1.3
IFC

IFC2X3

5

1.3
Download now from NBS National BIM Library
