The Slimline Kassel Kerbs are ideally suited for retro-fit applications where the kerb line requires minimum excavation prior to installation. Enables safe and easy boarding of the disabled.
Used in over 1,200 cities and towns across the UK and the Continent, Kassel Kerb is, today, Europe’s number one bus docking system and comes in two heights which enable it to cater for non-hydraulic or hydraulic platform buses where the boarding platform can be lowered to ease access. Specifically for use at bus stops and in bus stations to help bus drivers dock close to, and parallel with, the kerb and to aid boarding and alighting for all passengers, particularly the disabled.

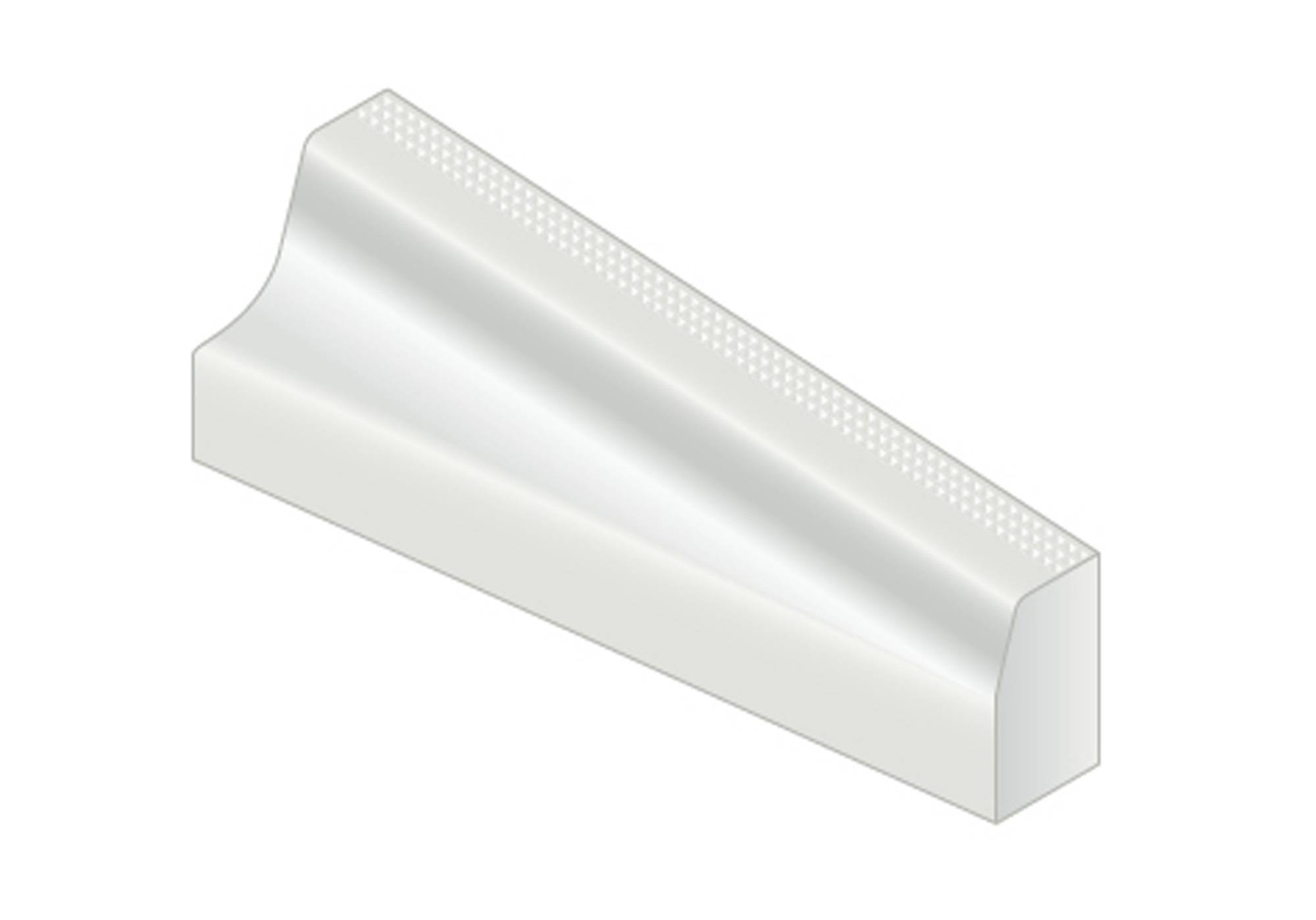

The Slimline Kassel Kerb's patented design combines a smooth 75˚ face flowing into a bottom end radius to provide a smooth, curved profile. This serves to produce a self-steering effect allowing the bus to dock with the tyre very close to, or touching, the kerb – but without causing unnecessary tyre wear. This unique design therefore reduces the horizontal gap between kerb and bus platform.
The Slimline Kassel Kerb is available in 160 mm and 180 mm versions to work with all types of bus designs and enabling them to reduce the vertical step onto the bus.
The ability to design out the horizontal and vertical gaps between bus platform and pavement is key to enabling quicker, safer access for all users of public transport.
Slimline Kassel Kerbs are manufactured in accordance with BS EN 1340: 2003 (CE marked) and have also been judged to conform to DIN 18024-1 'The certification scheme for barrier free designs, building and products'.
The Slimline Kassel Kerb's design ensures that it will not be displaced in service whilst the patterned top surface is an important indicator to users that this is not a standard kerb. This Diamond finish can be extended, if required, using the Brett Diamond Paving which is available in 400 x 200 x 50 mm.
Brett Landscaping operate a number of independently audited management systems:
Permits a maximum 50 mm gap between kerb and bus
Statutory Rights - Technical Support
Q10/112 Precast concrete
Slimline Kassel Kerb
Mechanical lift required for installation
KKSL601000 - 235 mm wide x 291 mm high x 1000 mm long
KKSL60TRH - Right hand transition; 1000 mm long
KKSL60TLH - Left hand transition; 1000 mm long
KKSL801000 - 241 mm wide x 311 mm high x 1000 mm long
KKSL80TRH - Right hand transition; 1000 mm long
KKSL80TLH - Left hand transition; 1000 mm long
400 x 200 x 50 mm
Silver Grey Granite for architecturally sensitive areas
Smooth pre-cast natural grey concrete
Standard product features
Kassel® Slimline Standard Kerb - 160 mm
Kassel® Slimline Standard Kerb - 160 mm right hand
Kassel® Slimline Standard Kerb - 180 mm
Kassel® Slimline Standard Kerb - 180 mm left hand
Kassel® Slimline Standard Kerb - 180 mm right hand
Yorktone BN3 Kerb - 10 m internal radius
Yorktone BN3 Kerb - 6 m external radius
Yorktone BN3 Kerb - 10 m external radius
Yorktone BN3 Kerb - 6 m internal radius
