Junior™ SGL Cubicle System
Verified by manufacturer 2 months ago

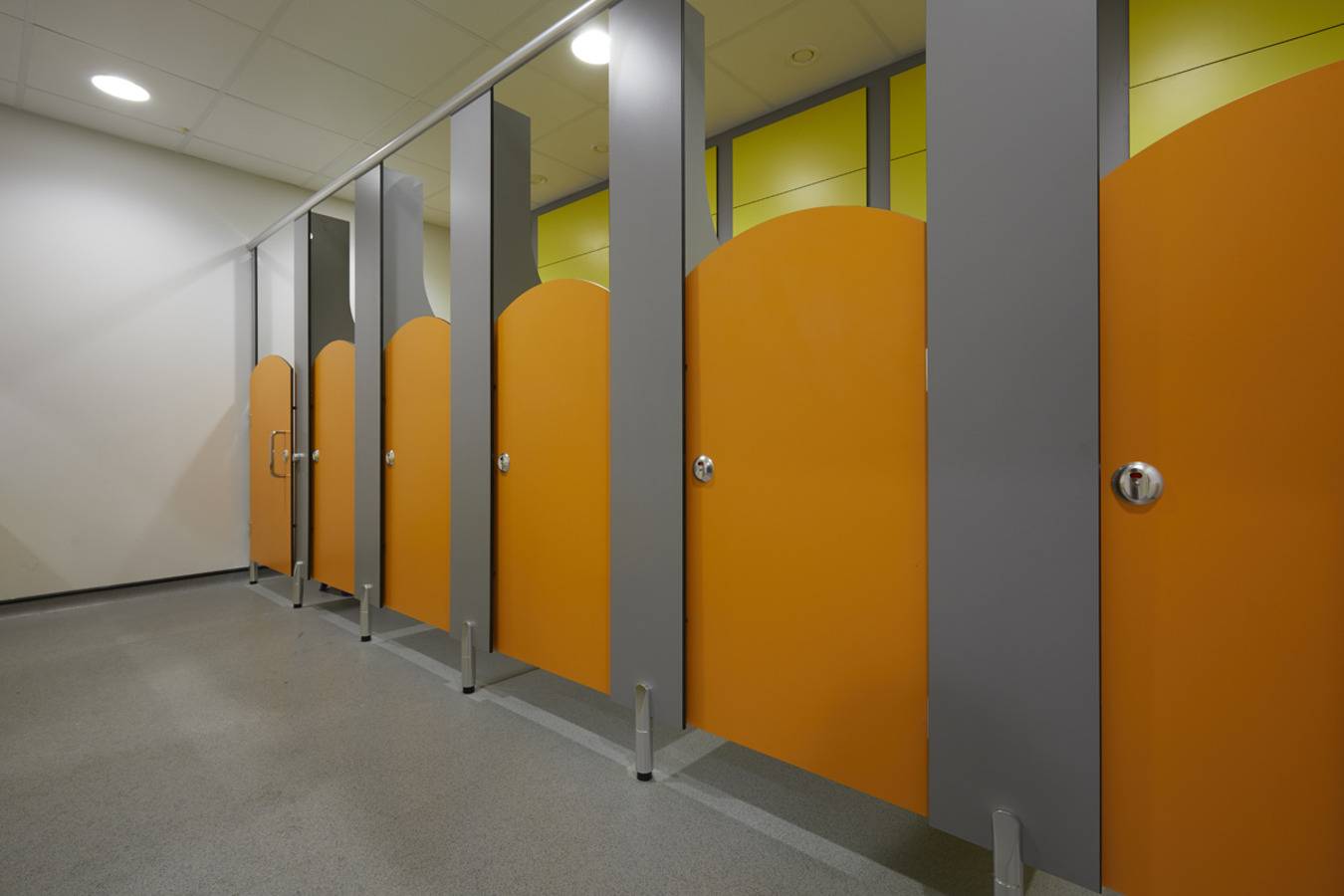

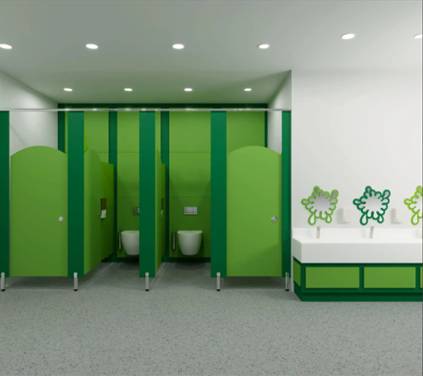

Junior™ is a specialist toilet cubicle system designed for Early Years and Primary Schools.
Application
- Primary schools
- Nurseries
Description
Junior toilet cubicles are a bright, robust and practical range with curved doors and divisions for teacher supervision. Junior is available in various panel height options to suit key stage and privacy requirements.
Junior cubicles are made from durable, wipe-clean, vandal-resistant solid grade laminate (SGL). Safe and hygienic edging shields sharp corners, while aluminium fittings provide strong, lightweight support with smooth surfaces to withstand everyday knocks and bumps.
General information
Color | Beige Black Blue Cream Green Manufacturer guidanceExtensive range available from the Dunhams colour selector. |
Material | Solid grade laminate (SGL) |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | 1200 mm 1350 mm 1500 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | K32/10 Panel cubicles K32/120 Panel cubicles |
Specification data - Panel cubicle systems
Panels | 13 mm solid/compact grade laminate. |
Panel supports | Solid cast aluminium pedestal with floor fixing and height adjustment. |
Pilasters | 13 mm solid/compact grade laminate. |
Doors | 13 mm solid/compact grade laminate. |
Lippings | Profiled radiused and polished edges. |
Hardware | Hinges: Aluminium safety hinges with adjustable rise-fall cams and high-strength bolt-through fixing system. |
System accessories | Not required.Grafix Print door colour.Guidance for specification option: Screen print designs range (extra cost). |
Size: | Manufacturer guidance
|
Colour/ Finish: | Manufacturer guidanceFrom Dunhams Washroom Collection. Insert requirements. |
Fittings | Polished anodized aluminium (PAA). |
Headrail | High strength continuous extruded aluminium ‘D’ section. |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Recyclability | Panels: 0 additional waste during disassembly. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Junior™ cubicle system
Washroom Colour Selector
