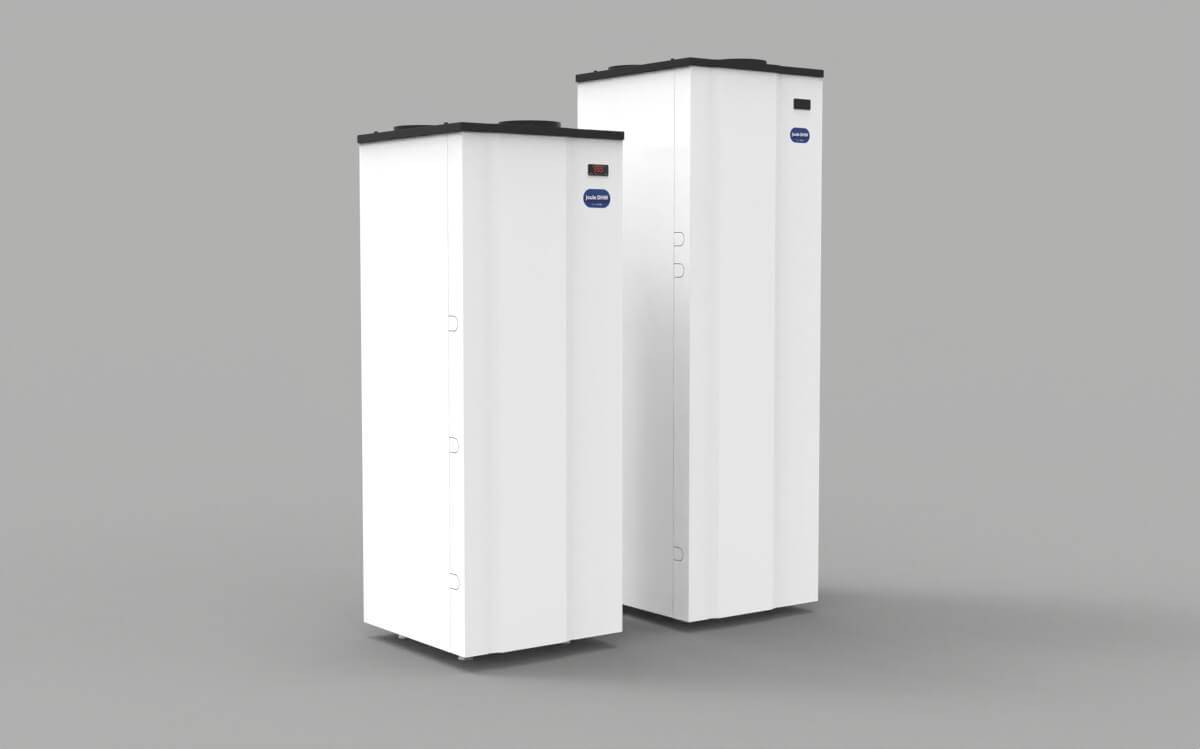

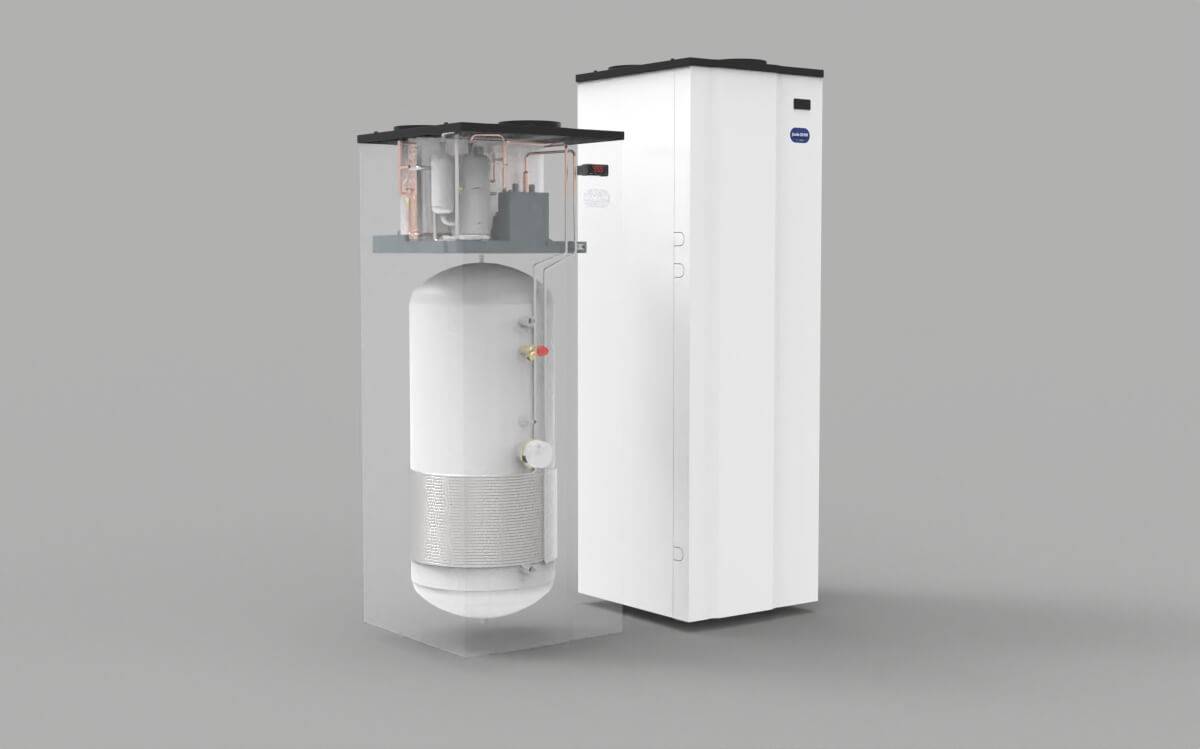

Joule DHW 160 (HHEH-ECOH-H160)
Joule DHW 160 (HHEH-ECOH-H160)
Air source heat pump cylinder providing domestic hot water. Available in 160 L, 200 L and 260 L variants.
Application
- Installed internally to provide domestic hot water.
- Intake and exhaust ventilation passes outside air through a heat pump cycle to provide SCOPS of 3.1 at 14℃.
Description
The Joule DHW Heat Pump Cylinder efficiently provides all domestic hot water (DHW) requirements for a typical dwelling. The Joule DHW range comes in a range of volumes allowing it to suit most property types. Due to the high efficiencies, the cylinder reduces the dwelling emissions in SAP/DEAP making it possible to achieve compliance using electric space heating.
Features and benefits:
- Available in 160 L, 200 L and 260 L volumes.
- 1.9 kW compressor.
- 1.5 kW titanium immersion.
- PV compatible as standard.
- R134a refrigerant.
- Average insulation of 80 mm.
- Compact to suit kitchen cupboard installations.
- Front connections - easily plumbed from left or right.
General information
Color | White |
Finish | Coated |
Material | Steel Stainless steel Copper Aluminium Brass |
Shape | Rectangle |
Length | 624 mm |
Width | 584 mm |
Height | 1375 mm 1605 mm 1860 mm |
Warranty description | Two year |
Uniclass | |
CAWS | T90/505 Air-to-water heat pumps T90/505 Air-to-water heat pumps |
SKU Code | HHEH-ECOH-H160/ HHEH-ECOH-H200/ HHEH-ECOH-H260 |
Specification data - Air-to-water heat pumps
Standards | |
Safety and environmental | To BS EN 378-1 and BS EN 378-2. Guidance for specification option:
|
Test requirements | To EN 16147: 2017. |
Electrical safety | To BS EN 60335-2-40. Guidance for specification option:
|
Heat pump type | Air source. |
Mode | Heating. |
Coefficient of performance (minimum) | 2.8. Manufacturer guidanceSCOP (Seasonal Coefficient of Performance) at 14℃. |
Output | |
Heating | 1.1–1.841 kW. |
Electrical supply type | Single phase. |
Compressor | |
Type | Manufacturer's standard. Guidance for specification option: Factory fitted T&P, 1.9 kW compressor, 1.5 kW titanium immersion. |
Refrigerant | R134a. |
Mains | P+N 230 V ~50 Hz ±6%. |
Fuse rating | 16 A. |
Maximum power usage | 496–600 W (heat pump); 1500 W (DHW Tank Element). Guidance for specification option: Average electrical consumption power heat pump: 496–600 W. Manufacturer guidanceMax. power consumption. |
Ingress protection | IPX2. |
MaximumWorkingPressure | 6 bar. |
SupplyWaterTemperatureHeating | 55/70°C. Manufacturer guidanceMax. water temp. HP/HP+ Immersion. |
Efficiency | A. Manufacturer guidanceEnergy Efficiency Class. |
Load | L. Manufacturer guidanceLoad profile. |
Dimensions | 1375 x 584 x 624 mm. Manufacturer guidanceH x W x D. |
Weight | 55 kg. |
Capacity | 160 L. |
Acceptable relative air humidity | 85%. |
Installation temperature range | 10 to 35℃. |
AirFlowRate | 350 m³/h. |
PressureDrop | 70 Pa. Manufacturer guidanceMaximum. |
Sustainability data
Recyclability | Recycling of materials for all, or parts of the product is possible. However, the refrigerant contents of the product should always be recovered prior to processing. Recycling of the product is best completed through fragmentation where the insulation material goes to energy recovery and metals for recycling. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
