JC881025 Expansion Joint Cover

JC881025 Expansion Joint Cover

Gradus

Expansion joint cover, designed to cover an expansion joint between two floors up to 25 mm wide.

Jump to:
+44 (0)1625 428922 www.gradus.com
Application

For interior retrofit and surface mounted installations on floor-to-floor applications.

Description

Expansion joint cover, designed to cover an expansion joint between two floors up to 25 mm wide.

Features and benefits:

  • Will provide 30% total movement (horizontal).
  • Withstands loads of up to 250 kg.
  • Features bevelled edges and a serrated finish to provide slip-resistance for pedestrian safety.
  • Prevents dirt and debris from falling between the floor coverings.
  • Creates a safe transition for pedestrian and wheeled traffic over differing levelled surfaces.

Applications:

For interior retrofit and surface mounted installations on floor-to-floor applications.

General information

Material

Aluminium, mill finish

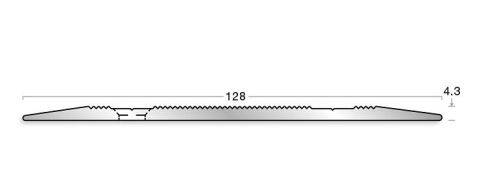

Size

Frame height: 4.3 mm

Width: 128 mm

Length: 3 m

Uniclass 2015

Pr_35_90_31_28 Floor construction joint trimsPrimary

CAWS

M10/476 Metal section movement joints

M13/395 Metal section movement joints

M40/835 Metal section movement joints

M50/70 Edgings and cover strips

M50/740 Edgings and cover strips

M51/510 Edgings and cover strips

Specification data - Floor construction joint trims

Product Reference

JC881025 Expansion Joint Cover

Standard product features

Material:

Aluminium, mill finish.

Size:

  • Frame height: 4.3 mm.
  • Width: 128 mm.
  • Length: 3 m.

Fixing:

8 mm concrete sleeved anchor bolt. Comes pre-drilled with countersunk holes.
