Jamaican Window Canopy - Window Canopy
Verified by manufacturer 4 months ago

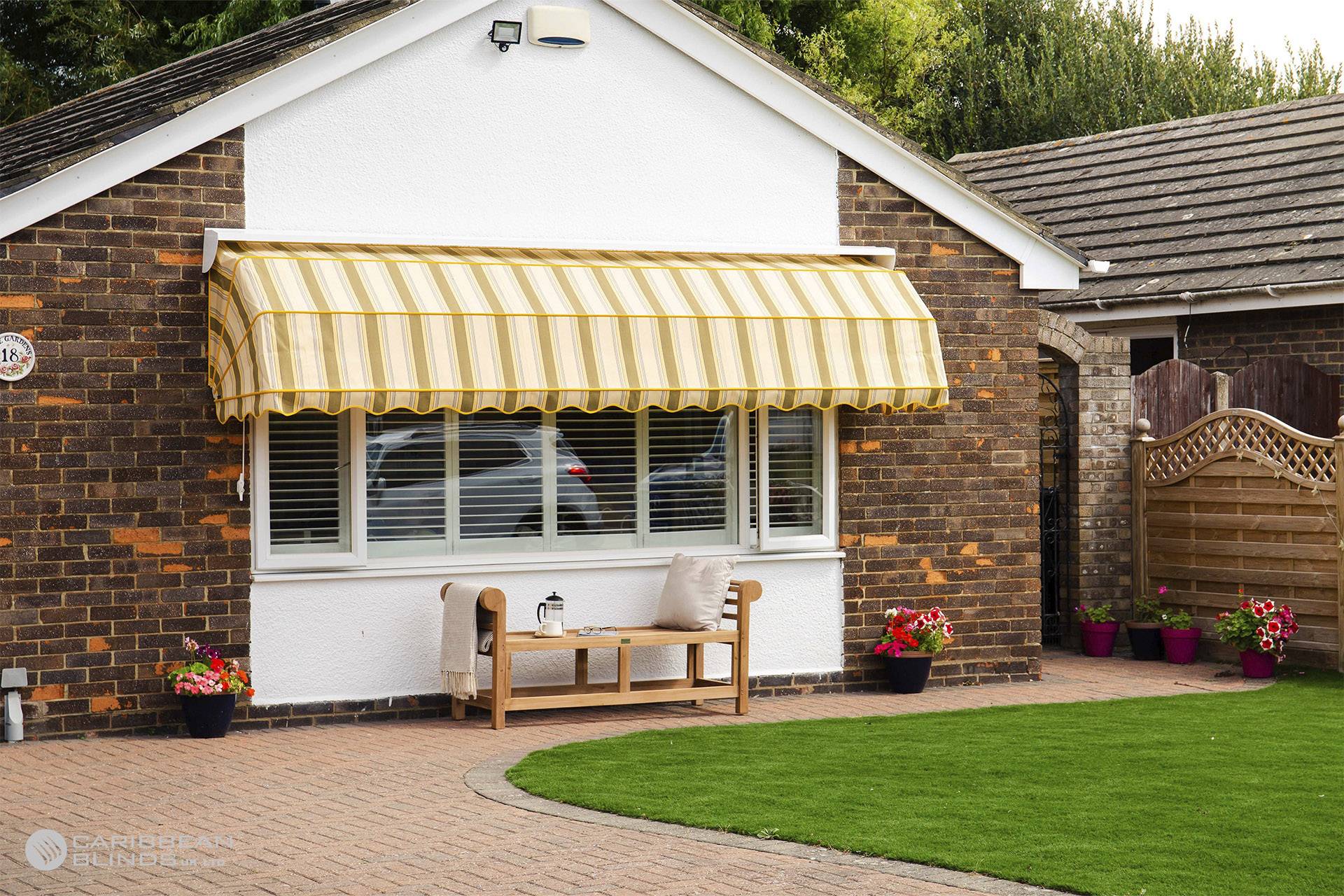

Traditional quadrant shaped canopy for windows and shopfronts.
Application
Suitable for residential and commercial applications, outside over the top of windows and glazed shopfronts.
Description
The Jamaican canopy offers effective shade to windows particularly on shopfronts without blocking the view whilst also adding a new 3d dimension. The lightweight, yet robust alu framework features reinforced corners for rigidity and to withstand strong winds. An optional coverboard offers protection to the fabric when the canopy is retracted.
Features and benefits:
- Streamline framework with reinforced corners.
- 100’s of hardware (RAL) colours and solar control fabrics.
- Manual cord and pulley operation.
- Optional coverboard for added protection.
- Face fix mounting.
- Up to 5m wide x 1.3 m deep/high.
General information
Material | Aluminium Fabric |
Width | Bespoke Guidance for specification option: Up to 5m width |
Height | Bespoke Guidance for specification option: Up to 1.3m height |
Warranty description | Five year |
Uniclass | |
CAWS | L10/59 Solar shading system L10/680 Solar shading system B91/330 Canopy |
Specification data - Awnings
Size (width x depth) | Guidance for specification option: Insert requirements, available up to 5 m wide x 1.3 m depth. |
Frame | |
Format | Retractable.Guidance for specification option: Framework 55 x 15 mm (w x h). |
Material | Powder coated, extruded aluminium. |
Canopy | |
Material | Solution dyed acrylic fabric.Guidance for specification option: World of Sattler collection with TEXgard easy clean coating. |
Colour and pattern | Guidance for specification option: Insert colour code requirement. |
Valance detail | None.Straight.Guidance for specification option: Up to 300 mm. Loose wave.Guidance for specification option: Up to 300 mm. |
Headrail | |
Material | Powder coated, extruded aluminium. |
Colour | White RAL 9016.Custom RAL.Guidance for specification option: Insert colour code requirement. |
Operation | |
Mode | Manual cord and pulley. |
Wind resistance | Beaufort 5 – 24 mph fresh breeze. |
Total solar energy transmission (maximum) | To BS EN 14501. |
Accessories | Not required.Protective coverboard (hood and cheeks). |
Dimensions | 5000 x 1300 mm. Guidance for specification option: w x h. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Aluminium is recyclable |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
CB - Jamaican Blind | General Arrangement & Mounting | Window Canopy
