ISOVER CLIMCOVER Slab Alu2 Standard

ISOVER CLIMCOVER Slab Alu2 Standard

Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

  • BRE Certificate

    BRE Certificate

    Certificate type

Saint-Gobain Insulation UK

Thermal insulation suitable for rectangular metal ductwork.

Jump to:
+44 (0) 1473 822093 insulation-uk.com
Application

  • Insulation of rectangular metal ductwork inside a building.
  • Insulation of rectangular metal ductwork outside a building (with appropriate covering).

Consult manufacturer for installation details.

Description

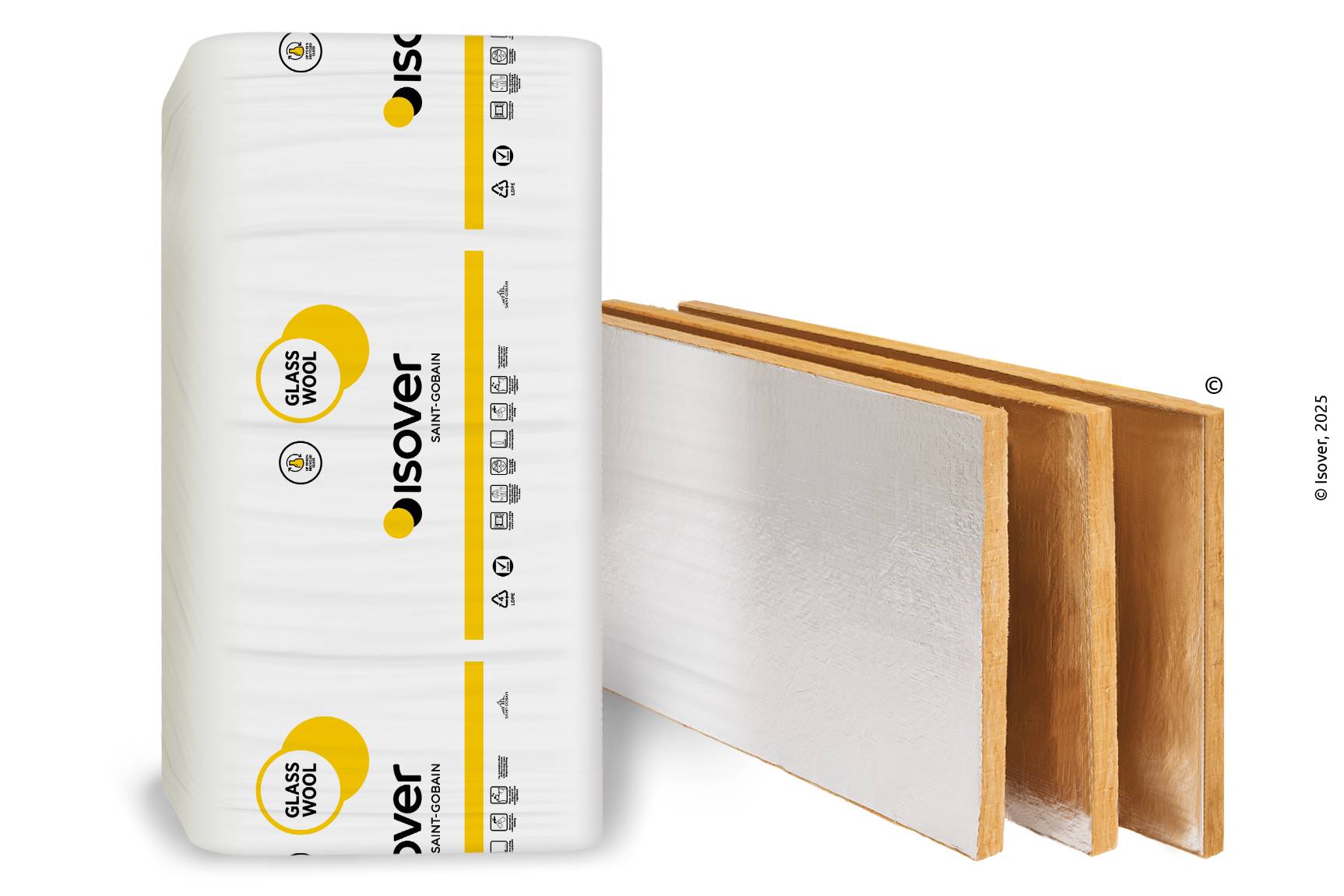

ISOVER CLIMCOVER Slab Alu2 Standard is a robust glass mineral wool slab which provides thermal and acoustic insulation for rectangular metal ductwork. It features a factory applied aluminium foil facing providing an inherent vapour barrier and a professional finish.

With increased mechanical performance, it offers a high quality finish and is suitable for applications inside or outside a building (with appropriate cladding).

Features and benefits:

  • 1200 x 600 mm glass mineral wool slab with an aluminium foil facing.
  • Supplied in 40–50 mm thicknesses.
  • Manufactured from up to 75% recycled glass.
  • Achieves an A+ generic rating within the BRE Global Green Guide.
  • Helps to meet thermal building regulations and offers energy savings by protecting the installation from external thermal variation.
  • Increased mechanical performance – suitable for insulation of ductwork both inside and outside a building (with appropriate covering).
  • Noise levels from ducts can be reduced due to the inherent acoustic properties of CLIMCOVER, improving the comfort of those living or working within the building.
  • A factory applied aluminium foil facing provides an inherent vapour barrier and a professional finish.
  • Ease of install - lightweight and offers a combination of flexibility and mechanical strength, allowing fast and efficient fitting.
  • The lightweight slabs have a uniform shape and consistent thickness that makes them easy to handle and install on rectangular ductwork, allowing a professional finish.
  • The slabs are designed to withstand site conditions, storage and transportation.

Application:

  • Insulation of rectangular metal ductwork inside a building.
  • Insulation of rectangular metal ductwork outside a building (with appropriate covering).

Consult manufacturer for installation details.

General information

Uniclass 2015

Pr_80_77_76_53 Mineral wool duct slab insulationPrimary

CAWS

U90/490 Site-applied insulation to ductwork

U90/58 Site-applied insulation to ductwork

Specification data - Mineral wool duct slab insulation

Product Reference

ISOVER CLIMCOVER Slab Alu2 Standard

Thickness

40 mm

50 mm

Standard product features

Fire:

Euroclass A2 s1, d0 Reaction to Fire classification, according to BS EN 13501-1.

Declared thermal conductivity:

  • 0.032 W/m.K at 10°C mean temperature.
  • 0.036 W/m.K at 40°C mean temperature..
  • 0.038 W/m.K at 50°C mean temperature.
  • 0.045 W/m.K at 100°C mean temperature.
  • 0.049 W/m.K at 120°C mean temperature.

Service temperature:

Suitable for continuous service temperatures from 5°C to 150°C. The temperature on the aluminium facing should not exceed 80°C. For applications over 150°C, please contact our Technical Support Centre. When using the product for the insulation of ductwork with a surface temperature below dew point, care must be taken to ensure a 100% vapour barrier is maintained.

Environmental:

  • Manufactured under Environmental Management System - ISO 14001.
  • Zero Ozone Depletion Potential (ODP) and Global Warming Potential (GWP) <5.
  • The manufacturing process does not use or contain CFCs, HCFCs or other damaging gases.
  • “BES 6001 Rating “Good” - The Framework Standard for Responsible Sourcing.

Quality:

Manufactured under Quality Management System - ISO 9001.

Building regulations:

Helps to meet thermal building regulations. Compliance with the following:

  • England, Wales and Scotland: BS 5422: 2009 or TIMSA Guidance for Achieving Compliance with Part L of the Building regulations.
  • For Scotland, also refer to Technical Handbooks; Domestic Handbook 2010 and Non-Domestic Handbook 2010 Sections 6 – Energy.

BREEAM:

ISOVER CLIMCOVER Slab Alu2 Standard corresponds to the BRE Global Green Guide online generic specification for glass wool insulation ref 815320004 which achieves a summary rating of A+ within Domestic, Health, Industrial, Commercial, Retail, Education.

Recycled content:

ISOVER CLIMCOVER Slab Alu2 Standard is manufactured from up to 75% recycled glass.

Handling, storage, health and safety:

Information regarding storage, installation and handling of ISOVER products, or health & safety information, can be found on the manufacturer's website.

Environmental information

Recycled content

ISOVER CLIMCOVER Slab Alu2 Standard is manufactured from up to 75% recycled glass

Third party certifications
