ISOVER CLIMCOVER CR Alu2
Application

  • Insulation of circular metal ductwork inside a building.
  • Insulation of circular metal ductwork outside a building (with appropriate covering).
  • Insulation of tanks and large diameter pipes.

Consult manufacturer for installation details.

Description

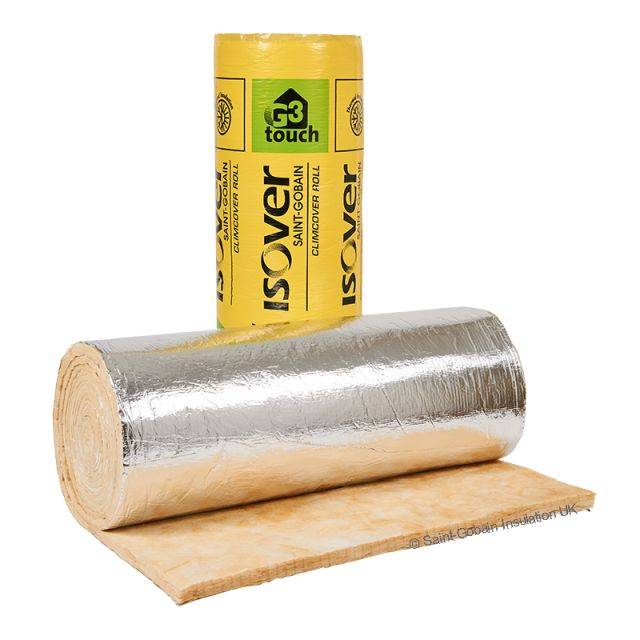

ISOVER CLIMCOVER CR ALU2 is a flexible glass mineral wool roll designed to provide thermal and acoustic insulation for ductwork, tanks and large diameter pipes. The increased mechanical resistance makes it suitable for use at all levels, inside or outside a building with suitable covering. It features a factory applied aluminium foil facing, providing an inherent vapour barrier and a professional finish.

Features and benefits:

  • 1200 mm wide glass mineral wool roll with an aluminium foil facing.
  • Manufactured from up to 58% recycled glass.
  • Achieves an A+ generic rating within the BRE Global Green Guide.
  • ISOVER CLIMCOVER CR Alu2 helps to meet thermal building regulations and offers energy savings by protecting the installation from external thermal variation.
  • Acoustic performance - Noise levels from ducts can be greatly reduced due to the inherent acoustic properties of CLIMCOVER, improving the comfort of those within the building.
  • Factory applied aluminium foil facing provides an inherent vapour barrier and a professional finish.
  • Increased mechanical resistance of CLIMCOVER CR Alu2 makes it suitable for use at all levels, inside or outside a building (with suitable covering).
  • Ease of install – lightweight and offers a combination of flexibility and mechanical strength, allowing fast and efficient cutting and fitting. Offers consistent thickness recovery and a uniform shape with no soft edges, to obtain a neat and professional finish.
  • The range is designed to withstand site conditions, storage and transportation.

Application:

  • Insulation of circular metal ductwork inside a building.
  • Insulation of circular metal ductwork outside a building (with appropriate covering).
  • Insulation of tanks and large diameter pipes.

Consult manufacturer for installation details.

General information

Uniclass 2015

Pr_80_77_76_53 Mineral wool duct slab insulationPrimary

CAWS

U90/490 Site-applied insulation to ductwork

U90/58 Site-applied insulation to ductwork

Specification data - Mineral wool duct slab insulation

Product Reference

ISOVER CLIMCOVER CR Alu2

Thickness

40 mm

50 mm

60 mm

80 mm

100 mm

Standard product features

Fire:

Euroclass A2 s1, d0 Reaction to Fire classification, according to BS EN 13501-1.

Declared thermal conductivity:

  • 0.035 W/m.K at 10°C mean temperature.
  • 0.041 W/m.K at 50°C mean temperature.
  • 0.050 W/m.K at 100°C mean temperature.
  • 0.073 W/m.K at 200°C mean temperature.
  • 0.087 W/m.K at 250°C mean temperature.

Service temperature:

Suitable for continuous service temperatures from 5°C to 250°C. The temperature on the aluminium facing should not exceed 80°C. For applications over 250°C, please contact manufacturer's technical support centre. When using the product for the insulation of ductwork with a surface temperature below dew point, care must be taken to ensure a 100% vapour barrier is maintained.

External applications:

ISOVER CLIMCOVER CR Alu2 is suitable for external applications when used with an appropriate weatherproof jacketing system.

Environmental:

  • Manufactured under Environmental Management System - ISO 14001.
  • Zero ODP (Ozone Depletion Potential); GWP <5 (Global Warming Potential).

Quality:

Manufactured under Quality Management System - ISO 9001.

Building regulations:

Helps to meet thermal building regulations. Compliance with the following:

  • England, Wales and Scotland: BS 5422: 2009 or TIMSA Guidance for Achieving Compliance with Part L of the Building regulations.
  • For Scotland, also refer to Technical Handbooks; Domestic Handbook 2010 and Non-Domestic Handbook 2010 Sections 6 – Energy.

BREEAM:

CLIMCOVER CR Alu2 corresponds to the BRE Global Green Guide online generic specification for glass wool insulation ref 815320004 which achieves a summary rating of A+ within Domestic, Health, Industrial, Commercial, Retail, Education.

Recycled content:

CLIMCOVER CR Alu2 is manufactured from a minimum of 58% recycled glass.

Handling, storage, health and safety:

Information regarding storage, installation and handling of ISOVER products, or health and safety information, can be found on the manufacturer's website.

Environmental information

Recycled content

CLIMCOVER CR Alu2 is manufactured from a minimum of 58% recycled glass

Third party certifications
  • Declaration of Performance (DoP) : CE Marked to EN 14303 - Certificate Number TEK0015-003
  • Bureau Veritas : Manufactured under Quality Management System. BS EN ISO 9001 - Certificate Number DK011378
  • Bureau Veritas : Manufactured under Environmental Management System ISO 14001 - Certificate Number DK011379
