IsoForm 3100 Casement Windows
Verified by manufacturer over a year ago

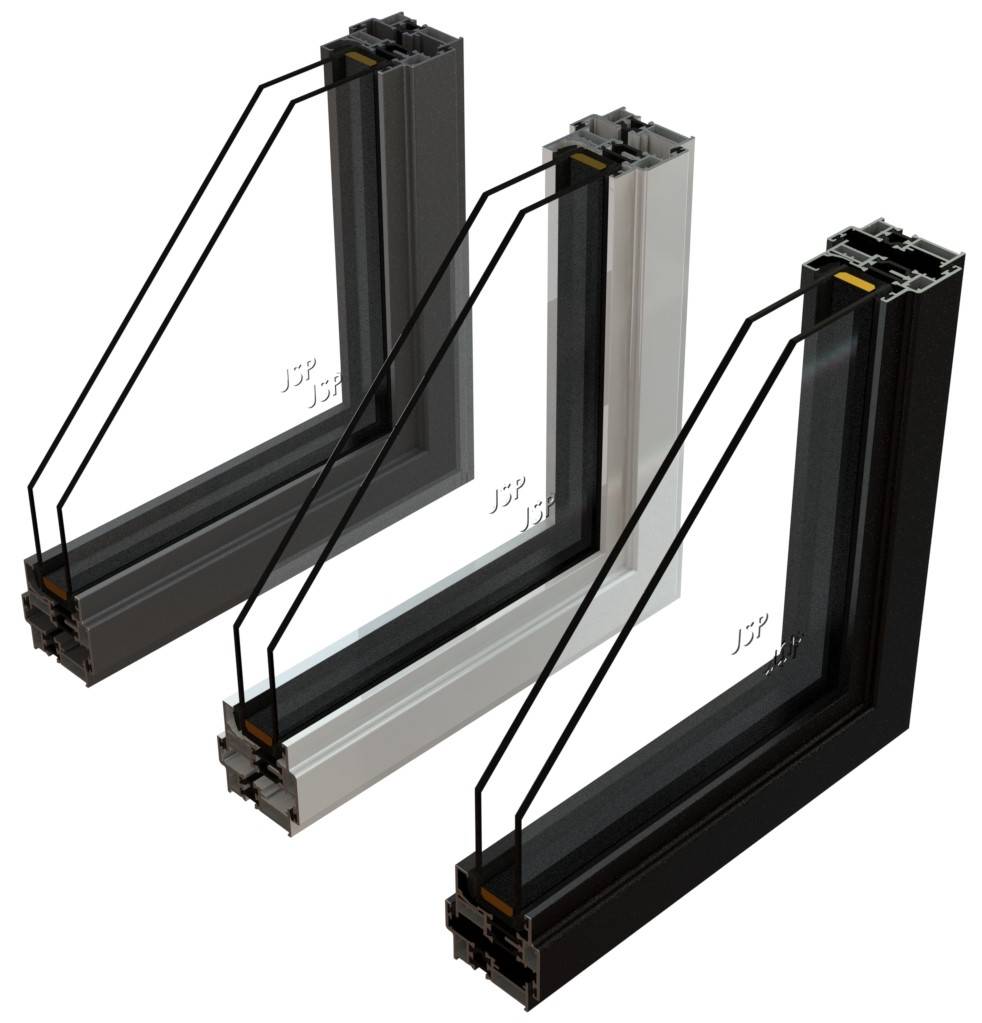

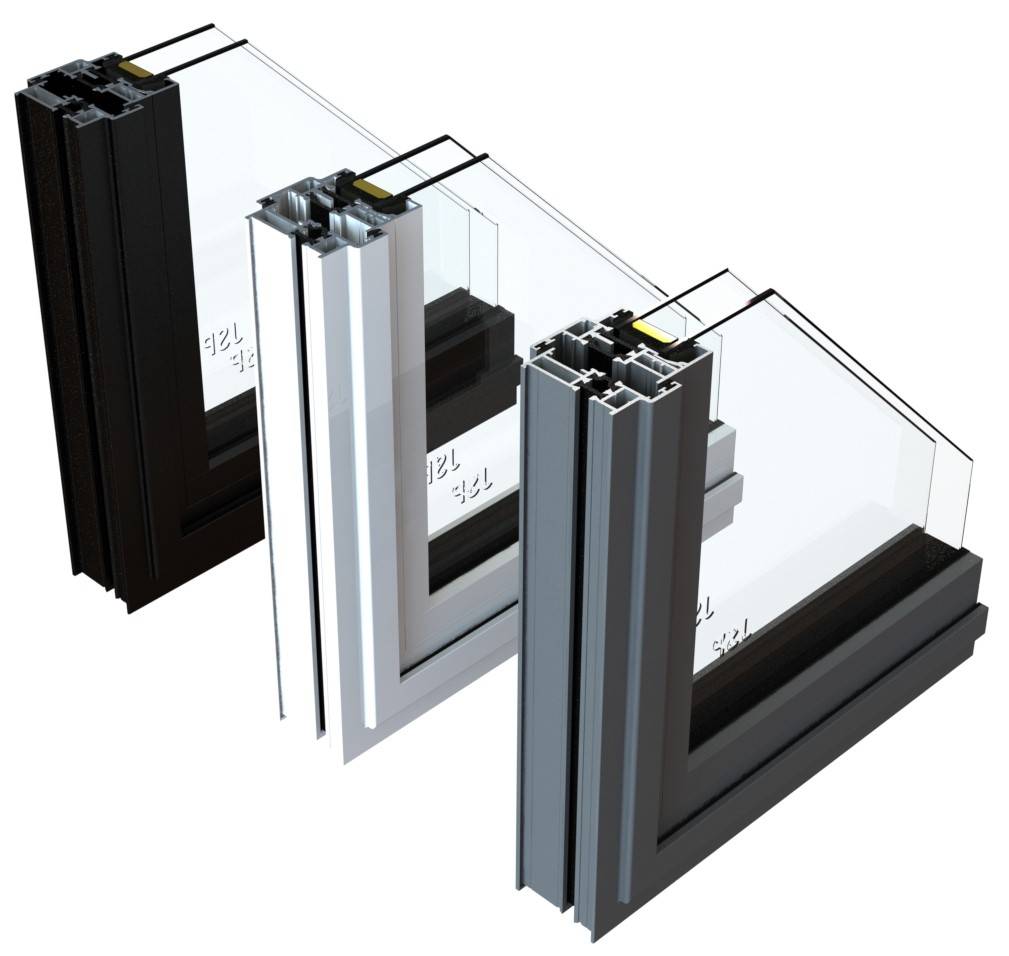

Aluminium casement windows.
Description
Aluminium casement windows.
The newly designed casement window offers an effective and high-performance solution. A versatile range of profiles is perfect for a range of residential and commercial applications.
With several RAL colours to choose from, customize the
product to suit surroundings, with dual colour options
and anodizing available to give you that personal touch.
Features and benefits:
- The Isoform 3100 Aluminium Systems has a 47 mm standard depth or 70 mm optional depth.
- PAS24 certified.
- BS 6375-1: Weather Performance.
- BS 6375-2: Weather Performance.
- BS 1191: Cycling Performance.
- Trickle ventilators available.
- Thermal performance of the unit (u-Value): 1.6 W/(m²K).
- Maximum sash weight: 42.80 kg per pane (top hung).
- Maximum sash weight: 19.60 kg per pane (Side hung).
Window sizes:
- Sash to outer frame: 58.2 mm.
- Sash to sash: 98.4 mm.
- Upstand: 33.2 mm.
- Outer frame to transom: 48 mm.
General information
Color | Black Grey White Silver |
Finish | Powder-coated Mill Chrome Satin Guidance for specification option: Silver |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke Guidance for specification option: Side Hung
Top Hung
|
Height | Bespoke Guidance for specification option: Maximum sash height: 1400 mm. |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/25 Aluminium windows L10/330 Aluminium windows |
Specification data - Aluminium window units
Standard | BS 6375-1: Weather Performance, BS 6375-2: Weather Performance, BS 1191: Cycling Performance. |
Dimensions and configurations | Fixed Window.Fixed with Top Hung and Drip Bar.Side Hung with Fixed.Side Hung.Top Hung with Fixed.Top Hung.Manufacturer guidanceSide Hung:
Top Hung:
Dummy Window:
|
Frame | |
Profile | 47 mm.Guidance for specification option: Standard. 70 mm.Guidance for specification option: Optional. |
Finish as delivered | |
Colour | Powder-coated, RAL 7016 - Matt.Powder-coated, RAL 9005 - Matt.Powder-coated, RAL 9910 - Gloss. |
Ventilator | Trickle vent. |
Glazing or infill | |
Requirements | 28 mm double glazing.Guidance for specification option: U-Value of 1.6 W/m²K. |
Hardware | 7 mm Twin Cam Eapag Lock LH/RH.Inline Espagnolette Handle 9 mm Spindle.Manufacturer guidanceAvailable in a range of finishes including: Mill, Grey, Black, Chrome, White, Satin silver. Consult manufacturer for details and insert requirements. |
Operation | |
Type | Manual. |
Sill | 150 mm sill. 190 mm sill. Manufacturer guidanceNot possible to include a cill in an open-in door. |
Third-party certification | PAS24 Certified. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
