This product is no longer available —
INTRAshape™

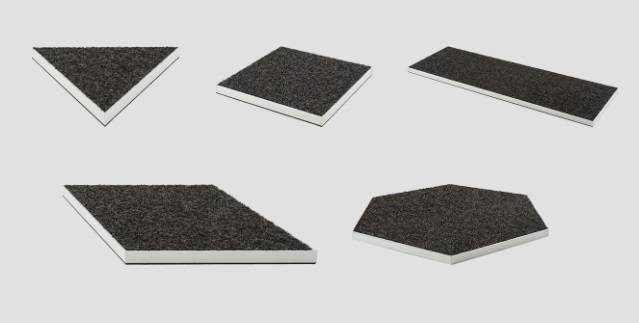

Range of polygonal entrance matting tiles.
Internal - high traffic areas.
Range of polygonal entrance matting tiles.
Features:
- Tile format for ease of handling, installation and replacement in case of damage.
- Tiles can be combined by shape (polygons) and/ or colour, allowing for a huge range of design possibilities.
- Enhances the appearance of the entrance.
- Suitable for entrances where multi-directional foot traffic occurs.
Applications:
Internal - high traffic areas.
Installation:
Into suitable recessed matwell area, with surface of the matting level with adjoining floor coverings.
| Shape | Diamond, small 230 x 230 mm. Diamond, medium, slim 115 x 575 mm (45° angle). Diamond, large 460 mm (60° angle). Hexagon, small 230 mm. Rectangle, XS 115 x 345 mm. Rectangle, small 230 x 460 mm. Rectangle, medium 230 x 690 mm. Rectangle, medium, slim 115 x 690 mm. Rectangle, large 460 x 690 mm. Square, small 230 x 230 mm. Square, large 460 x 460 mm. Triangle, small 230 mm. Triangle, large 460 mm. |
| Finish | Black anodized Bronze anodized Silver anodized Standard. Bespoke Consult manufacturer and insert colour requirement. |
| Features | Tile format for ease of handling, installation and replacement in case of damage Tiles can be combined by shape (polygons) and/ or colour, allowing for a huge range of design possibilities Enhances the appearance of the entrance Suitable for entrances where multi-directional foot traffic occurs |
| Uniclass 2015 | |
| CAWS | N10/300 Entrance matting |
| Product Reference | INTRAshape™ |
| Shape | Diamond, small230 x 230 mm. Diamond, medium, slim115 x 575 mm (45° angle). Diamond, large460 mm (60° angle). Hexagon, small230 mm. Rectangle, XS115 x 345 mm. Rectangle, small230 x 460 mm. Rectangle, medium230 x 690 mm. Rectangle, medium, slim115 x 690 mm. Rectangle, large460 x 690 mm. Square, small230 x 230 mm. Square, large460 x 460 mm. Triangle, small230 mm. Triangle, large460 mm. |
| Finish | Black anodizedBronze anodizedSilver anodizedStandard. BespokeConsult manufacturer and insert colour requirement. |
| Inserts | Elite polyamide fibre, colourInsert colour requirement from 'Options' below. INTRAlux Premier fibre, colourInsert colour requirement from 'Options' below. INTRAlux Select fibre, colourInsert colour requirement from 'Options' below. Polypropylene fibre, colourInsert colour requirement from 'Options' below. |
| Mat well frame | Not requiredINT019 |
| Standard product features | Depth: Overall: 16 mm. Weight: 12.8 kg/m². Construction:
Temperature resistance: -50°C to 70°C. |
| Product Options | Inserts: - INTRAlux Elite polyamide fibre: 601 Red; 602 Blue; 604 Coco; 605 Brown; 606 Grey; 607 Anthracite; 608 Black; 609 Purple; 610 Turquoise. - INTRAlux Premier fibre: 130 Black; 138 Slate Grey. - INTRAlux Select fibre: 50 Black; 73 Grey. - INTRAlux Linear Polypropylene fibre: 443 Anthracite; 451 Grey. Other insert options available; consult manufacturer for details. |
