INTRAgrille T4545/105 - Ceiling Grilles
Verified by manufacturer 2 months ago
ISO 9001 Quality Management
Certificate type
A creative, sustainable alternative to conventional suspended ceiling systems, made from carbon steel with a zinc/aluminium coating.
Application
Can be used in various areas with exposed and semi-exposed ceilings, including:
- Shopping centres;
- Sports facilities;
- Museums, galleries, exhibition halls;
- Airports and stations;
- Offices and private properties;
- Schools, colleges and universities.
Description

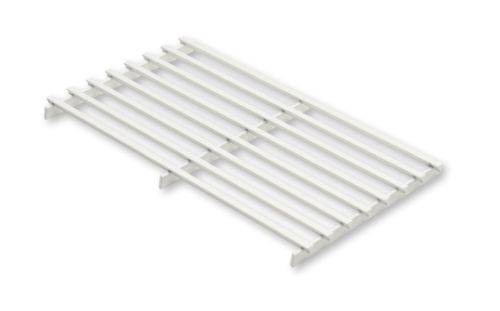

Ceiling grille offering a creative, sustainable alternative to conventional suspended ceiling systems, constructed from carbon steel with a zinc/aluminium coating. The tile consists of support rods with perpendicular decorative wires (profiles). Decorative wires are evenly spaced, forming slots that can control airflow and create a decorative effect.
Features and benefits:
- Striking linear aesthetic with no visible seams
- Can be powder coated to any standard RAL colour
- 100% recyclable and sustainable material
- Quick mounting and dismounting using our innovative clip system
- Can be cut to incorporate lighting and M&E provisions
- Exceptionally durable
General information
Color | Grey White Bronze Black Manufacturer guidanceAny standard RAL colour available. |
Finish | Powder-coated Zinc plated |
Material | Carbon steel Guidance for specification option: Carbon steel with zinc / aluminium coating. |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system |
Product range |
Specification data - Carbon steel open bar metal gratings
Finish | Powder coated.Guidance for specification option: Any standard RAL colour available. Zinc coating.Aluminium coating. |
Size | |
Length x width | 600 x 600 mm.600 x 900 mm.600 x 1200 mm.900 x 600 mm.900 x 900 mm.900 x 1200 mm.1200 x 600 mm.1200 x 900 mm.1200 x 1200 mm. |
Depth | 11.5 mm. |
Weight | 6.6 kg/m². |
Corrosion resistance | To BS EN 13964, Class A and Class B. |
Slot opening | 10.5 mm. |
Profile size | 4.5 x 4.5 mm. |
Sustainability data
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications
ISO 9001 Quality Management
ISO 9001
Case studies
St. Giles Circus - The Now Building
