Intelligent Manual Call Point - Fire Alarm Call Point
Verified by manufacturer 4 days ago

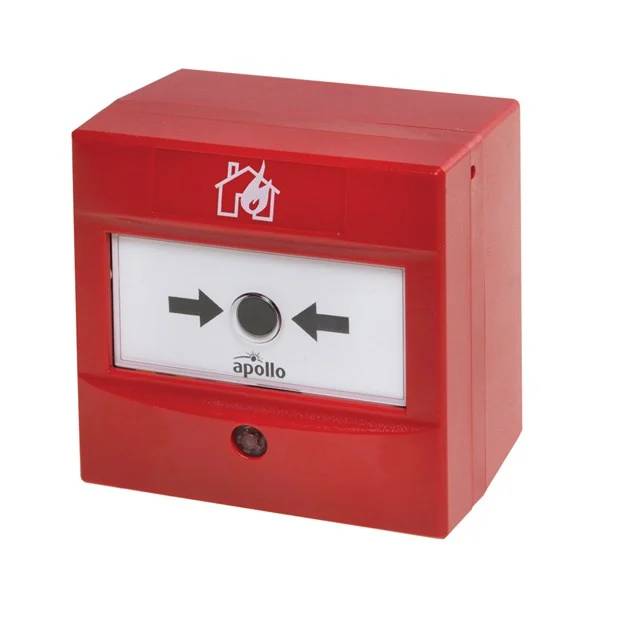

Manual Call Point - Red
Manual Call Point - Red
LPCB Certification
Certificate type
Certificate of constancy of performance
Certificate type
A manual call point that is fully compatible with XP95, Discovery and CoreProtocol panels. Includes a short circuit isolator.
Application
- Designed to operate on a loop of intelligent fire detection devices.
- Suitable for semi-flush or surface mounting.
Description
The Intelligent Manual Call Point has been designed to operate on a loop of intelligent fire detection devices. An alarm is initiated by pressing the resettable element. The manual call point signals to the control and indicating equipment using an interrupt feature within the Apollo digital protocol. An alarm status is indicated through the rotation of the resettable element, displaying yellow and black indication bars and a solid red LED. The manual call point can be easily reset from the front using the supplied reset key.
Features and benefits:
- EN 54-11 and EN 54-17 certified.
- Resettable operating element.
- 170° viewable LED.
- 'Plug and Play' terminal connections for faster wiring.
- Continuity link for wiring test before commissioning.
- XP95, Discovery and CoreProtocol compatible.
- Built-in isolator.
General information
Color | Red |
Material | Polycarbonate |
Shape | Square |
Length | 63 mm |
Width | 90 mm |
Height | 90 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | W90/336 Manual call points |
SKU Code | SA5900-908APO |
Specification data - Manual call points
Classification data | |
Standard | To EN 54-11 and EN 54-17. |
Third-party certification | LPCB-approved. |
Designation | Type A. |
Frangible element | Resettable element. |
Integral red visual indicator | Required. |
Mounting | Surface. Semi-recessed. |
Housing colour | Red. |
Operating temperature | -40°C to +70°C. |
NominalSupplyVoltage | 17–35 V d.c. |
Communications | XP95, Discovery and CoreProtocol compatible. |
Accessories | Reset key. |
Sustainability data
Material | Polycarbonate |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
