Intelligent Flame Detector - Fire detector
Verified by manufacturer over a year ago
Intelligent Flame Detector designed for Apollo's Addressable Protocol.
Application
Designed to protect areas where open flaming fires may be expected.
Description

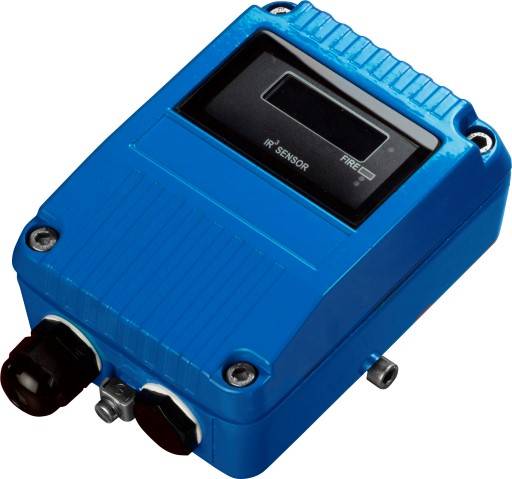

The Intelligent Triple IR Flame Detector (IR3).
It is sensitive to low frequency, flickering infra-red radiation emitted by flames during combustion.
Features and benefits:
- Loop-powered.
- Sensitive to flickering IR radiation.
- Detects through films of oil, dust, water and ice.
- Responds to flickering flames, including those invisible to the naked eye.
- False alarms due to lighting or flickering sunlight are minimised.
- Compatible with Discovery and XP95 protocols.
General information
Color | Blue |
Finish | Gloss |
Material | Zinc |
Shape | Rectangle |
Length | 82 mm |
Width | 108 mm |
Height | 142 mm |
Warranty description | Ten year |
Uniclass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2016 | 4 |
