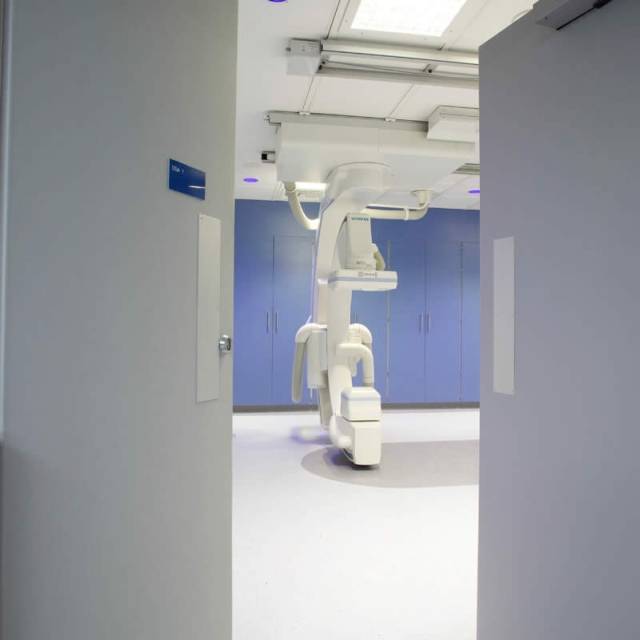

Severe duty postformed timber doorset.
Severe duty postformed doorset featuring a door leaf with a solid core which has PVC or laminate applied to the face and wrapped around the edges of the door leaf. Matching frames are also available or, alternatively, these can be supplied either in lacquered hardwood or primed for a painted finish.
Features:
Certification:
Applications:
Size | As drawing Insert reference. As schedule Insert reference. |
Features | High impact resistance Hygienic with integral anti-bacteria protection and easy to clean Suitable for humid and wet areas Factory assembled doorset Solid core door leaf with PVC or laminate applied to the face and wrapped around the edges Fully factory prepared for mortice ironmongery, including lock cases, flush bolts and floor springs. Door leaf face prepared for lever handles and cylinders Postformed split frames clad with laminate or PVC with integrated architrave Standard timber frames either rebated, lining and stop, or split frame options available Single, leaf and a half, and double configurations are available, either single or double swing A wide variety of sizes and shapes of vision panels are available Designed for clean room applications, a flush glazing vision panel system is available with twin glass panes flush with the face of the door leaf on both sides and no visible glazing beads Factory fitted intumescent smoke and acoustic seals |
Uniclass 2015 | |
CAWS | L20/410 Wood doorsets L20/55 Doorsets |
Product Reference | Integra Severe Duty Postformed Doorset |
Size | As drawingInsert reference. As scheduleInsert reference. |
Configuration | EP-DAEqual pair, double action. EP-SAEqual pair, single action. EPOF-SAEqual pair, single action with flush overpanel. EPOT-DAEqual pair, double action with transom and overpanel or fanlight. EPOT-SAEqual pair, single action with transom and overpanel or fanlight. S-DASingle leaf, double action. S-SASingle leaf, single action. SOF-SASingle leaf, single action with flush overpanel. SOT-DASingle leaf, double action with transom and overpanel or fanlight. SOT-SASingle leaf, single action with transom and overpanel or fanlight. UEP-DAUnequal pair, double action. UEP-SAUnequal pair, single action. UEPOF-SAUnequal pair, single action with flush overpanel. UEPOT-DAUnequal pair, double action with transom and overpanel or fanlight. UEPOT-SAUnequal pair, single action with transom and overpanel or fanlight. |
FireRating | NFRFD30FD60 |
AcousticRating | None30 dB Rw35 dB Rw |
Door leaf | - |
Thickness | 48 mmNot available with FD60. 58 mmFor FD60 only. |
Material | LAMLaminate-faced. PVC-SPVC - smooth. PVC-TPVC - textured. |
Colour | Insert requirement, contact manufacturer for information. |
Frame | - |
FrameType | PFDA-LPostformed double action lining clad in laminate. PFDA-PVCSPostformed double action lining clad in smooth PVC. PFDA-PVCTPostformed double action lining clad in textured PVC. PFSA-LPostformed split lining with separate stop and wrap-around wall integral architraves and clad in laminate. PFSA-PVCSPostformed split lining with separate stop and wrap-around wall integral architraves and clad in smooth PVC. PFSA-PVCTPostformed split lining with separate stop and wrap-around wall integral architraves and clad in textured PVC. |
Colour | Insert requirement, contact manufacturer for information. |
Vision panel | - |
Type | VIST-400Vistamatic privacy, 400 x 400 mm. VIST-2580Vistamatic privacy, 250 x 800 mm. VP-AVP-BVP-CVP-DVP-EVP-FVP-GVP-HSpecial orderInsert requirement. |
Glazing | ICClear insulated glass to suit fire and acoustic performance requirements. PCClear security glass to suit fire, acoustic and security performance requirements. SCClear glass to suit fire and acoustic performance requirements. Special orderInsert requirement. |
Beading | FGBFlush glazing system with two glass panes flush with door facings. GB-Type OneGlazing bead – bolection. |
Hinges and hanging hardware | CHConcealed hinges. DAFSDouble action floor spring set. DAPSDouble action pivot set, for non,-self-closing and non-fire-rated doors. DATCDouble action transom closer set. FPHVisible fixed pin butt hinges to BS EN 1935, grade 13. LOHVisible lift-off butt hinges to BS EN 1935, grade 11. RHVisible rising hinges. |
Ironmongery | Insert requirement; contact manufacturer for information. |
Standard product features | Lipping: Concealed 10 mm hardwood to all edges. |
