Insulated Roller Shutter

Verified by manufacturer over a year ago

Automatic

dp Doors & Shutters Ltd Variant:

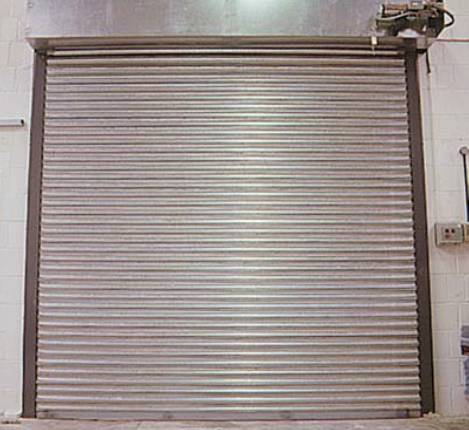

Insulated roller shutter doors designed to be installed inside or outside the clear opening

Jump to:
+44 (0)114 288 9464 Website

Application

Ideal for high traffic areas.

Description

The panel design incorporates an insulating thermal foam infill which conserves heat and also effectively reduced noise. Draught insulation is provided by twin brush seals located in the guides, which seal both faces of the curtain and a rubber seal seals the bottom panel of the door to the floor reducing airflow around the curtain. This combination provides higher performance and reduced fuel bills.


Designed to cut space requirements to a minimum. It requires very little headroom above the opening, an important feature and major advantage for buildings where due to structural features there is restricted or limited available space. No overhead tracks or support steel, the advance motor drive eliminates the need for complicated counterbalance springs.


Features and benefits:

  • Manual or electric operation.
  • Safe, secure and reliable.
  • Conserves heat and reduces noise.
  • Saves on space and installation costs.
  • Door curtain assembled from 100 mm deep, curved face, interlocking laths, formed from cold rolled, pre-galvanized steel, gauge to suit application.
  • Vertical guides manufactured from at least 3 mm thick galvanized steel‘U’ section. Captive section available for exposed situations.
  • Roller manufactured from mild steel tube, inside which tempered helical springs are housed for counterbalance, all mounted on a mild steel shaft. All materials specifications are appropriate to door size and weight.

General information

Color

-

Manufacturer guidance

Insert BS or RAL colour.

Finish

Plastisol

Galvanized

Powder Coat Finish

Material

Steel

Rubber

Guidance for specification option:

Weather seals.

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/610 Roller shutters/ curtains

L20/60 Doors

Specification data - Roller shutters

Format

External.

Performance

-

Thermal resistance

0.69 W/(m²K).

Guidance for specification option:

Curtain only.

Shutter curtain

-

Lath material

Pre-galvanized steel.

Guidance for specification option:

Designed to provide a hollow section panel with CFC and HCFC free thermal infill. Each panel section is 100mm deep with twin-ribbed face for rigidity.

Frame and guides

-

Material

Steel.

Guidance for specification option:

Galvanized or silver painted guide welded to 100 x 65 x 7 mm slotted fixing angles in galvanized finish, guides fitted with twin co-extruded brush seals on both sides.

Finish

Galvanized.

Silver painted.

Operation

-

Mode

Automatic.

Control

Push button.

Guidance for specification option:

Standard. Other controls available. Consult manufacturer and insert requirement.

Power

Single motor.
