Instanta G2 InstaTap for Small Offices - Boiling - Water Tap

Verified by manufacturer 3 months ago

Boiling 5 litre Polished Stainless Steel for Small Office

Zip Water Variant:
Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

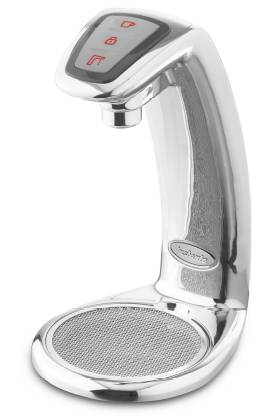

Instant boiling water tap.

Jump to:
BOS
+44 (0)345 6 005 005 Website

Application

For small offices.

Description

A Polished Stainless Steel or Matt Black, 5 litre boiling water dispenser with 20 minute heat-up time and the capacity to pour 135 cups per hour.


Features and benefits:

  • Antimicrobial additive on the keypad that kills 99.9% of surface bacteria, particularly suitable for maintaining hygiene.
  • Dispenses a smooth water flow to minimize spluttering and steam.
  • Designed with a boiling safety lock which helps to prevent accidental dispense of boiling water and therefore lowers the risk of injuries as a result.
  • Features a limescale and taste and odour filter to prevent the build up of limescale and to ensure water always tastes and smells at its best.
  • There are two options available: free pour and measured dispense.

General information

Color

Black

Silver

Finish

Polished

Matt

Material

Stainless steel

Steel

Shape

Other

Length

197 mm

Width

150 mm

Height

275 mm

364 mm

Warranty description

Two year

Uniclass

Pr_40_70_23_42 Instant boiling and cold water tapsPrimary

CAWS

N12/340 Appliances

N12/340 Appliances

N12/380 Sinks, taps, traps and wastes

N12/380 Sinks, taps, traps and wastes

Product range

Instant Boiling and Chilled Tap

Specification data - Instant boiling and cold water taps

Water

Boiling.

Duty

-

Tank capacity

5 L.

Hot cups

135 per hour.

Dimensions

230 x 415 x 420 mm.

Electrical connection

-

Power

1 x 13 amp socket outlet.

Voltage

220–240 V.

Water inlet

Cold feed, 1 x isolated 3/4"BSP BSP fitting.

Guidance for specification option:

Install rail 15 mm.

Safety features

Boiling safety lock.

Supply pressure

2–5 bar.

Finish and colour

Polished stainless steel.

Nominal height

275 mm.

Dimensions

150 x 197 x 275 mm.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

Instanta ISO 9001:2015

Literature

Instanta Commercial Product Guide January 2024

Instanta Commercial Product Guide January 2024

HydroCare Commercial Flyer 2024

HydroCare Commercial Flyer 2024

Case studies

Cross Road Care - InstaTap Boiling Chilled

Cross Road Care - InstaTap Boiling Chilled
