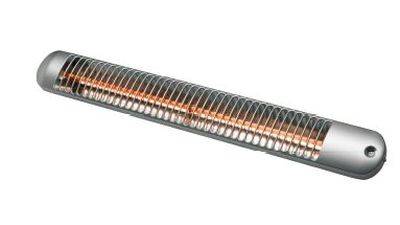

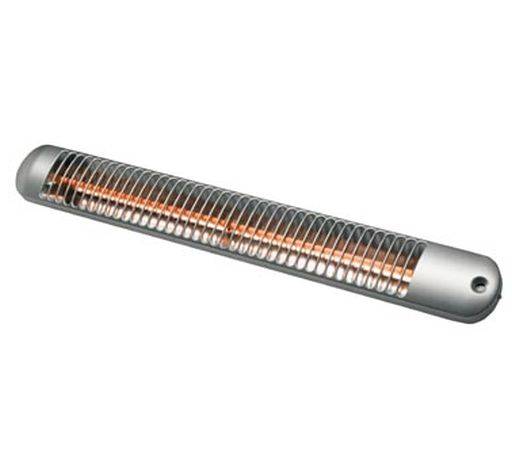

Infrared Heater - IRX
Description

The IRX range of infrared wall heaters offers a safe, practical source of heat in bathrooms, kitchens and work areas for fast localised heating.

All models are IP24 rated and are suitable for permanent installation internally or externally, and have adjustable beam angle to direct heat where it’s needed.

Features and benefits:

  • Choice of 3 output models 500W, 1.2 kW and 2 kW.
  • 2 kW has three heat settings 800W, 1.2 kW and 2 kW.
  • Designed to provide rapid beamed warmth.
  • Pull cord operation for bathroom use.
  • Adjustable beam angle to direct heat where it's needed.
  • IP24 rated.
  • CE and BEAB certified.

Supplied with a 2 year warranty.

General information

Size

764x93x104mm

Uniclass 2015

Pr_70_60_36_74 Room heatersPrimary

CAWS

V90/590 Equipment

Specification data - Room heaters

Product Reference

IRX

Type

IRX60/120E

Loading 1200 W (with two elements: 600 and 600 W).

IRX50N

IRX120N

IRX200N

Standard product features

Size (l x h x d):

764 x 114 x 92.5 mm.

Colour:

Silver grey.

Technical characteristics:

  • Control: Built in double-pole-pull-cord switch.
  • Elements: Spiral elements encased in transparent insulating silica sleeves.
  • Reflector: Angle adjustable on installation and lockable.
  • Electrical connection: Provision for connection to fixed wiring only, with surface wiring of flexible cord entering through a bushed in the bottom or side of the base plate.
  • Clearances: 600 mm to curtain, 300 mm to wall.
  • Ingress protection rating: IP24.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2015 1 1.3
IFC
IFC2X3 1 1.3
IFC
IFC2X3 1 1.3
Download now from NBS National BIM Library
