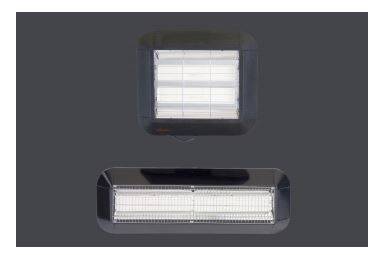

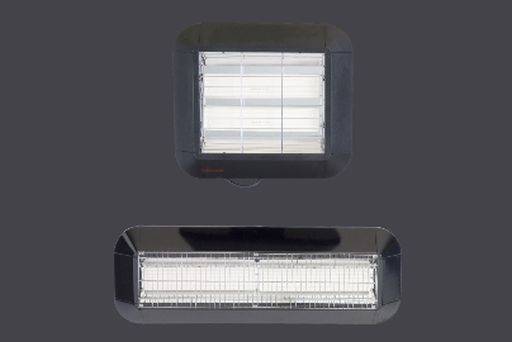

Infrared Heater - CXD / CXDE

Description

Ceramic elements provide long wave lower intensity infra-red heating for a softer heating effect.

Features and benefits:

  • Uses robust ceramic elements.
  • Can be mounted inside or outside.
  • Silent operation.
  • No visible light output.
  • Supplied with an adjustable mounting bracket and fitted guard.
  • Choice or vertical or horizontal 2 kW models.
  • Can be used with the Dimplex passive Infra-red detector switch DX4131.
  • CE and BEAB approved.

Supplied with a two year warranty.

General information

Size

735x248x255mm

WarrantyDescription

12 months

Uniclass 2015

Pr_70_60_36_74 Room heatersPrimary

CAWS

V90/590 Equipment

Specification data - Room heaters

Product Reference

CXD

Type

CXD2000H

Horizontal model. Size (h x l): 255 x 735 mm.

CXD2000V

Vertical model. Size (h x l): 380 x 442 mm.

Accessories

Infra-red detector switch DX4131

Standard product features

Material:

Body: Powder coated steel.

Colour/ Finish:

High temperature matt black.

Technical characteristics:

  • Supply voltage: 230 V (1 PN).
  • Reflector: Specular quality electrochemically brightened aluminium (purity +99%).
  • Elements: Two ceramic encased aluminium coils.
  • Element guard: Chromium plated carbon steel.
  • Ingress protection rating: IPX4.
  • Recommended height: 2 m (1.8 m, minimum). Consult literature for spread and throw chart.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2015

1

1.3
IFC

IFC2X3

1

1.3
IFC

IFC2X3

1

1.3
Download now from NBS National BIM Library
