Infrared Control (IRC) Valve Wall Mount
Description

How it works

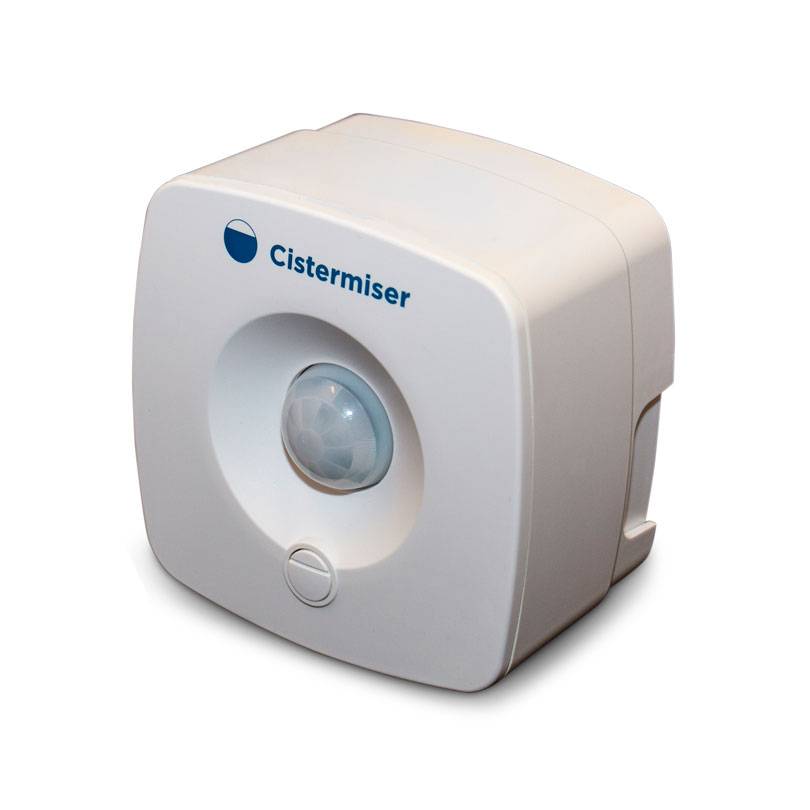

The Infrared Urinal Flush Control (IRC) consists of a solenoid valve and the sensor module.

When the IRC detects movement in the washroom, a pulse from the sensor opens the normally closed solenoid valve and water flows to the cistern; at the same time, the sensor is switched off.

After 25 minutes the power is restored to the sensor and, as long as no movement is detected for 5 minutes, the solenoid valve closes, shutting off the water supply to the cistern.

Features:

  • Ensures compliance with the Water Regulations.
  • Can be concealed to reduce the risk of vandalism.
  • Battery or mains powered (no external transformer required). IRC can use batteries as back-up power to mains supply if required.
  • Pipe, wall or ceiling mounted sensor: surface mounted or recessed.
  • On DEFRA’s Water Technology List; purchase and installation are tax deductible.
  • Visible LED status indicator and low battery alert.

Reducing water wastage and costs

Installing a Cistermiser IRC valve can save on average 129 600 litres of water per year and reduce costs by up to £301 per urinal bowl.

General information
Finish

Matt white plastic

Size

15mm Compression fittings

Color

White

Features

Ensures compliance with the Water Regulations, reduce the risk of vandalism, mains power and/or Battery (no external transformer required), Pipe, wall or ceiling mounted sensor: surface mounted or recessed, DEFRA’s Water Technology List; purchase and installation are tax deductible, Visible LED status indicator and low battery alert

Material

Plastic

WarrantyDescription

1 year + 2 Years extendable warranty (parts only)

Uniclass 2015
Pr_40_20_06/355 Urinal flushing valvesPrimary
Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2017 3 2.1
IFC
- 3 2.1
