Industrial Handrail System
Verified by manufacturer 5 months ago
Tubular
Tubular

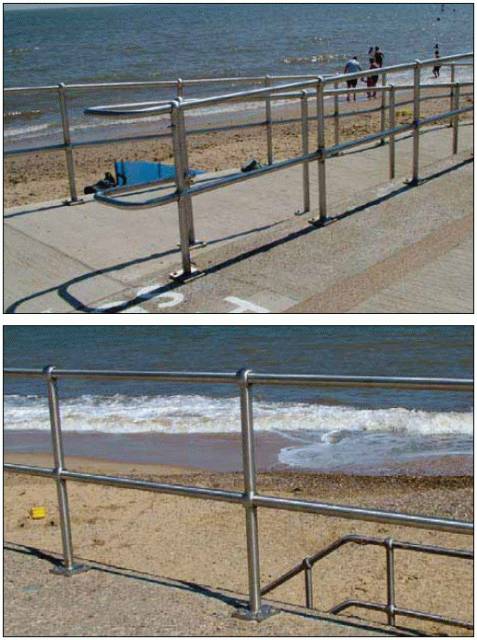

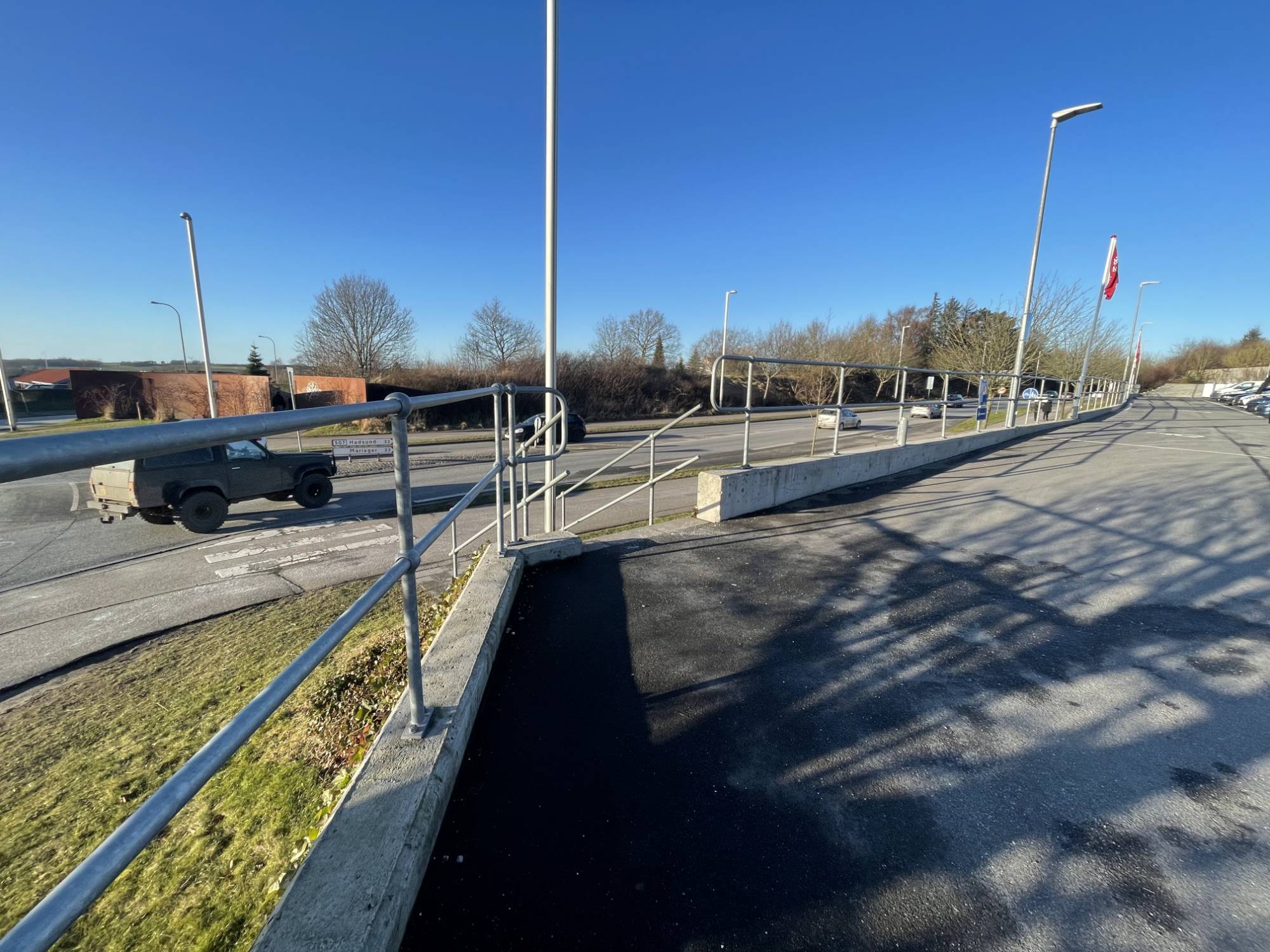

An industrial handrail system that can be used as a guardrail or barrier on staircases, walkways and platforms.
Application
Used as a guardrail or barrier on staircases, walkways and platforms.
Description
Handrails available in a variety of tube sizes and jointing styles to achieve required loadings and can be supplied in component form, i.e. 90°, ramp, 'D' or return bends with random lengths or fully engineered with erection marks for easy site installation. All handrails can be supplied in carbon steel, stainless steel or aluminium. Hole diameter in bases as requested (standard 18 mm). Other types available on request along with steel to steel or steel to concrete fixing bolts.
General information
Color | Silver |
Material | Aluminium Carbon steel Stainless steel |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L30/30 Proprietary stairs L30/580 Proprietary handrails L30/70 Proprietary handrails N25/130 Gantry access system |
Specification data - Balustrade and guarding systems
Rails | |
Handrails | Aluminium.Carbon steel.Stainless steel. |
Base plates | GS1. GS2. GS3. GS4. GS5. Manufacturer guidanceStandard base plates are 12 mm thick with 18 mm diameter holes, alternatives are but not limited to, 10, 15 or 20 mm with a variety of hole diameters and configurations. |
Bends | 90° bend. Ramp bend. Return/ 'D' bend. Staircase return. As drawing. |
Joints | Expanding. Grooved. |
Infill | Manufacturer guidanceHandrail infill available from wire mesh, mesh gratings and perforated sheet. Consult manufacturer and insert requirements. |
Gate | Not required. Half height. Full height. |
Third-party certification | SCCS: Accreditation to BS EN ISO1090 parts 1 & 2 execution class 2. |
Load | 750 mm. Guidance for specification option: 33.7 mm overall diameter. 1050 mm. Guidance for specification option: 33.7 mm overall diameter. 1075 mm. Guidance for specification option: 33.7 mm overall diameter. 1100 mm. Guidance for specification option: 42.4 mm overall diameter. 1200 mm. Guidance for specification option: 42.4 mm overall diameter. Manufacturer guidanceLoads are unfactored - please contact manufacturer should safety factored loading be required. |
Design load | 0.22 kN/m. Guidance for specification option: 1650 mm / 2000 mm. 0.36 kN/m. Guidance for specification option: 1075 mm / 1850 mm / 1900 mm / 2000 mm. 0.50 kN/m. Guidance for specification option: 750 mm / 1450 mm / 1500 mm / 2000 mm. 0.74 kN/m. Guidance for specification option: 1050 mm / 1100 mm / 1500 mm / 1700 mm / 2000 mm. 1 kN/m. Guidance for specification option: 1200 mm / 1400 mm / 1800 mm. |
Dimensions | 60.3 x 4 mm. 48.3 x 4 mm. 48.3 x 3 mm. 42.4 x 3 mm. 33.7 x 3 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium Carbon steel Stainless steel |
Recyclability | 100% |
Literature
Guardrail Brochure
Guardrail Flexi Post System
