Industrial gully.
Suitable for use primarily in food, beverage and pharmaceutical factories. Used in both light duty and very heavy duty trafficked areas (depending on the grating chosen).
When used with Heelproof gratings it is suitable also for civil projects.

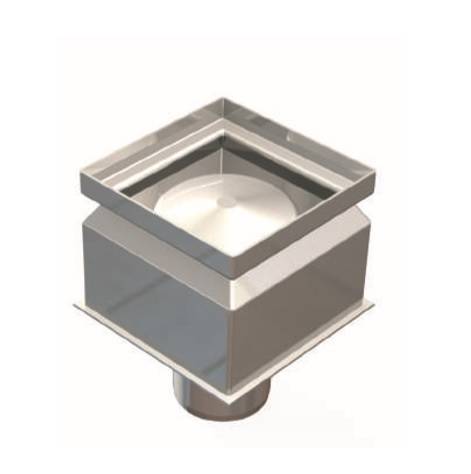

A stainless steel industrial gully. The KV215/110 standard gully accepts 10 mm thick gratings as well as 3 mm thick covers that are made to sit in a 10 mm recess (Perforated Gratings, Sealed Gratings).
The KV215/110DS (Deep Swage) version of the gully accepts all 25 mm deep gratings (Mesh, Heelproof Mesh, Factory Ladder, Heelproof and Ladder).
In most cases a 110 mm or 160 mm outlet is required but can be substituted for a 4” or 6” SCH10 outlet pipe. It is trapped as standard with the Kent Bell Trap.
Foul air traps:
The bottom outlet gullies use a Bell Trap (also referred to a Dome or Mushroom). A 65 mm water seal is created (complies with EN 1253). This grips firmly to an upstand which is an integral part of the gully body. It is easily removable giving clear access for rodding and cleaning. Chains can be attached to traps to ensure they are not lost.
The side outlet gullies use a Weir Trap system. A 50 mm water seal is created (complies with EN 1253). This is a fully integral part of the gully body and contains a removable bung for easy rodding. In special circumstances a hinged self-sealing stainless bung can be provided.
Features and benefits:
Applications:
Suitable for use primarily in food, beverage and pharmaceutical factories. Used in both light duty and very heavy duty trafficked areas (depending on the grating chosen).
When used with Heelproof gratings it is suitable also for civil projects.
Material | 1.4301 (304) stainless steel 1.4401 (316) stainless steel |
Features | Low cost, strong, short lead time, usable in both heavy and light duty areas |
Shape | Square |
Size | 215 x 158 x 215 mm |
Uniclass 2015 | |
CAWS | R11/315 Floor drains R11/5 Floor drains |
Product Reference | Industrial Gully |
Type | KV215/110KV215/110DSKV315/110KV315/110DSKV315/160KV315/160DS |
Height | Manufacturer's standardBespokeInsert requirements. |
Material | 1.4301 (304) stainless steel1.4401 (316) stainless steel |
Loading class to BS EN 1253 | L15R50M125N250P400 |
Flange type | 4” 150lb R/F S/O ANSI Flange4” PN10 R/F S/O FlangeDamp proof membrane flangeHolding flangePuddle flange |
Side inlets | - |
Type | 1½” BSP nipple1½” BSP socket50 mm push fitAbove ground funnel |
Angle | 45°90°BespokeSee 'Options'. Consult manufacturer and insert requirements. |
Grating | See 'Options' and insert requirements. |
Filter basket | Not requiredRequiredRequired, with chainRequired, with separate filter basket |
Accessories | NoneHinged self-sealing stainless bungFor foul air trap on a side out gulley. |
Standard product features | Size (h x w x d):
Increased height body is used where a higher flow rate is needed. The gullies can be increased to customized heights. Consult manufacturer for details. Outlet: - 110 mm:
- 160 mm:
Swage: - 10:
- 25:
Flow rate:
|
Product Options | Flanges: Base flanges are available with flange connections i.e. 4” / 6” / 8” ANSI B 16.5 or BS 4504 or to suit polypropylene flanges. Consult manufacturer for details. Side inlets: - Angle:
Grating: An extensive range of gratings are available, consult technical literature for details. Filter basket: Filter baskets can be incorporated into bell traps or separated for deeper gullies. For a higher flow rate a deeper gully with separate traps and filter baskets are used. The filter basket can also be chained to avoid loss. |
