Industrial Double Contained Gully
Description

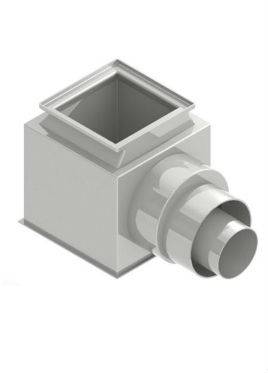

This Double Contained Gully Horizontal outlet is a version of our KH215 Gully. A Dual Contained Gully for areas with the possibility of corrosive, hazardous and high temperature fluids. All flow rates and loadings can be catered for and gullies are most often tailor made to suit specific site requirements. This gully is also the gully most commonly connected to our Double Contained Channel.

Standard Versions have a 10 mm seat to accept 3 mm thick or 10 mm thick perforated grating. DS or Deep Swage versions have a 25 mm deep seat to accept mesh gratings from 2 mm or 3mm thick steel and ladder gratings from 5 mm, 6 mm, 8 mm or 10 mm thick steel. Flow rates shown can be increased on request.

The KVB110 Bell Trap is supplied as standard and is easily removable for rodding on all bottom outlet versions. This gully is often fully welded to the centre, end or underside of the KSBC Box150DC Channel range.

Features and benefits:

  • Grade 304 (1.4301) or 316 (1.4401) Stainless Steel to BS EN 10088.
  • Fully Dye Pen Tested Fully Pneumatic Pressure tested to 7psi.
  • Usable in both heavy and light duty areas.
  • Suitable for internal factory drainage.
  • Suitable Floor Finish: Tiled Floor, Epoxy Resin Floor or Concrete Floor.

General information

Features

Usable in both heavy and light duty areas, suitable for internal factory drainage

Finish

Tiled, epoxy resin, concrete

Material

Stainless steel

Size

230 x 173 mm

395 x 395 mm

410 x 395 mm

245 x 273 mm

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary
Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.0
Revit
Revit 2017 1 2.0
Download now from NBS National BIM Library
