In-Line Slate Ventilator

Verified by manufacturer 3 months ago

Marley Ltd

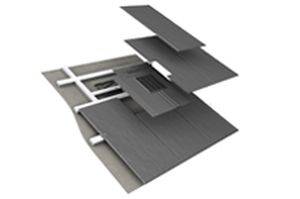

In-line slate ventilator tile.

Jump to:
+44 (0)1283 722588 Website

Application

  • Suitable for applications where the normal ventilation airpath is blocked by valleys, hips, abutments, dormer windows, firebreaks or party walls, or where it is not possible to incorporate standard eaves or ridge ventilation.
  • Suitable for soil and mechanical ventilation.

Description

An in-line soaker-style slate ventilator tile.


Features and benefits:

  • Visual integration with the roof slope.
  • 10 000 mm²/m ventilation opening.
  • Provides ventilation to roof space.
  • Suitable for mechanical extract and soil pipe ventilation.

General information

Color

Grey

Shape

Rectangle

Length

600 mm

Width

300 mm

Uniclass

Pr_35_90_93_34 Fibre-cement slate roof slope ventilation fittingsPrimary

CAWS

H61/840 Ventilator slates

H61/850 Roof slope terminals

H61/86 Ventilator slates

H61/87 Roof slope terminals

Specification data - Fibre-cement slate roof slope ventilation fittings

Form

Ventilator terminations.

Colour

Grey.

Execution

Installing roof slope ventilator fittings.

Adapter

Not required.

Guidance for specification option:

For ventilators providing air to the roof void.

Required.

Ventilation opening

10 000 mm²/m.

Guidance for specification option:

Consult manufacturer to confirm suitability when being used for mechanical extraction.

Purpose

Roof void ventilator.

Soil pipe termination.

Sustainability data

Country of product manufacture

United Kingdom
