In Ground Potable Water Unit – KIGPWU400/450
Application

Suitable for trading areas, open air areas with events and exhibitions where potable water flow is required. It was designed for the growing number of coffee stalls that are used on a temporary basis in town plazas, pedestrianization schemes, and other areas of high footfall like stadiums, rail station traffic etc.

It is necessary to ensure a connection to a drainpipe or soakaway. Ensure C35/45 grade concrete all around and underneath.

Description

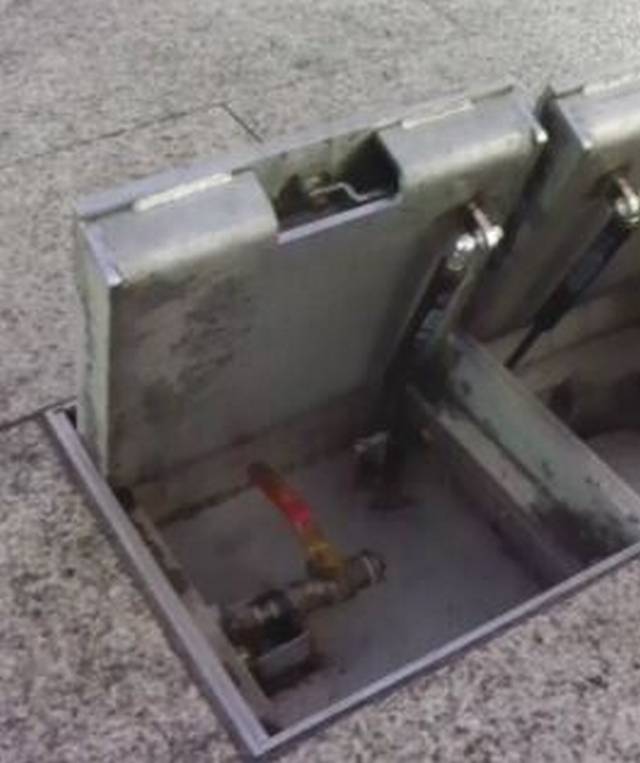

A paver in ground potable water unit.

The Clean Water Unit is trapped using a bell trap system. The internal upstand is 30 mm diameter, 50 mm high for copper or plastic pipe to feed through as standard. Tap connection can be supplied as an option to suit he particular site.

The hinged recessed cover ensures the units are unobtrusive when not in use. The covers are lift assist recessed manholes and blend in with any paving scheme.

The In Ground Clean Water Units are manufactured in accordance with FACTA and BS EN124 standards. The covers are suitable for all types of paving blocks and are manufactured to meet required loads. They are fabricated in 3, 4, 6 and 8 mm stainless steel as standard but material can be changed to galvanized carbon steel when required.

The 80 mm deep tray is design for 60 mm deep paving blocks - this is customizable to suit specific project paver depths and lengths.

Features and benefits:

  • The unit incorporates gas rams.
  • 30 mm conduit pipe.
  • Galvanized steel version available.
  • Chequer plate tops available.
  • Combination power, grey water/ potable water units also available separately.
  • Provides 3/4" mains water feed with isolation valve with 1/2" hose connection.
  • Complete with bib tap.

Applications:

Suitable for trading areas, open air areas with events and exhibitions where potable water flow is required. It was designed for the growing number of coffee stalls that are used on a temporary basis in town plazas, pedestrianization schemes, and other areas of high footfall like stadiums, rail station traffic etc.

It is necessary to ensure a connection to a drainpipe or soakaway. Ensure C35/45 grade concrete all around and underneath.

General information

Material

1.4301 (304) stainless steel

1.4401 (316) stainless steel

Galvanized carbon steel to 140 micron

Minimum for Middle East projects.

Galvanized carbon steel to BS EN ISO 1461

Features

Gas rams, 30 mm conduit pipe, multiple versions available

Shape

Square

Size

450 x 450 x 400 mm

Uniclass 2015

Pr_65_52_01_02 Access covers and framesPrimary

CAWS

P31/370 Access covers/ gratings for

Specification data - Access covers and frames

Product Reference

In Ground Potable Water Unit

Type

KIGPWU450/400

Material

1.4301 (304) stainless steel

1.4401 (316) stainless steel

Galvanized carbon steel to 140 micron

Minimum for Middle East projects.

Galvanized carbon steel to BS EN ISO 1461

Loading

BS EN 124 A15

Slow moving wheel load: 0.6 tonnes. Kent safety test (unfilled): 1.5 tonnes.

BS EN 124 B125

Slow moving wheel load: 5 tonnes. Kent safety test (unfilled): 12.5 tonnes.

BS EN 124 C250

Slow moving wheel load: 6.5 tonnes. Kent safety test (unfilled): 25 tonnes.

BS EN 124 D400

Slow moving wheel load: 11 tonnes. Kent safety test (unfilled): 40 tonnes.

FACTA A

Slow moving wheel load: 0.6 tonnes. Kent safety test (unfilled): 0.8 tonnes.

FACTA AA

Slow moving wheel load: 1.5 tonnes. Kent safety test (unfilled): 3.1 tonnes.

FACTA AAA

Slow moving wheel load: 2.5 tonnes. Kent safety test (unfilled): 5.2 tonnes.

FACTA B

Slow moving wheel load: 5 tonnes. Kent safety test (unfilled): 10.1 tonnes.

FACTA C

Slow moving wheel load: 6.5 tonnes. Kent safety test (unfilled): 13.2 tonnes.

FACTA D

Slow moving wheel load: 11 tonnes. Kent safety test (unfilled): 22 tonnes.

Accessories

None

Bespoke tap connection

Bespoke tray depth, 100 mm

Standard product features

Visible frame:

450 x 400 mm.

Unit depth:

450 mm

Tray depth:

80 mm.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.0
Revit
Revit 2017 1 2.0
Download now from NBS National BIM Library
