Imagine Bi-Fold Door
Verified by manufacturer 2 months ago
Sculptured Bi-Fold Door
Sculptured Bi-Fold Door
BSI Kitemark
Certificate type
PVC-U bi-folding doors with bevelled or sculptured profile.
Application
Suitable for all building types.
Description
Imagine Bi-Fold Door sashes glide along the rail, concertina and stow away using minimal space. Imagine Bi-Fold Doors have a completely flush finish and are available with a choice of 19 configurations, up to seven sashes in width, bevelled or sculptured profile, mechanical or welded joints, inward or outward openings and a variety of thresholds allowing the door to be tailored to any specification. They can also be assembled on-site in difficult to access areas.
Features and benefits:
- Large assortment of colours and woodgrain options.
- Sculptured or bevelled options available.
- Complies to BS EN 12608-1+A1:2020/ PAS 24:2022.
General information
Color | Beige Black Blue Brown Cream Manufacturer guidanceAvailable in a large assortment of colours and woodgrain options from the Variations range and SPECTRAL. |
Finish | Coated Woodgrain |
Material | PVC-U |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/60 Doors L20/530 Sliding folding external doors |
Specification data - Sliding folding doorsets
Grade | External. |
Format | Bi-parting opening. |
Track system | Manufacturer's standard. |
Door leaf | |
Construction | Manufacturer guidanceConsult manufacturer and insert requirements. Available in a choice of 19 configurations, up to seven sashes in width, bevelled or sculptured profile, mechanical or welded joints, inward or outward openings and a variety of thresholds allowing the door to be tailored to any specification. |
Finish | Manufacturer guidanceConsult manufacturer and insert requirements. Available in a large assortment of colours and woodgrain options from the Variations range and SPECTRAL*. * SPECTRAL is only available on bevelled or flat surfaces. |
Operation | Manual. |
Hardware | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. Range of ancillary items available including:
|
Dimensions | Manufacturer guidanceConsult manufacturer and insert requirements. Maximum sash sizes:
|
Outer frame | 65 mm. |
Mullions | Not applicable. |
Mid rails | Not applicable. |
Sash | 80 mm sculptured door sash. |
Glazing beads | 28 mm bevelled. 28 mm sculptured. 36 mm bevelled. 40 mm bevelled. 44 mm bevelled. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | PVC-U |
Recyclability | Through our advanced recycling process, each PVCu frame can achieve a potential lifetime of 350 years. VEKA Recycling Ltd offer a fully circular solution for PVCu waste management. Collected and processed in the UK, for use in the UK. |
Expected Life | 35 year Guidance for specification option: Through our closed loop process, we can recycle windows and doors up to 10 times. This means each frame can achieve a potential lifetime of 350 years. Manufacturer guidanceThrough our closed loop process, we can recycle windows and doors up to 10 times. This means each frame can achieve a potential lifetime of 350 years. |
Third party certifications
BSI Kitemark
Imagine Bi-Fold Door Kitemark™ Certificate No. KM 60983
Literature
Imagine Bi-Fold Door Specification
Similar products from VEKA plc

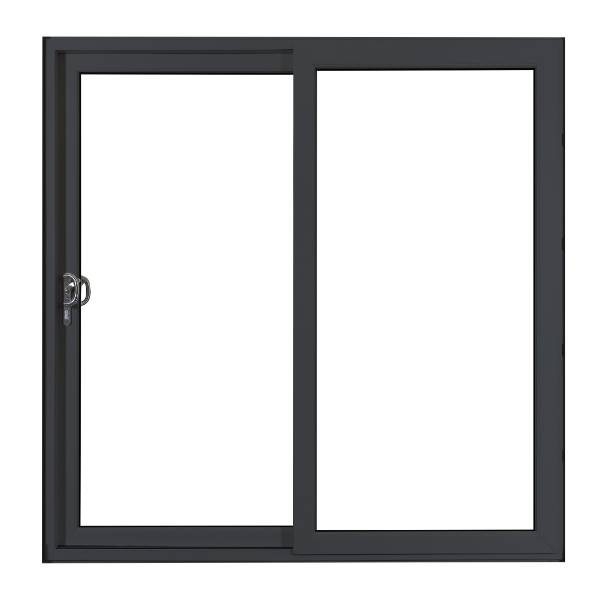

Imagine Patio Door
