IKO Permaphalt Mastic Asphalt Warm Roofing System - Heritage Project Friendly - Mastic Asphalt Roofing

Name: IKO Permaphalt Mastic Asphalt Warm Roofing System - Heritage Project Friendly - Mastic Asphalt Roofing
Brand: IKO UK
SKU: 26mEt4oSm1ynXzSVTBdEdA

Verified by manufacturer 2 days ago

IKO UK

Product certifications:

BBA Agrément Certificate
Certificate type

Mastic asphalt warm roof system.

Jump to:

+44 (0)1257 255 771 Website

Application

Suitable for warm roof systems.
Suitable for both intensive and extensive green roof systems.

Description

The IKO Permaphalt warm roof system is a specially formulated mastic asphalt roofing solution that provides long-term durability, increased fatigue resistance, improved temperature stability, and ease of installation. IKO Permaphalt warm roof systems are suitable for both intensive and extensive green roof systems.

Key benefits to your project

Classified BROOF(t4) in accordance with BS EN 13501-5: 2005 fire classification. This enables unrestricted use within Part B4 of the Approved Documents of the Building Regulations (tested under ENV1187). This is based on specific system build-up testing, so please contact IKO for further clarification or refer to the product BBA certificate, where applicable.
Polymer-modified mastic asphalt available to IKO registered contractors only.
Improved flexibility, fatigue resistance, and long-term performance.
BBA approved (Certificate No. 89/2299).
Members of the Mastic Asphalt Council (MAC).
Backed with a 20 year guarantee.

General information

Color	Black
Material	Asphalt Polymer
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	25 year

Uniclass	Ss_30_40_30_55 Mastic asphalt warm roof covering systemsPrimary
CAWS	Q37/130 Extensive green roofs and biodiverse roofs Q37/110 Intensive green roofs J21/26 Mastic asphalt J21/402 Mastic asphalt (roofing)

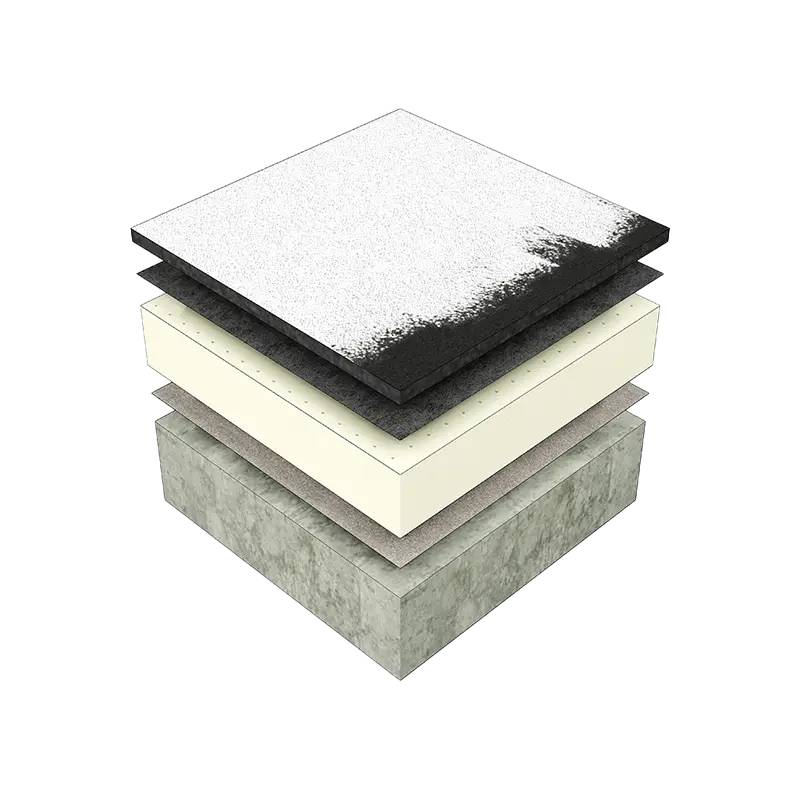

Specification data - Mastic asphalt warm roof covering systems

Classification data
Preparation	-
Horizontal work	IKOpro high bond primer. IKOpro quick dry bitumen primer. IKOpro bonding agent.
Skirtings and vertical work	IKOpro high bond primer. IKOpro quick dry bitumen primer. IKOpro bonding agent.
Air and vapour control layer	-
Type	IKO ultra S-A air and vapour control layer. Guidance for specification option: S-A VCL (self-adhesive) is a fully bonded self-adhesive, polyester reinforced, SBS modified bitumen air and vapour control layer with an aluminium core. It has an upper surface finish of fine mineral granules. The self-adhesive coating underside is protected by a release film. IKO ultra T-O air and vapour control layer. Guidance for specification option: T-O VCL (torch-on) is a fully bonded torch-applied, polyester reinforced, SBS modified bitumen air and vapour control layer with an aluminium core. It has an upper surface finish of fine sand and a thermo-fusible film on the underside.
Fixing	Self-adhesive backing. Guidance for specification option: For IKO ultra S-A air and vapour control layer. Torch-applied. Guidance for specification option: For IKO ultra T-O air and vapour control layer.
Insulation	-

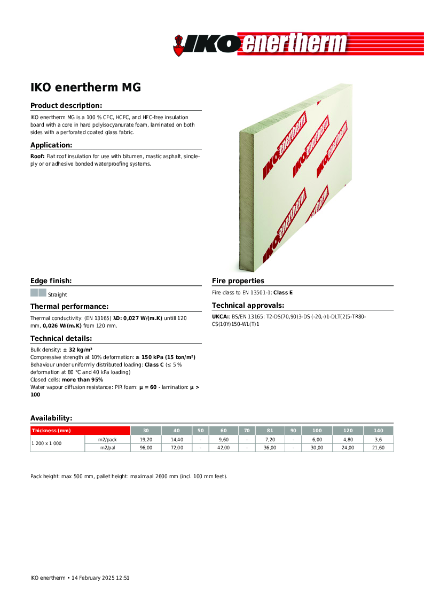

Type	IKO enertherm MG, 1200 x 1000 mm. Guidance for specification option: 100 % CFC, HCFC, and HFC-free insulation board with a core in hard polyisocyanurate foam, laminated on both sides with a perforated coated glass fabric. Thicknesses: 30, 40, 60, 81, 100, 120 and 140 mm. Consult literature and insert requirements.
Fixing	IKOpro Sprayfast IBA.
Separating layer	-
Horizontal work	-
Type	IKO Black Sheathing Felt.
Fixing	Loose laid with minimum 50 mm lap joints directly above the roof deck.
Skirtings and vertical work	-
Type	IKO Black Sheathing Felt.
Fixing	Loose laid with minimum 50 mm lap joints directly above the roof deck.
Waterproof covering	-
Horizontal work	-
First coat	IKO Permaphalt. Guidance for specification option: Complies with BS EN 12970:2000 – Mastic asphalt for waterproofing. BBA Certified (89/2299). Advanced polymer modification. Broof(t4) Fire Classification.
Finish	Sand rubbed.
Skirtings and vertical work	-
First coat	IKO Permaphalt. Guidance for specification option: Complies with BS EN 12970:2000 – Mastic asphalt for waterproofing. BBA Certified (89/2299). Advanced polymer modification. Broof(t4) Fire Classification.
Finish	Sand rubbed.
Movement joints	Mastic asphalt (MA) movement joints.
