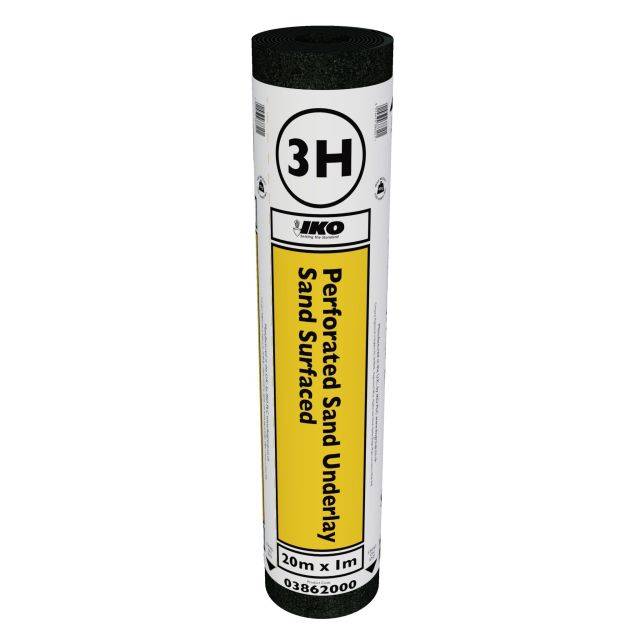

IKO Perforated Sand Underlay (3H)

IKO Perforated Sand Underlay (3H)

IKO PLC Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Perforated venting bituminous underlay, sand finished on both surfaces.

Jump to:
+44 (0)1257 255 771 www.ikogroup.co.uk

Application

  • For use in flat roofing as a preparation layer.
  • Suitable for small commercial projects, and small–large domestic projects.

CE Marked.

Description

Perforated venting bituminous underlay. This product is loose laid to provide an economical, controlled partial bond to a substrate, when the subsequent layer is fully bonded in hot bitumen.

Features and benefits:

  • Glass fibre base coated with oxidized bitumen.
  • Sand finished on both sides.
  • 25 mm-diameter perforations positioned at approximately 75–85 mm apart throughout the roll.

Applications:

  • For use in flat roofing as a preparation layer.
  • Suitable for small commercial projects, and small–large domestic projects.

CE Marked.

General information

Finish

Sand

Uniclass 2015

Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary

CAWS

J41/10 Built-up reinforced bitumen membrane warm deck roof covering

J41/110 Built-up reinforced bitumen membrane warm deck roof covering

J41/115 Single layer reinforced bitumen membrane warm deck roof covering

J41/12 Built-up reinforced bitumen membrane cold deck roof covering

J41/120 Built-up reinforced bitumen membrane inverted roof covering

J41/125 Single layer reinforced bitumen membrane inverted roof covering

J41/130 Built-up reinforced bitumen membrane cold deck roof covering

J41/135 Single layer reinforced bitumen membrane cold deck roof covering

Product range

Preparation

Specification data - Reinforced bitumen roofing sheets

Product Reference

IKO Perforated Sand Underlay (3H), 03862000

Standard product features

Size (per roll):

  • Length: 20 m.
  • Width: 1 m.

Colour:

Black.

Finish:

Sand.

Weight:

1.7 kg/m² (34.5 kg per roll).

Technical characteristics:

  • Membrane carrier: Glass fibre.
  • Membrane modifier: Oxidized bitumen.

Third party certifications

  • CE Marked: 2797-CPD-537586
