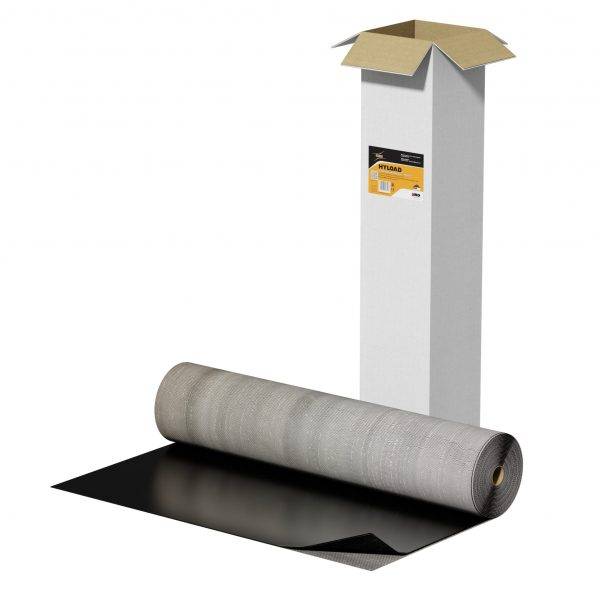

IKO Hyload Tanking Membrane 2000SA - Structural Waterproofing - Cold applied self adhesive membrane
Verified by manufacturer 6 months ago
BBA Agrément Certificate
Certificate type
Cold-applied, self-adhesive, modified bitumen waterproofing membrane.
Application
IKO Hyload Tanking Membrane 2000SA can be used as a fully bonded Damp Proofing Membrane and as Type A barrier membrane protection within a structural waterproofing system designed to be compliant with the guidance of BS8102:2022.
Description
IKO Hyload Tanking Membrane 2000SA is a self-adhesive modified bitumen sheet material. It can be used as a fully bonded Damp Proofing Membrane and as Type A barrier membrane protection within a structural waterproofing system designed to be compliant with the guidance of BS8102:2022.
Key benefits to your project
- Robust and durable – the product’s combination of polymer-modified bitumen on a polyethylene carrier makes it a tough and durable material choice.
- Ease of use – the product is cold applied and does not use specialist tanking equipment, making it a cost-effective, low labour application.
- Multi-purpose – the product has multiple uses within the damp proofing and structural waterproofing arena.
- BBA-approved (Certificate No. 98/3479).
General information
Color | Black |
Material | Bitumen High density polyethylene (HDPE) |
Shape | Rectangle |
Length | 15000 mm |
Width | 1000 mm |
Height | 1.5 mm |
Uniclass | |
CAWS | J40/45 Self-adhesive bitumen gas retardant damp proofing/ tanking J40/180 Self-adhesive bitumen membranes J40/250 Fully bonded bitumen tanking membranes J40/260 Fully bonded bitumen damp-proofing/ tanking membranes J40/40 Self-adhesive bitumen membranes |
Product range |
Specification data - Bitumen sheets
Standard | To BS 8102: 2009. |
Third-party certification | Declaration of Performance Certificate and is assessed under the above Harmonized Standard. |
Form | Damp-proof membrane. |
Material | |
Carrier material | High-density polyethylene (HDPE). |
Bitumen modification | Adhesive-modified bitumen. |
Thickness (minimum) | 1.5 mm. |
Composition | A combination of a high-density polyethylene (HDPE) film and modified self-adhesive bitumen compound. |
Reaction to fire | To EN 13501, F. |
Tensile force property | To EN 12311-2, Machine direction, Cross direction (MD/CD) ≥2.5 N. |
Elongation at break | To EN 12311-1; EN 13859-1;2, MD/CD ≥130%. |
Impact resistance | To EN 12691, ≥ 500 mm. |
Joint strength | To EN 12317-2, ≥ 30 N. |
Sustainability data
Material | Bitumen High density polyethylene (HDPE) |
Third party certifications
BBA Agrément Certificate
BBA Certificate 98 3479 - IKO Hyload Tanking Membrane 2000SA
Literature
Technical Data Sheet (TDS) - IKO Hyload Tanking Membrane 2000SA
System Guidance - IKO Hyload SA Waterproofing
Brochure - IKO PLC (UK) ESG Report
