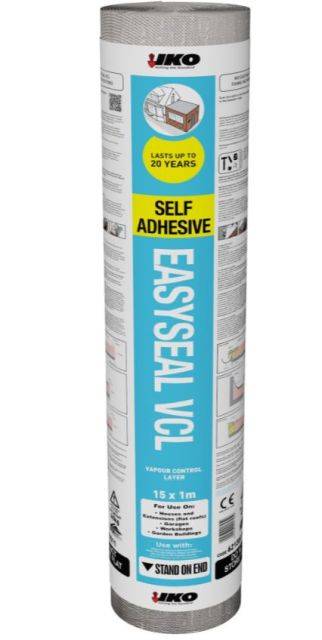

IKO Easyseal Self-Adhesive VCL

IKO Easyseal Self-Adhesive VCL

IKO PLC Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

Modified bitumen vapour control layer (VCL) with a polyester reinforced aluminium core, for flat roof constructions.

Jump to:
+44 (0)1257 255 771 www.ikogroup.co.uk

Application

For small commercial and all domestic projects. To act as a vapour control layer within a warm roof build up within a flat roof construction, for example on garages, dormer windows, porches and extensions to habitable buildings.

Description

A high-performance vapour control layer (VCL) composed of a polyester reinforced aluminium core, coated with a rubber modified, self-adhesive bitumen coating. The membrane is protected on the underside with a release film backing and coated on the top surface with a fine mineral finish.

Features and benefits:

  • Self-adhesive coating - no gas torches required.
  • Aluminium core - provides increased resistance to the passage and penetration of water vapour.
  • High tensile polyester base - robust carrier material.
  • Poly (styrene-butadiene-styrene) (SBS) modification - low temperature flexibility.
  • Life expectancy of 20 years.
  • CE marked and BBA certified.

Applications:

For small commercial and all domestic projects. To act as a vapour control layer within a warm roof build up within a flat roof construction, for example on garages, dormer windows, porches and extensions to habitable buildings.

General information

Material

Modified bitumen with aluminium core

Uniclass 2015

Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary

CAWS

J41/395 Air and vapour control layer

Product range

VCL

Specification data - Reinforced bitumen roofing sheets

Product Reference

IKO Easyseal Self-Adhesive VCL

Standard product features

Material:

Modified bitumen with aluminium core.

Carrier:

Polyester.

Top surface:

Fine mineral.

Roll size (w x l):

1 x 15 m.

Weight:

2.4 kg/m².

Technical characteristics:

  • Water vapour resistance Sd value: 2436 m.
  • Water tightness (to BS EN 1928): 50 kPa.
  • Maximum tensile force (to BS EN 12311-1): Longitudinal: ≥650; transverse: ≥500.
  • Elongation (EN 12311-1): Longitudinal: ≥30; transverse: ≥35.
  • Resistance to Tearing (EN 12310-1): Longitudinal: ≥250; transverse: ≥300.
  • Flexibility at low temperature (to BS EN 1296): ≤-10°C.

Third party certifications

  • Certified : 02/3916
  • CE Declaration of Performance : 0086-CPD-13970-13VCL
