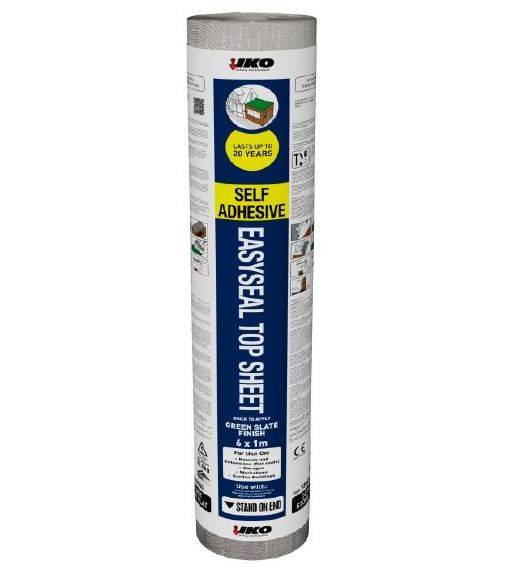

IKO Easyseal Self-Adhesive Sheet

IKO Easyseal Self-Adhesive Sheet

IKO PLC Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Top sheet with a high performance polyester base, coated with styrene-butadiene-styrene (SBS) modified bitumen.

Jump to:
+44 (0)1257 255 771 www.ikogroup.co.uk

Application

  • Suitable for use a cap sheet within the IKO Easyseal built-up or inverted flat roof system.
  • Suitable for warm and cold roofs.

Description

Top sheet with a high performance polyester base, coated with styrene-butadiene-styrene (SBS) modified bitumen. The upper surface is finished with a slate mineral. The underside is protected by a release film, which is removed during installation.

Features and benefits:

  • Fire safe – no naked flames used during installation.
  • High strength – tough, polyester-based cap sheet.
  • High flexibility – elastomeric bitumen coating.
  • 15-year material guarantee.
  • CE Marked.

Applications:

  • Suitable for use a cap sheet within the IKO Easyseal built-up or inverted flat roof system.
  • Suitable for warm and cold roofs.

General information

Uniclass 2015

Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary

CAWS

J41/10 Built-up reinforced bitumen membrane warm deck roof covering

J41/110 Built-up reinforced bitumen membrane warm deck roof covering

J41/12 Built-up reinforced bitumen membrane cold deck roof covering

J41/120 Built-up reinforced bitumen membrane inverted roof covering

J41/130 Built-up reinforced bitumen membrane cold deck roof covering

Product range

Cap Sheets

Specification data - Reinforced bitumen roofing sheets

Product Reference

IKO Easyseal Self-Adhesive Sheet, 73040000

Standard product features

Size (per roll):

  • Length: 6 m.
  • Width: 1 m.

Weight:

3.2 kg/m² (19.2 kg per roll).

Technical characteristics:

  • Composition: SBS modified bitumen.
  • Colour: Green slate.
  • Carrier: Polyester.
  • Water tightness (to EN 1928): Pass.
  • Maximum tensile force (to EN 12311-1): Longitudinal/ transverse: ≥400 N/50mm.
  • Elongation (to EN 12311-1): Longitudinal/ transverse: ≥18%.
  • Resistance to static loading (to EN 12730 (A)): 20 kg.
  • Resistance to tearing (to EN 12310-1): Longitudinal/ transverse: ≥160 N.
  • Flexibility at low temperature (to EN 1296): Upper/ lower: ≤-10°C.

Third party certifications

  • CE Marked: Certificate: 0086-CPD-537586
