IKO Armourshield Hexagonal Shingles

IKO Armourshield Hexagonal Shingles

IKO PLC Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

A lightweight, glass fibre based bitumen roofing shingle.

Jump to:
+44 (0)1257 255 771 www.ikogroup.co.uk
Application

For use within small commercial or all sizes of domestic projects. IKO Armourshield Hexagonal Shingles can be used on a wide variety of non-habitable garden buildings. Must be installed over IKO Glass Fibre Underlay in all situations - consult manufacturer for details.

Description

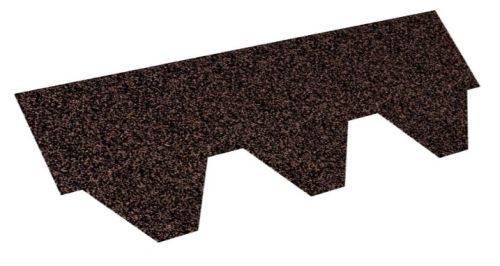

Lightweight, glass fibre based bitumen strips, installed to give the appearance of a highly decorative hexagonal tiled roof finish. The product is a traditional roof covering material for boarded pitched roofs between 15–85°. For mechanical fixing.

IKO has a range of essential system components, specifically tailored to facilitate the use of the IKO Slate system within pitched roofing. The following represents the system components available as part of that range:

  • IKO Armourvent Multi/ Multi Plus - A profiled ventilation strip for use at the ridge position in a ventilated pitched roof arrangement.
  • IKO Flash (available separately) - A lead-free flashing system, which is a mixture of modified bitumen and additives reinforced with an aluminium mesh.
  • IKO Glass Fibre Underlay (available separately) - A waterproofing membrane, consisting of a 60 g/m² glass fibre base coated with oxidised bitumen. It is sand finished on both surfaces.
  • IKOpro HP (High Performance) Felt Lap Adhesive - A cold-applied bitumen adhesive which enables bonding of roofing felt laps.

Features and benefits:

  • Weather resistant - acts as the primary waterproofing layer within a boarded pitched roof arrangement.
  • Robust - has a life expectancy of ten years (maximum).
  • Will not rot.
  • Available in a choice of colours.
  • Easy to install.
  • Has a high flexibility at low temperatures.
  • UV resistant.
  • Tried and tested - complies with Class 1 EN 544 bitumen shingles with mineral and/ or synthetic reinforcements; Specification and test methods.
  • CE marked.

Applications:

For use within small commercial or all sizes of domestic projects. IKO Armourshield Hexagonal Shingles can be used on a wide variety of non-habitable garden buildings. Must be installed over IKO Glass Fibre Underlay in all situations - consult manufacturer for details.

General information

Uniclass 2015

Pr_25_93_72_08 Bitumen membrane shinglesPrimary

CAWS

J41/10 Built-up reinforced bitumen membrane warm deck roof covering

J41/110 Built-up reinforced bitumen membrane warm deck roof covering

J41/115 Single layer reinforced bitumen membrane warm deck roof covering

J41/12 Built-up reinforced bitumen membrane cold deck roof covering

J41/120 Built-up reinforced bitumen membrane inverted roof covering

J41/125 Single layer reinforced bitumen membrane inverted roof covering

J41/130 Built-up reinforced bitumen membrane cold deck roof covering

J41/135 Single layer reinforced bitumen membrane cold deck roof covering

Specification data - Bitumen membrane shingles

Product Reference

IKO Armourshield Hexagonal Shingles

Colour

Amazon green

Black

Dual brown ultra

Forest green ultra

Granite grey

Tile red ultra

Accessories

None

IKO Armourvent Multi

IKO Armourvent Multi Plus

IKOpro HP (High Performance) Felt Lap Adhesive

Standard product features

Length:

1000 mm.

Strip width:

318 mm.

Technical characteristics:

  • Composition: Bitumen.
  • Form: Strip.
  • Carrier: Glass fibre.
  • Pack weight: 28.5 kg.
  • Tabs per strip: Three.
  • Nominal thickness: 4 mm.
  • Pack coverage: 3 m².
  • Tensile strength (width): ≥600 N/50 mm.
  • Tensile strength (height): ≥400 N/50 mm.
  • Nail shank tear resistance: ≥100 N.
  • Reaction to fire: E.
  • Water permeability: Bitumen ≥1300 g/m².
  • Finish adhesion: 2.5 g.
  • Water absorption: <2%.

Third party certifications
  • CE Marked: Certificate: 00602-CPR-SH1-001
