IKO APP T-O Cap Sheet

IKO APP T-O Cap Sheet

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

IKO PLC

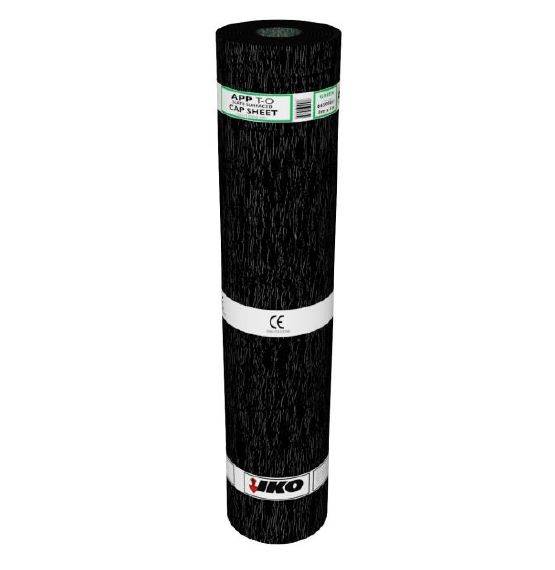

Glass fibre-based, mineral surfaced torch-on cap sheet.

Jump to:
+44 (0)1257 255 771 www.ikogroup.co.uk
Application

  • Suitable for flat, sloping or vertical installation in warm or cold roofs.
  • Should be used as the cap sheet within a two- or three-layer, built-up or inverted roofing application.

Description

Glass fibre-based, mineral surfaced torch-on cap sheet. Atactic polypropylene (APP) modification is added to the bitumen, allowing the product to cope with higher temperatures without softening.

Features and benefits:

  • APP modification results in a higher softening point, reducing foot marking issues.
  • Ten-year material guarantee.
  • CE Marked.

Applications:

  • Suitable for flat, sloping or vertical installation in warm or cold roofs.
  • Should be used as the cap sheet within a two- or three-layer, built-up or inverted roofing application.

General information
Uniclass 2015
Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary
CAWS

J41/10 Built-up reinforced bitumen membrane warm deck roof covering

J41/110 Built-up reinforced bitumen membrane warm deck roof covering

J41/12 Built-up reinforced bitumen membrane cold deck roof covering

J41/120 Built-up reinforced bitumen membrane inverted roof covering

J41/130 Built-up reinforced bitumen membrane cold deck roof covering

Specification data - Reinforced bitumen roofing sheets
Product Reference

IKO APP T-O Cap Sheet, 64500011

Standard product features

Size (per roll):

  • Length: 8 m.
  • Width: 1 m.

Weight:

4.12 kg/m² (33 kg per roll).

Technical characteristics:

  • Composition: APP bitumen.
  • Colour (surface): Green.
  • Carrier: Glass fibre.
  • External fire performance (to EN 13501-5): F-roof(t4).
  • Reaction to fire (to EN 13501-1): F.
  • Water tightness (to EN 1928): Pass.
  • Maximum tensile force (to EN 12311-1): Longitudinal: ≥300 N/50 mm; Transverse: ≥200 N/50 mm.
  • Elongation (to EN 12311-1): Longitudinal/ transverse: ≥2%.
  • Resistance to tearing (to EN 12310-1): Longitudinal/ transverse: ≥70 N.
  • Flexibility at low temperature (to EN 1109): Upper/ lower: ≤-5°C.

Third party certifications
  • CE Marked: Certificate: 0086-CPD-537586
Similar products from IKO PLC
