iDecking Easy Click

iDecking Easy Click

Wallbarn Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Seamless integrated decking system with rail substructure and deckboard. No top fixings and expansion proof.

Jump to:
+44 (0)20 8916 2222 www.wallbarn.com

Application

Suitable for pool decking, terraces, pathways, podium decks, sports areas, flat roofs, balconies, areas compatible with composite and wood decking.

Suitable for cladding, fences and gates.

Description

EasyClick is a full substructure and deckboard designed to offer the quickest, easiest and blemish-free way to install superior decking systems. EasyClick is available for DURO 2.0 composite decking, tropical hardwood, thermo bamboo and the premium Bamboo Elegance deckboard.

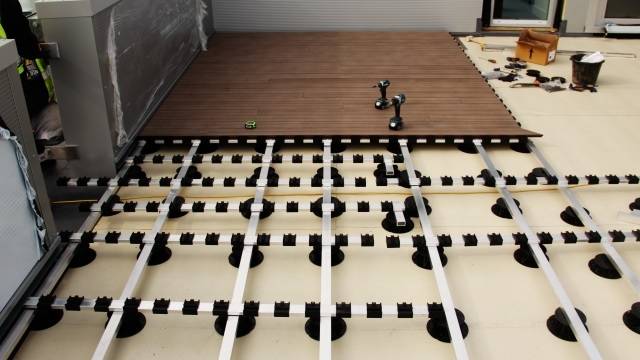

The system is quickly installed simply by foot. The system is comprised of an aluminium under structure rail system which is supplied pre-installed and pre-spaced with black nylon clips. The decking boards have grooves extruded into the underside and edges so that installation is carried out by simply pressing the boards into place by foot and lock in place. There is no need for hidden fixings, timber joist frames, screws or clips. Bamboo Elegance is the premium quality, ultra-hard bamboo fibre decking material with a 25-year performance warranty. It has an attractive, aged grey appearance and superior UV resistance. Bamboo Elegance is manufactured with a patented heat treatment.



Bamboo Elegance is manufactured with a patented heat treatment which produces a high density decking board. An additional process gives it an improved finish and exceptional hardness and dimensional stability. It has superior resistance to UV and weathering, is highly resistant to water absorption, has fire resistance of Euroclass B1 fire – Bf1-s1 (DIN EN 13501-1:2010).


Bamboo Elegance is a truly sustainable decking product with low impact on the environment in terms of production and a far longer life span than timber decking materials. DURO 2.0 composite decking is available. DURO 2.0 is manufactured to be resistant to moisture ingress. The compound is coloured before extrusion, which helps to guarantee colour uniformity and grain consistency all the way through each board. The decking boards colour is much more resistant to scratches and fading if compared to stained finishes.



Features and benefits:

  • Decking installation up to five times faster than traditional deck building.
  • Boards require zero screws, nails or other fasteners.
  • Drastic reduction of installation errors.
  • Integral clips mean upper surface of decking boards are unblemished.
  • Integral clips are runner-shaped rather than have one mechanical fixing point so boards can move on clips without rupturing.
  • Expansion-proof - slider shaped clips will not be pulled out over time.
  • Expansion-proof - iJack connecting bracket prevents boards touching and buckling.
  • Will not absorb water or mildew and turn green or black.
  • Increased structural integrity and strength.
  • Self-blocking and self-aligning system.

General information

Finish

Textured

Ridged

Material

Ipe

Teak

Bamboo

Composite

Size

90 x 25 mm

140 x 25 mm

120 x 19 mm

140 x 20 x 1850 mm

140 x 25 x 2800 mm

Show more

WarrantyDescription

15 years

Limited warranty; consult manufacturer for details.

Uniclass 2015

Ss_30_20_30_25 Decking systemsPrimary

CAWS

J21/467 Support system for precast concrete paving slabs

J21/85 Precast concrete paving slabs

J31/375 Paving tiles

J31/377 Support system for paving slabs or tiles

J31/80 Precast concrete paving slabs

J41/467 Support system for precast concrete paving slabs

J41/90 Precast concrete paving slabs

J42/467 Support system for precast concrete paving slabs

Q50/25 Timber deck

Q55/110 Deck

Q55/395 Support pedestals

Specification data - Decking systems Enhanced data

Ground preparation

Solid structural subdeck.

Barrier membrane

Protection membrane.

Pedestal separation.

Structure

-

Primary structure

Concrete.

Rigid insulation.

Solid framework, aluminium.

Solid framework, timber.

Waterproofed membrane.

Subframe

Step profile: Can also be used as a termination bar. Clicks into either A or B rails.

A rail.

Aluminium rail with connection clip, 62 x 21 x 2070 mm. Used for single-direction decking and attaching step profiles.

B rail.

Aluminium rail with connection clip for 90° changes of direction, 62 x 21 x 2070 mm. Used for variable-direction decking and attaching step profiles.

Wallbarn Blank Aluminium Rail.

Aluminium rail 25 x 60 mm or 50 mm x 60 mm to fit into CLICK HEAD version of Megapad or Minipad - see Aluminium Rail and Pedestal System for Decking section (specified separately).

Fasteners

integrated EasyClick clips mounted on rails.

Deck boards

-

Material

Duro 2.0, Denim.

Weight tolerance (when aluminium joists are set a maximum of 400 mm apart): 600 kg/m².

Slip resistance according to EN 15534-4: 60 µ along the extrusion, 58 µ perpendicular to the extrusion.


  • Available in five colours, most are finished with a wood grain effect.
  • 100% recyclable product.
  • UV resistant. Weather and waterproof.


Duro 2.0, Helmut Grey.

Weight tolerance (when aluminium joists are set a maximum of 400 mm apart): 600 kg/m².

Slip resistance according to EN 15534-4: 60 µ along the extrusion, 58 µ perpendicular to the extrusion.


  • Available in five colours, most are finished with a wood grain effect.
  • 100% recyclable product.
  • UV resistant. Weather and waterproof.


Duro 2.0, Teak.

Weight tolerance (when aluminium joists are set a maximum of 400 mm apart): 600 kg/m².

Slip resistance according to EN 15534-4: 60 µ along the extrusion, 58 µ perpendicular to the extrusion.


  • Available in five colours, most are finished with a wood grain effect.
  • 100% recyclable product.
  • UV resistant. Weather and waterproof.


Duro 2.0, Terra.

Weight tolerance (when aluminium joists are set a maximum of 400 mm apart): 600 kg/m².

Slip resistance according to EN 15534-4: 60 µ along the extrusion, 58 µ perpendicular to the extrusion.


  • Available in five colours, most are finished with a wood grain effect.
  • 100% recyclable product.
  • UV resistant. Weather and waterproof.


Duro 2.0, Burma.

Weight tolerance (when aluminium joists are set a maximum of 400 mm apart): 600 kg/m².

Slip resistance according to EN 15534-4: 60 µ along the extrusion, 58 µ perpendicular to the extrusion.


  • Available in five colours, most are finished with a wood grain effect.
  • 100% recyclable product.
  • UV resistant. Weather and waterproof.


Hardwood, Ipe 140.

  • Size: 140 x 25 mm.
  • The Ipè deck board has a colour that ranges from brown to olive green. It is ideal for decking and can be used for small, medium or large floors, subjected to low or high levels of foot traffic, in private, residential, commercial and public structures alike.
  • It is suitable for use as cladding for buildings. It has extremely high moisture and insect resistance. Class A fire rating. When exposed to sunlight and adverse weather conditions, the wood tends to turn grey.

Hardwood, Thermo bamboo, anti-slip surface.

  • Size: 140 x 20 x 1850 mm.
  • 100% bamboo decking. CE and FSC environmentally certified product. Using a deep carbonization process the Thermo decking exceeds strength, stability and durability performance.
  • Natural aging and patina, insect and termite proof, flame retardant (class 1).

Hardwood, Ipe 90.

  • Size: 90 x 25 mm.
  • The Ipè deck board has a colour that ranges from brown to olive green. It is ideal for decking and can be used for small, medium or large floors, subjected to low or high levels of foot traffic, in private, residential, commercial and public structures alike.
  • It is suitable for use as cladding for buildings. It has extremely high moisture and insect resistance. Class A fire rating. When exposed to sunlight and adverse weather conditions, the wood tends to turn grey.

Hardwood, Thermo bamboo, flat surface.

  • Size: 140 x 20 x 1850 mm.
  • 100% bamboo decking. CE and FSC environmentally certified product. Using a deep carbonization process the Thermo decking exceeds strength, stability and durability performance.
  • Natural aging and patina, insect and termite proof, flame retardant (class 1).

Fasteners

Manufacturer's standard.

Board accessories

Not required.

Framing pieces.

Step profiles, 59 x 52 x 2800 mm.

Product Reference

iDecking EasyClick

Profile

Flexible, 10 x 95 x 2200 mm.

Solid, 25 x 70 x 2200 mm.

Configurations

Lateral double rail understructure.

Requires Aluminium Joist - PLAIN - 30 x 50 x 2500 mm.

Single-direction decking.

Requires A rail understructure.

Variable-direction decking.

Requires A and B rail understructure.

When fixing onto Wallbarn pedestals.

Requires understructure plus lateral blank rail.

When mechanically fixing to structural base/ battens.

Requires understructure only.

Fixing

To suit profile.

Flexible: rails with clips are attached to blank rails and pedestals.

Solid: rails with clips are mechanically fixed to the frame.

Environmental information

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

United Kingdom

Recyclability

Recyclable

Recycled content

75

Digital objects

Platform Compatible Version Certified to
IFC
-

5

2.1
Revit
-

5

2.1
Download now from NBS National BIM Library

Third party certifications

  • FSC® Certified: SGS-COC-007242X - supplier of FSC 100% timber decking
