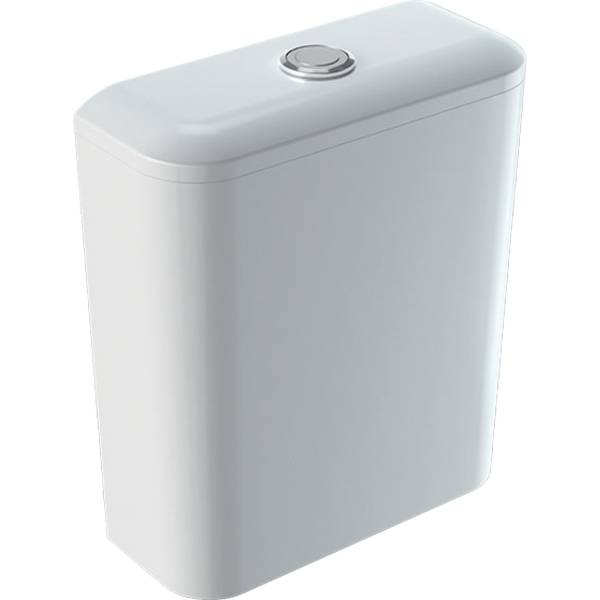

iCon Square exposed cistern, close-coupled, dual flush, bottom water supply connection

Application

  • For water supply connections 1/2''.
  • For close-coupled installation.


Description

Exposed cistern.


Features and benefits:

  • Dual flush.
  • Type 1, full flush volume 6 L, in accordance with EN 997.
  • Water supply connection on the bottom right.

General information

Color

White

Material

Vitreous china

Length

145 mm

Width

375 mm

Height

425 mm

Uniclass

Pr_40_20_93_89 WC cisternsPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC cisterns

Standard

To BS EN 14055, Class 2.

Operation

Push-button.

Materials

-

Body

Vitreous china to BS 3402.

Finish and colour

White.

Capacity

6/4 L dual flush.

Water supply, overflow and outlet holes

-

Outlet

Bottom outlet.
