IAE Trailer Leg Landing Plate
Verified by manufacturer 22 days ago
Type 1 - Flushfix
Type 1 - Flushfix
ISO 9001 Quality Management
Certificate type
Steel trailer leg landing plates
Application
Suitable for surface fixing or root fixing to floors in applications where trailers are used.
Description
The trailer leg landing plates are designed to protect wear from trailer leg plates on concrete yard slabs. They are available in three types.
Features and benefits:
- Hard wearing.
- High impact resistance.
- Protects wear.
- High visibility (type 3).
- Manufactured from steel or nylon plastic depending on the type.

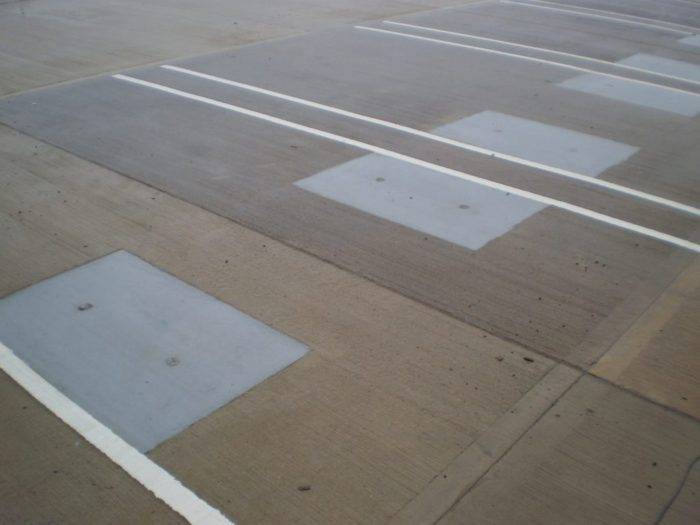

Type 1 - Flushflix: Hard wearing steel plate root fixed flush to the slab.

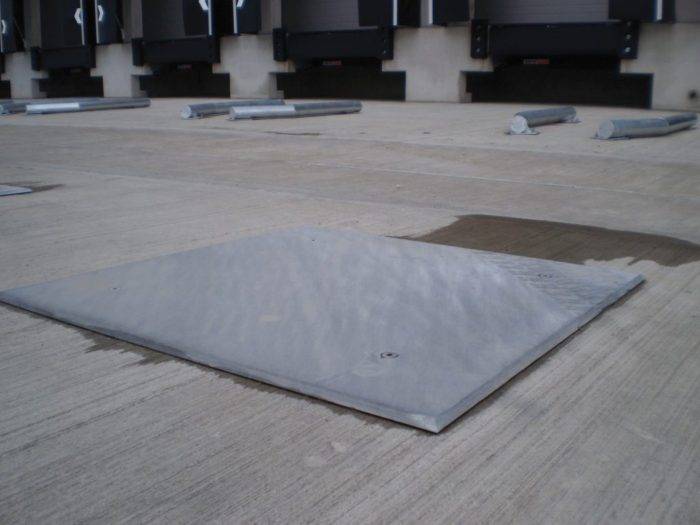

Type 2 - Surfacefix: Hard wearing steel plate, surface mounted with a bevelled edge.
Type 3 - Surfacefix: Hard wearing nylon plastic, surface mounted.
General information
Color | Grey Guidance for specification option: Type 1 and type 2 - steel. Yellow Guidance for specification option: Type 3. |
Finish | Galvanized Guidance for specification option: Type 2. |
Material | Steel Guidance for specification option: Type 1 and type 2. Nylon Guidance for specification option: Type 3 (nylon plastic). |
Shape | Square |
Length | 1000 mm |
Width | 1000 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | Q55/370 Composite sections Q55/355 Structural steel |
Specification data - Special composite paving units
Size | 1000 x 1000 mm. |
Material | Steel. |
Colour | Standard. |
Fixing | Root fixed. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Turkey |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.16 kg CO₂ eq/kg Self declared |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
