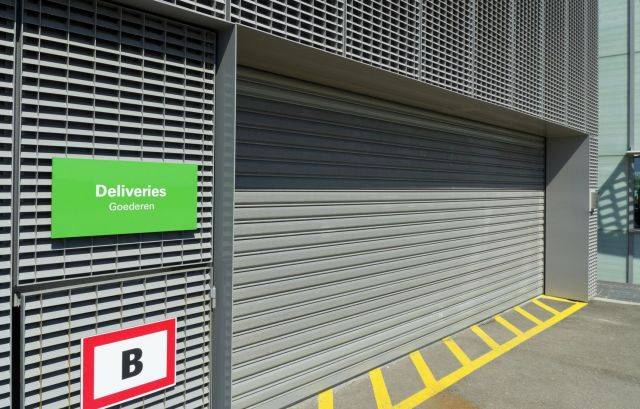

i100 Steel Security Shutter
Application

Windows, doors and openings in commercial uses.

Description

Double skinned steel security roller shutter with 100 mm high slats, suitable for high security commercial sites requiring large aperture coverage. The shutter can span up to 12 m in width and an area up to 50 m².

Applications:

Windows, doors and openings in commercial uses.

General information

Size

As drawing

Available up to 12000 x 5000 mm (w x h).

Uniclass 2015

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Specification data - Roller shutters

Product Reference

i100 Steel Security Shutter

Size

As drawing

Available up to 12000 x 5000 mm (w x h).

Arrangement

Vertical, external face fix

Vertical, internal face fix

Vertical, reveal fix

Operation

GfA three phase motor with push button control

NRG Econom tubular motor with internal rocker or external key switch

Finish/ Colour

-

Slats

Galvanized

Standard.

Plastisol coated, BS

Insert colour requirement.

Plastisol coated, RAL

Insert colour requirement.

Polyester powder coated, BS

Insert colour requirement.

Polyester powder coated, RAL

Insert colour requirement.

Enclosure

Galvanized

Standard.

Plastisol coated, BS

Insert colour requirement.

Plastisol coated, RAL

Insert colour requirement.

Polyester powder coated, BS

Insert colour requirement.

Polyester powder coated, RAL

Insert colour requirement.

Guide channels

Galvanized

Standard.

Plastisol coated, BS

Insert colour requirement.

Plastisol coated, RAL

Insert colour requirement.

Polyester powder coated, BS

Insert colour requirement.

Polyester powder coated, RAL

Insert colour requirement.

Bottom slat

Galvanized

Standard.

Plastisol coated, BS

Insert colour requirement.

Plastisol coated, RAL

Insert colour requirement.

Polyester powder coated, BS

Insert colour requirement.

Polyester powder coated, RAL

Insert colour requirement.

Accessories

None

Crank handle

Manual override facility

Standard product features

Weight:

16.5 kg/m².

Slats:

27 mm thick flat double skinned steel, 100 mm in height.

Enclosure:

Roll formed steel with end plates.

Guide channels:

85 mm deep steel with brush weather seals.

Bottom slat:

Steel with brush weather seals.

Product Options

Enclosure size (internal face fix):

Dependent on height.

  • <2600 mm: 400 mm.
  • 2600–3500 mm: 450 mm.
  • 3600–5000 mm: 600 mm.

Operation:

Numerous control option variants such as group, remote or mobile phone activation are available.
