Verified by manufacturer 2 months ago
Secured By Design
Certificate type
QA Certificate
Certificate type

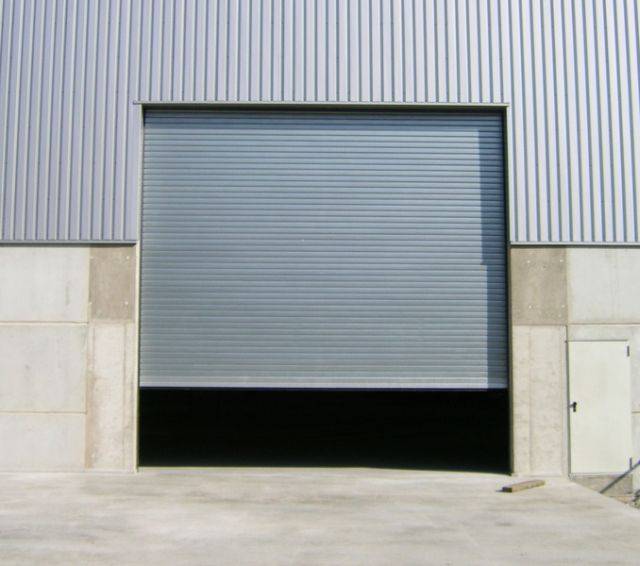

LPCB SR4 insurance approved steel security roller shutter with 81 mm high slats.
Suitable for high security commercial sites where burglary resistance is a priority.
LPCB SR4 insurance approved double skinned steel security roller shutter with 81 mm high slats.
Features and benefits:
ColorGalvanized finish as standard. Option to powder coat any RAL / BS colour (surcharge applies). Consult manufacturer and insert requirements. | - |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Product range |
Opening sizesEnclosure size (internal face fix): Dependent on height.
| 3000 x 5000 mm.Available up to 3000 x 5000 mm (w x h). 4m² (tubular) or 35m² (outboard). |
Arrangement | Vertical, external face fix.Vertical, internal face fix.Vertical, reveal fix. |
Shutter curtain. | - |
Lath material | 22 mm thick flat double skinned steel, 100 mm in height. Bottom slat: Steel with brush weather seals. |
Profile | 81 mm. |
Finish and colour | Galvanized.Standard. Polyester powder coated, BS.Insert colour requirement. Polyester powder coated, RAL.Insert colour requirement. |
Frame and guides | - |
Material | Enclosure: Roll formed steel with end plates. Guide channels: 85 mm deep steel. |
Finish | Galvanized.Standard. Polyester powder coated, BS.Insert colour requirement. Polyester powder coated, RAL.Insert colour requirement. |
ColourGalvanized finish as standard. Option to powder coat any RAL/ BS colour (surcharge applies). | - |
Operation | - |
Mode | GfA three phase motor with push button control.NRG Economy tubular motor with internal rocker or external key switch. |
Control | Push button.Key switch. |
AccessoriesNumerous control option variants such as group, remote or mobile phone activation are available. | None.Crank handle.Manual override facility. |
Weight | 100 kg/m². |
Country of product manufacture | United Kingdom |
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
